Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | CHINA |
| Brand Name: | YUHONG |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008 |
| Model Number: | ASTM A182 F310 |
| Minimum Order Quantity: | 1 PC |
|---|---|
| Price: | 1-100000 USD |
| Packaging Details: | Ply-wooden Case /Iron Case/ Bundle with plastic Cap |
| Delivery Time: | 10-40 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1000 tons/month |
| Product: | Flanges | Material: | Stainless Steel |
|---|---|---|---|
| Standard: | ASTM A182 | Grade: | F310 |
| Process: | Forged, Drilling/Bending/Stamping, Casting, Heating Treament | Type: | Blind/ Threaded /Slip On /Socket Welded/ Welding Neck/ Lap Joint Flange |
| High Light: | F310 Stainless Steel Flanges,Forged Stainless Steel Flanges,ASTM A182 Stainless Steel Pipe Flange |
||

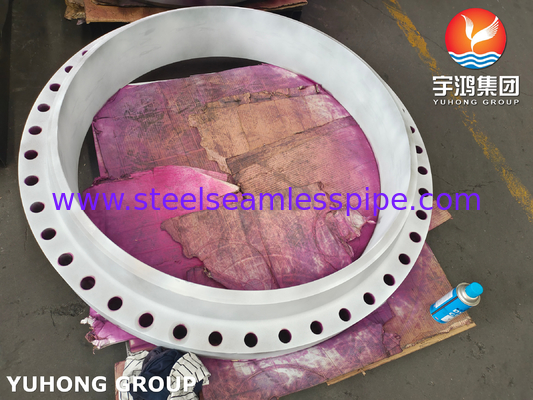

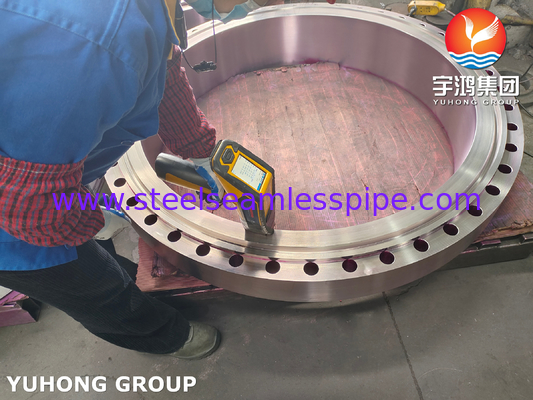

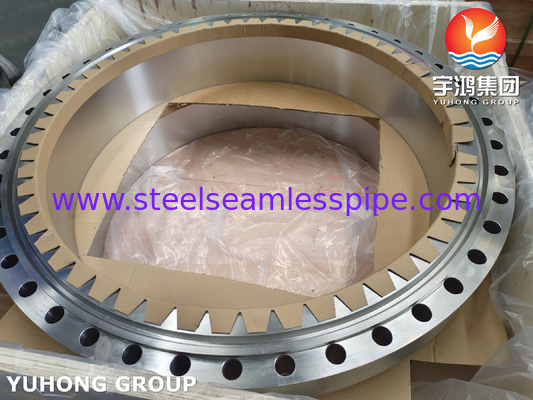

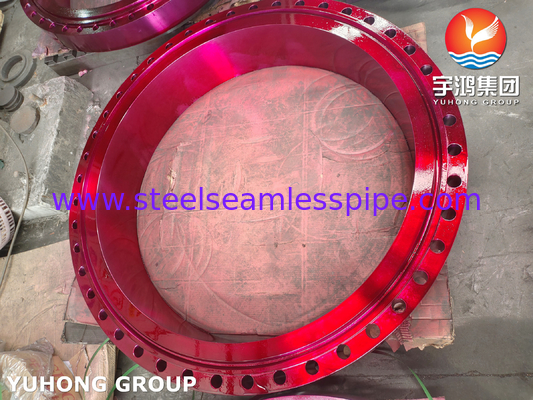

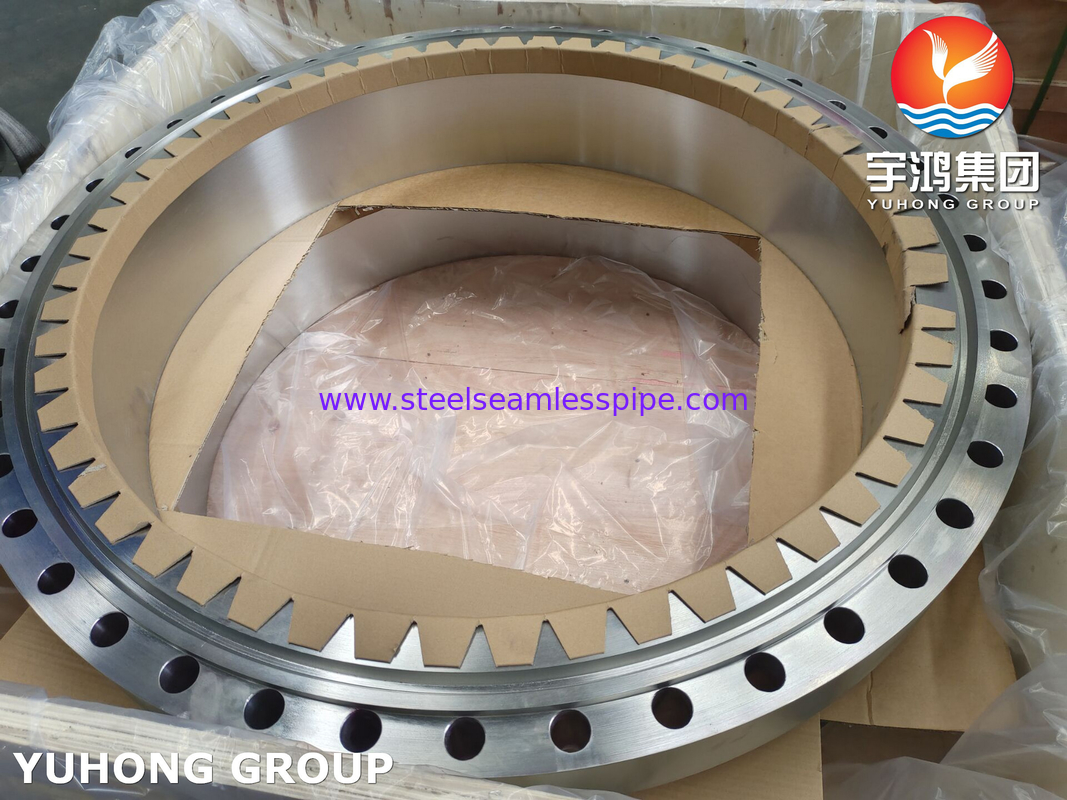

ASTM A182 F310 Stainless Steel Forged Flange Brida
YUHONG supplies ASTM A182 F310 Stainless Steel Flanges.
ASTM A182 this specification covers forged low alloy and stainless steel piping components for use in pressure systems.
F310 flanges have low magnetic permeability due to their chemical composition. This makes A182 F310 material the first choice for cryogenic applications. Besides,F310 blind flanges do not contain molybdenum and are therefore not recommended for applications with high pitting corrosion. However, they have a degree of corrosion resistance which makes them suitable for general condition applications.
Specification Of ASTM A182 F310
| Type | WN Flange, SO Flnage, SW Flange, Plate Flange, Blind Flange,etc |
| Standard | ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc. |
| Size | 1/2″ to 64″NB |
| Class / Pressure | 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc. |
| Flange Face Type | Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ) |
| Flange Delivery Condition | As Rolled, Normalizing Rolled, Thermomechanical Rolled / Formed, Normalizing Formed, Normalized and Tempered / Quenched and Tempered - BR / N / Q /T, Machined |
| Flange Dimension Standard | Standard - ANSI - ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, and ANSI B16.48 |
| Other Testing |
Manufacturer Test Certificate As Per EN10204 3.1, 3.2 / Laboratory Test Certificate From NABL Approved Lab. / Under Third Party Inspection Agency Like SGS, TUV, DNV, LLOYDS, ABS, Bureau of Indian Standards BIS Approved ETC |
| Flange Value Added Service | Draw / Expansion / Machining / Sand Blasting / Shot Blasting / Galavanizing / Heat Treatment |
| Coating Flanges Face |
Zinc Plated, Yellow Transparent, Anti-rust Paint, Cold and Hot Dip Galvanized, Oil Black Paint |
| Flange Packaging | Loose / Bundle / Wooden Pallet / Wooden Box / Plastic Cloth Wraps / Plastic End Caps / Beveled Protector |
Chemical Composition Of ASTM A182 F310
| ELEMENT | COMPOSITION (%) |
| Carbon | 0.25 max |
| Manganese | 2.00 max |
| Phosphorus | 0.045 max |
| Sulfur | 0.03 max |
| Silicon | 1.00 max |
| Nickel | 19.0-22.0 |
| Chromium | 24.0-26.0 |
Mechanical Properties Of ASTM A182 F310
| Grade | Density | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| F310 | 7.9 g/cm3 | MPa – 515 | MPa – 205 | 0.3 |
Applications
Paper Industry
Food Processing Industry
Chemical Industry
Natural Gas Industry
Oil And Gas Industry
Nuclear Power Plant
Cement Industry
Pipeline
