Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | China |
| Brand Name: | YUHONG |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015 |
| Model Number: | WP347H-S |
| Minimum Order Quantity: | 3 Pieces |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Ply-wooden Case, Pallet |
| Delivery Time: | 5 - 60 work days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | According to Clients' Requirement |
| Standard: | ASTM A403, ASME SA403 | Materail Grade: | WP347H-S |
|---|---|---|---|
| Size: | 1/2''- 48''(DN15-DN1200) | Thickness: | SCH10-XXS(2-60mm) |
| Product Name: | Stainless Steel Elbowss | Application: | Construction,Gas And Oil Pipes,Steam,Petroleum Gas Water, Etc. |

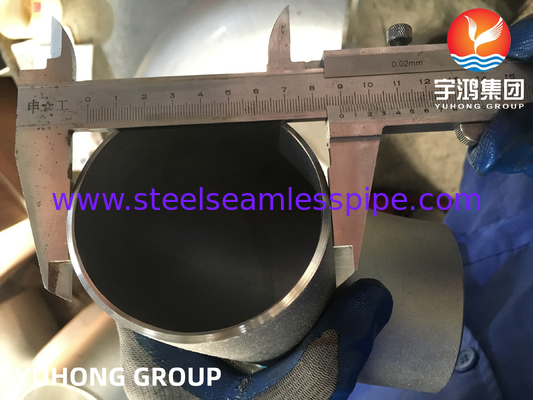

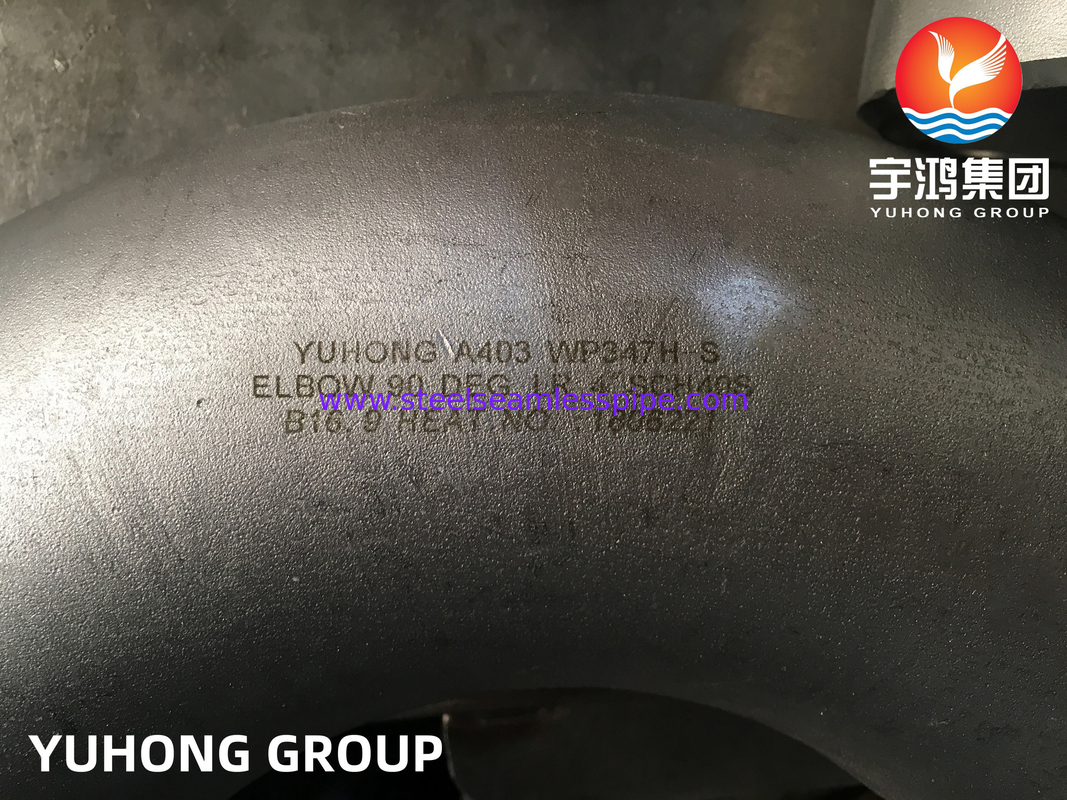

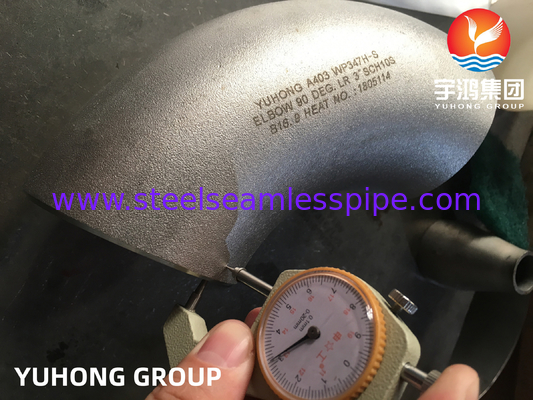

Stainless Steel Fittings ASTM A403 WP347H-S Butt Weld Seamless 90 Degree LR Elbow
ASTM A403 WP347H Stainless Steel Butt Weld Elbow contains higher chromium and low carbon content. Lower carbon means less chromium carbide precipitation due to welding. This steel contains as low as 0.03% of carbon content, which reduces its susceptibility to intergranular corrosion. This steel can also be continuously exposed to temperatures of about 1500°F without appreciable scaling.
Specifications:
| Standards | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43 |
| Specification | ASTM A403 / ASME SA403 |
| Size | ½” NB – 48” NB |
| Type | Seamless / ERW / Welded / Fabricated |
| Werkstoff Nr | 347 / 1.4550, 347H / 1.4961 |
Features:
Corrosion resistant
Sustain high pressure & temperature load
Rust proof finish
Ensure excellent stress distribution

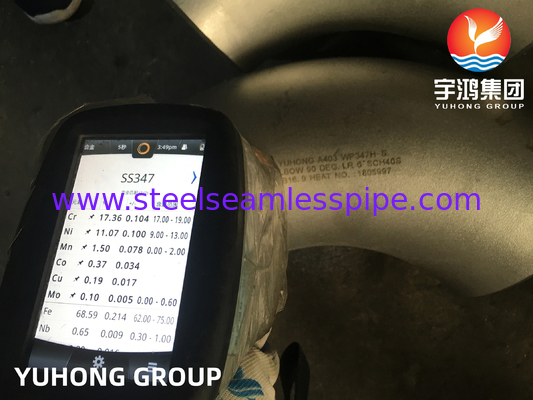

Chemical Composition:
| Chromium | 17-19 |
| Nickel | 9-13 |
| Carbon | 0.04-0.1 |
| Manganese | 2 |
| Phosphorus | 0.045 |
| Sulfur | 0.03 |
| Silicon | 0.75 |
| Columbium & Tantalum | 8 x (C + N) - 1 |
| Iron | Balance |
Mechanical Properties:
| Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | |
| Rockwell B (HR B) max | Brinell (HB) max | |||
| 515 | 205 | 40 | 95 | 217 |
Physical Properties:
| Density | Modulus of Elasticity in Tension | Melting Range | |
| g/cm3 | lb/in3 | ||
| 7.96 | 0.288 | 28 x 106 psi 193 GPa |
1398-1446°C 2550-2635°F |
Applications:
Petrochemical Industry
Oil and Gas Industry
Chemical Industry
Power Plant Industry
Pharmaceuticals Industry
Pulp & Paper Indusry
Food Processing Industry
Aerospace Industry
Refining Industry
