Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | CHINA |
| Brand Name: | YUHONG |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008 |
| Model Number: | ASTM A335 P9 Alloy Steel Studded Fin Pipe |
| Minimum Order Quantity: | 500KGS |
|---|---|
| Packaging Details: | Ply-wooden Case /Iron Case |
| Delivery Time: | 7 DAYS |
| Payment Terms: | L/C,T/T |
| Product Name: | Studded Fin Tube/Pipe | Tube Material: | Carbon Steel, Stainless Steel, Alloy Steel |
|---|---|---|---|
| Fin Material: | Carbon Steel Tube With Aluminium Spiral Fin | Type: | Welding, Studded |
| Tube OD: | 25mm To 219mm | Tube Length: | Can Customized |
| Fin Pitch: | 8mm To 30mm | Fin Height: | 5mm To 30mm |
| Fin Thickness: | φ5-20 | Unfinned Length: | As Customer's Request And Drawing |
| Pipe End: | Plain End, Beveled End | Application: | Air Cooler, Heat Exchanger, Vaporizer, Condenser |
| High Light: | ASTM A335 Alloy Steel Pipe,Alloy Steel Seamless Fin Pipe,Grade P9 Finned Tube |
||
ASTM A335 P9 Alloy Steel Studded Pipe Fin Tube Heat Exchanger Tube

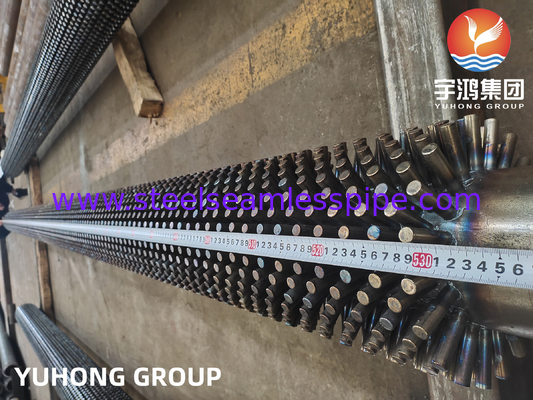

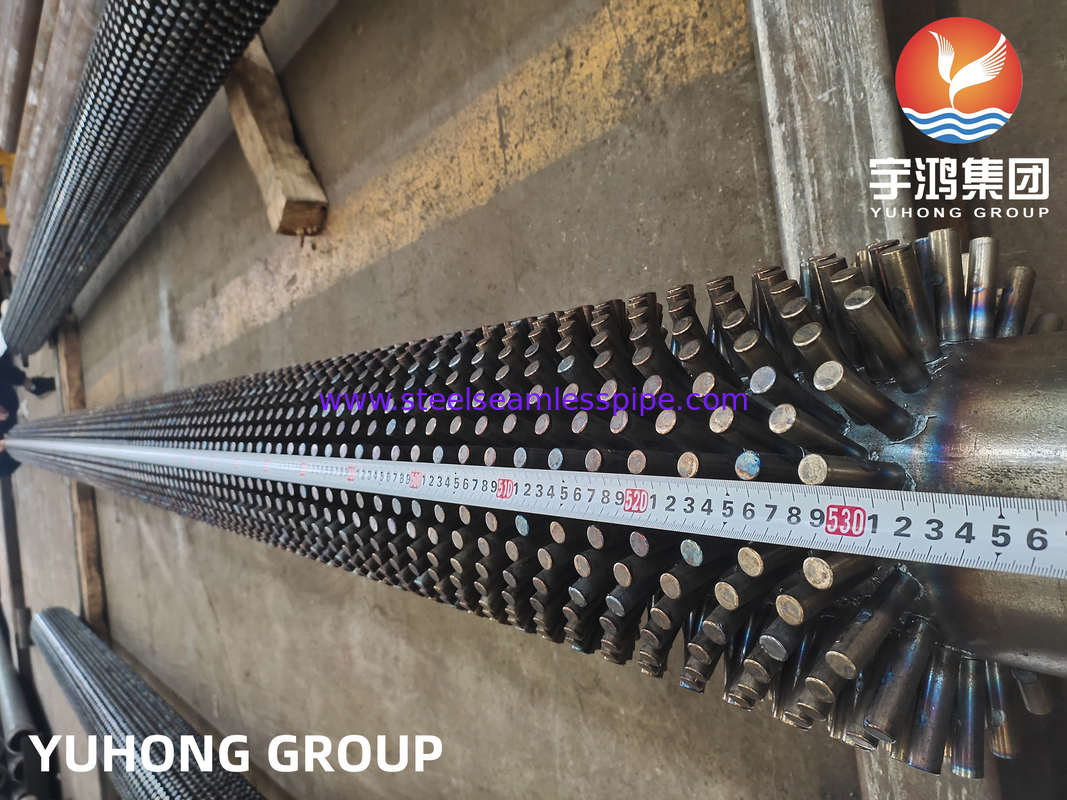

Studded Pipe also called studded tubes, Nailhead Pipe or stud Pipe. It is one type of High HFW / Frequency Welded fin tube. Studded pipes are used as an alternative to finned tubes in heat exchangers mainly in the petrochemical industry where the surface is exposed to particular corrosion and aggression by gasses and vapors. This type fin tube can improving heat transfer efficiency much more than bare tube. Because of their relatively thicker Cross-section as compared to fins, Studded pipe is one of the mechanically Strongest extended-surfaces Available.
Base pipe/tube material
Stainless steel: ASME SA213/ASTM A213, ASME SA249/A249 ,ASME SA312/A312: TP304,304L, TP304H, TP310S, TP310H, TP316L, TP316H, TP316Ti, TP317, TP317L, TP321,TP321H, TP347, TP347H, TP904L
Duplex/Super Duplex Steel: ASME SA789/A789 , ASME SA790/A790: S31803, S32205, S32750, S31500, S32304, S32900
Carbon Steel: ASME SA106/ASTM A106 Gr B, Gr C, ASME SA179/ASTM A179, ASME SA192/ASTM A192, ASTM A214, ASTM A210 Gr.A1
Alloy Steel: ASME SA213/ASTM A213 T1, T11, T12, T22, T23, T5, T9, T91, T92 ; ASME SA335 /ASTM A335 P1, P11, P12, P22, P23, P5, P9 , P91, P92 , 16Mo3, 15Mo3, 13CrMo-4, 12Cr1MoVG.
Nickel Alloy Steel Grade:Hestalloy:C-276, C-4, C-22, C-2000, X, B-2, B-3, G-30, G-35. Monel:400,401, 404, R-405, K500.
Inconel:600, 601, 617, 625, 690, 718, 740, X-750. Incoloy:800, 800H, 800HT, 825, 840.
Pure Nickel:Ni-200, Ni-201, Ni-270. NS Alloy:Ns 1101, NS1102, NS1103,NS3105. Copper Alloy Steel: ASTM B111(70400, C70600, C71500, C71640, C68700, C44300)
Fin material: Alloy Steel , Stainless Steel , Carbon Steel .
Stainless steel High Frequency Welded fins tube, carbon steel High Frequency Welded fins tube, Duplex High Frequency Welded fins tube Super Duplex High Frequency Welded fins tube, Air cooler fins tube, Air preheater fins tube. Extruded fins tube, Serrated fin tubes

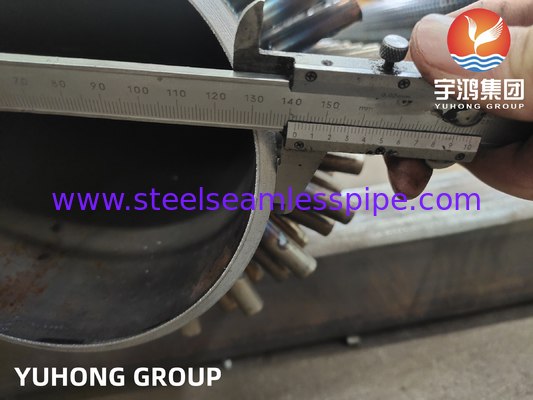

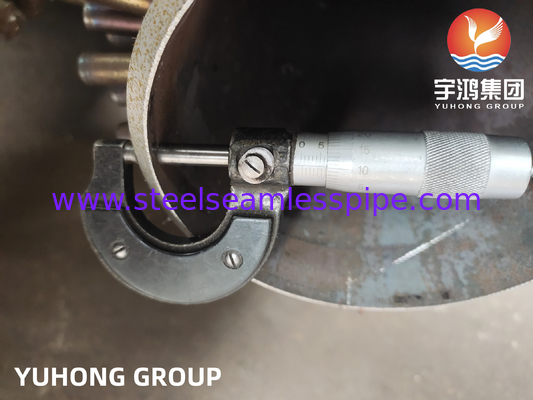

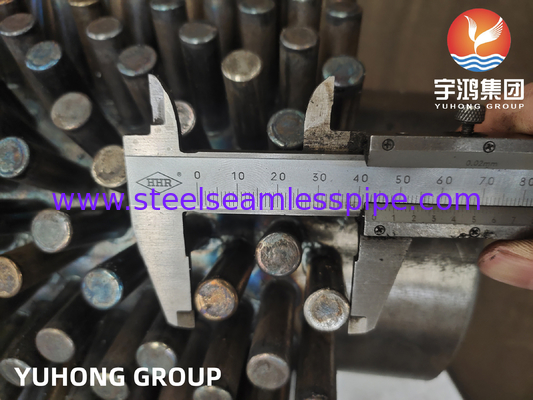

Specification of studded pipe A335 alloy steel finned pipe
Base pipe O.D: 15.88-219.1mm
Fin height: 6-50mm
Fin thickness: 0.3-3.0mm
Fin pitch: as customer's request.
End: Plain Ends, Beveled Ends
No fin area on both side: As Customer's request and drawing
Alloy Steel Chemical Compositions
| Grade | UNS Designation | Composition, % | ||||||
| Carbon | Manganese | Phosphorus, max | Sulfur, max | Silicon | Chromium | Molybdenum | ||
| P1 | K11522 | 0.10-0.20 | 0.30-0.80 | 0.025 | 0.025 | 0.10-0.50 | -- | 0.44-0.65 |
| P2 | K11547 | 0.10-0.20 | 0.30-0.61 | 0.025 | 0.025 | 0.10-0.30 | 0.50-0.81 | 0.44-0.65 |
| P5 | K41545 | 0.15MAX | 0.30-0.60 | 0.025 | 0.025 | 0.50MAX | 4.00-6.00 | 0.45-0.65 |
| P9 | K90941 | 0.15MAX | 0.30-0.60 | 0.025 | 0.025 | 0.25-1.00 | 1.00-1.50 | 0.44-0.65 |
| P11 | K11597 | 0.05-0.15 | 0.30-0.60 | 0.025 | 0.025 | 0.50-1.00 | 1.00-1.50 | 0.44-0.65 |
| P12 | K11562 | 0.05-0.15 | 0.30-0.61 | 0.025 | 0.025 | 0.5MAX | 0.80-1.25 | 0.44-0.65 |
| P15 | K11578 | 0.05-0.15 | 0..30-0.60 | 0.025 | 0.025 | 1.15-1.65 | -- | 0.44-0.65 |
| P21 | K31545 | 0.05-0.15 | 0.30-0.60 | 0.025 | 0.025 | 0.50MAX | 2.65-3.35 | 0.80-1.06 |
Advantages of Studded Tubes
1. As the pin rib of the studded tubes is a cantilever structure with a compact structure, the pin rib will vibrate under the impact of the air flow, making it difficult to accumulate soot.
2. due to the strong turbulent flushing of flue gas, the studded tubes heat exchange element has high heat transfer efficiency and strong self ash removal capability.
Application
The mainly applications for studded tubes is the process heat recovery of the petrochemical industry, in areas of convection ovens, vacuum generators for chemical processing, specially used in petroleum applications. Studded pipes high resistance in the harsh environments, such as sections of Sulfuric Acid atmospheres, makes it very useful for the industries mentioned.
