Yuhong Holding Group Co.,LTD
Place of Origin: | China |
Brand Name: | YUHONG |
Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008 |
Model Number: | ASTM A269 TP316L |
Minimum Order Quantity: | 1000KGS |
---|---|
Price: | Negotiable |
Packaging Details: | Ply-wooden Case /Iron Case/ Bundle with plastic Cap/Woven Case |
Delivery Time: | Depends on quantity |
Payment Terms: | T/T, L/C |
Supply Ability: | 1000 tons per month |
Specification: | ASTM A269 | Grade: | TP316L |
---|---|---|---|
End: | Beveled End, Plain End | Application: | Chemical Containers, Heat Exchanger, Pipeline |
Non Destructive Test: | Eddy Current Test -ASTM E426, Hystostatic Test-ASTM A999, Ultrsonic Test -ASTM E213 | Type: | Seamless |
High Light: | Petrochemical Stainless Steel Seamless Tube,1.4404 Seamless Tub,ASTM A269 Stainless Steel Round Pipe |

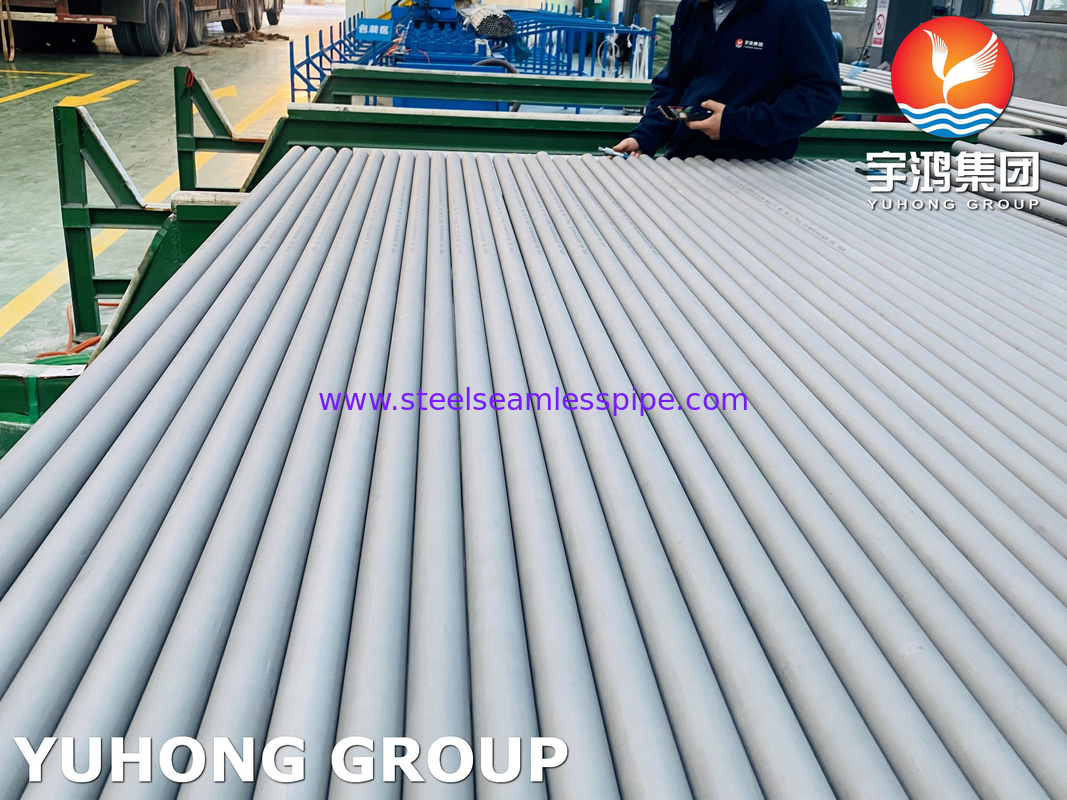

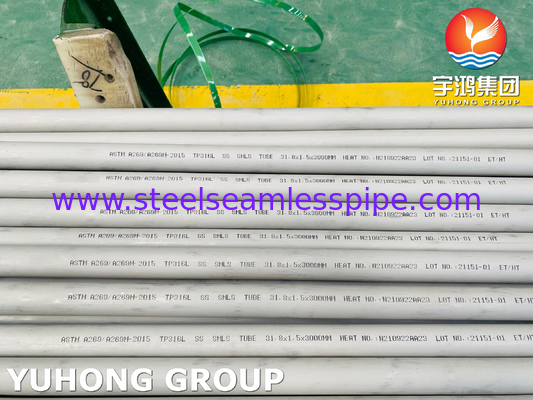

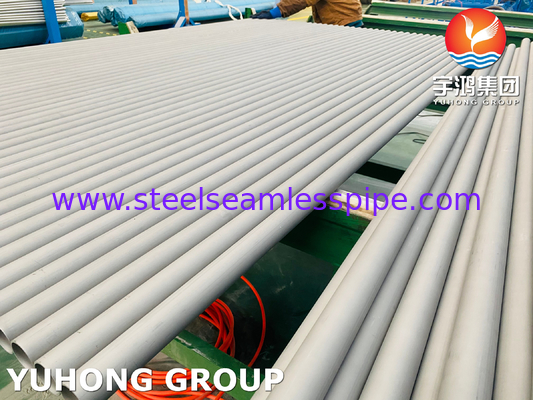

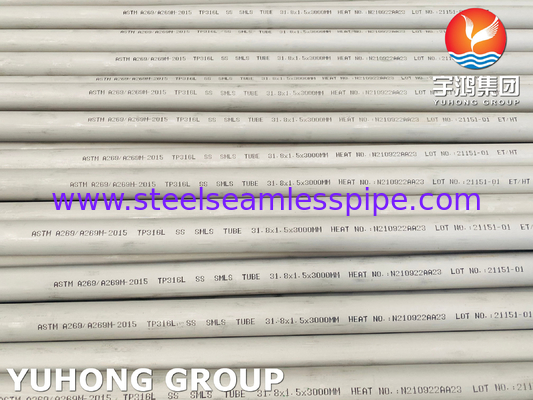

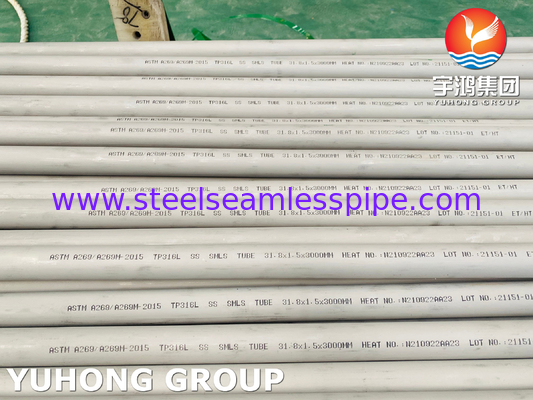

ASTM A269 TP316L Stainless Steel Seamless Tube For Petrochemical
What is ASTM A269?
This specification covers nominal-wall-thickness, seamless and welded austenitic steel tubing for general corrosion-resisting and low- or high-temperature service. All material shall be furnished in the heat-treated condition. The steel shall conform to the chemical composition requirements.
Different mechanical test requirements that includes, flaring test, flange test, hardness test, and reverse flattening test are presented. Also, each tube shall be subjected to the non-destructive electric test or the hydrostatic test. Finally the hardness requirements for different grades of tubes are highlighted.
The tubing sizes and thicknesses usually furnished to this specification are 1/4 in. [6.4 mm] in inside diameter and larger and 0.020 in. [0.51 mm] in nominal wall-thickness and heavier.
Our range of Austenitic Stainless Steel 316 / 316L seamless tubes is in conformation with the international quality standards and is thoroughly tested on various parameters before delivering to the clients. Designed according to the national and international standards, this Stainless Steel Tubing is offered in made-to-order length sizes and shapes to our well-regarded customers.
Chemical Composition of 316L:
GRADE |
|
C |
MN |
SI |
P |
S |
CR |
MO |
NI |
N |
---|---|---|---|---|---|---|---|---|---|---|
316L |
Min |
- |
- |
- |
- |
- |
16.0 |
2.00 |
10.0 |
- |
Max |
0.03 |
2.0 |
0.75 |
0.045 |
0.03 |
18.0 |
3.00 |
14.0 |
0.10 |
GRADE | TENSILE STR (MPA) MIN |
YIELD STR 0.2% PROOF (MPA) MIN |
ELONG (% IN 50MM) MIN |
HARDNESS | |
---|---|---|---|---|---|
ROCKWELL B (HR B) MAX | BRINELL (HB) MAX | ||||
316L
|
485
|
170
|
40
|
95
|
217
|
Physical Properties:
GRADE | DENSITY (kg/m³) |
ELASTIC MODULUS (GPA) |
MEAN CO-EFF OF THERMAL EXPANSION (ΜM/M/°C) | THERMAL CONDUCTIVITY (W/M.K) |
SPECIFIC HEAT 0-100°C (J/KG.K) |
ELEC RESISTIVITY (NΩ.M) |
|||
---|---|---|---|---|---|---|---|---|---|
0-100°C | 0-315°C | 0-538°C | AT 100°C | AT 500°C | |||||
316L | 8000 | 193 | 15.9 | 16.2 | 17.5 | 16.3 | 21.5 | 500 | 74 |
GRADE
|
UNS
NO |
OLD BRITISH
|
EURONORM
|
SWEDISH
SS |
JAPANESE
JIS |
||
---|---|---|---|---|---|---|---|
BS
|
EN
|
NO
|
NAME
|
||||
316L
|
S31603
|
316S11
|
-
|
1.4404
|
X2CrNiMo17-12-2
|
2348
|
SUS 316L
|
Applications:
-Chemical and petrochemical
-Power generation
-Renewable energy
-Process piping
-Pharmaceutical
-Food and beverage
-Oil and gas
-Refrigeration
-Air conditioning
-Power stations
-Chemical plants
