Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | CHINA |
| Brand Name: | YUHONG |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008 |
| Model Number: | ASME SB163 NO4400 |
| Minimum Order Quantity: | 10PC |
|---|---|
| Price: | 1-100000 USD |

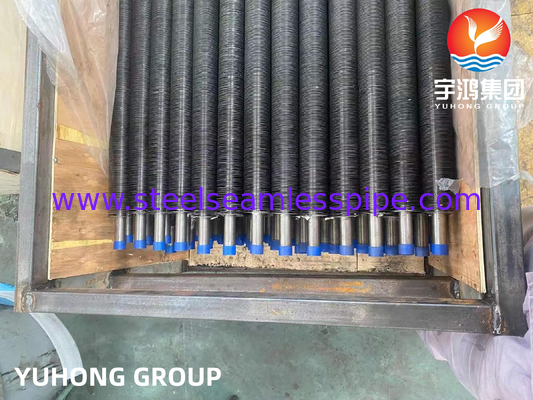

| Packaging Details: | Ply-wooden Case /Iron Case/ Bundle with plastic Cap |
| Delivery Time: | 5-75 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1000 tons/month |
| Standard: | ASME SB163 | Material: | UNS NO4400 |
|---|---|---|---|
| Type: | G-Type | Tube Material: | Carbon Steel, Stainless Steel, Alloy Steel,etc |
| Application: | Heater Parts,Refrigeration Parts,heat Exchanger,Cooler,Fluid Cooling | Packing: | Ply-wooden Case /Iron Case/ Bundle With Plastic Cap |
| High Light: | NO4400 Aluminium Finned Tubes,Embedded Aluminium Finned Tubes,ASME SB163 Fin Tube |
||
ASME SB163 Embedded G-Type NO4400 Alloy Finned Tube , Al Fins For Condenser
YUHONG Group produce fin tubes and we sell these in over 70 countries.
Specifications For Various Types Of Finned Tubes
| Type | Description | Base tube | Fin specification (mm) | ||
| O.D. (mm) | Fin pitch | Fin height | Fin thick | ||
| Embedded | G-type fin tueb | 16-63 | 2.1~5 | <17 | ~0.4 |
| Extruded | Single metal combined metal | 8-51 | 1.6~10 | <17 | 0.2-0.4 |
| Low fin tube t-type fin tube | 10-38 | 0.6~2 | <1.6 | ~0.3 | |
| Bamboo tube corrugated tube | 16-51 | 8.0~30 | <2.5 | / | |
| Wound | l/kl/ll type fin tube | 16-63 | 2.1~5 | <17 | ~0.4 |
| String | String fin tube | 25-38 | 2.1-3.5 | <20 | 0.2-0.5 |
| U-type | U-type tube | 16-38 | / | / | / |
| Welding | HF-welding fin tube | 16-219 | 3~25 | 5~30 | 0.8-3 |
| H/HH type fin tube | 25-63 | 8~30 | <200 | 1.5-3.5 | |
| Studed fin tube | 25-219 | 8~30 | 5~35 | φ5-20 |
|
Tube Material : Carbon Steel, Stainless Steel, Alloy Steel, Corten steel, duplex Steel, Super Duplex Steel, Inconel, High Chrome High Nickle & Incolloy, CK 20 material and some other material.

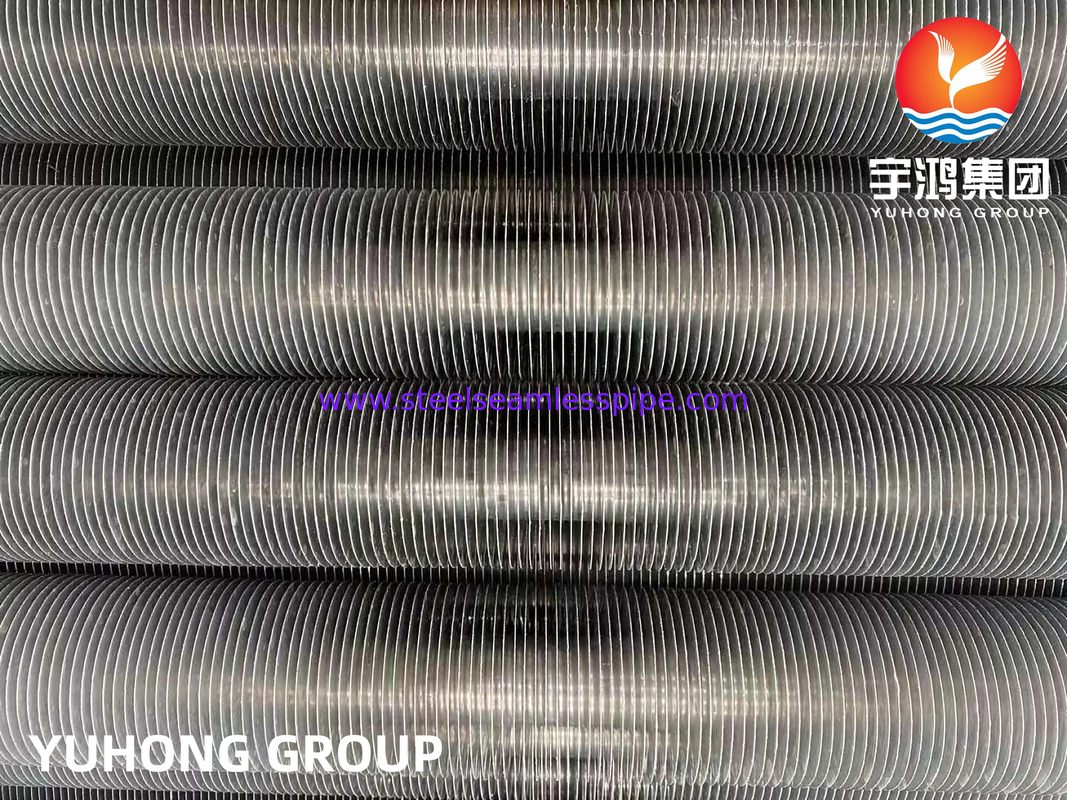

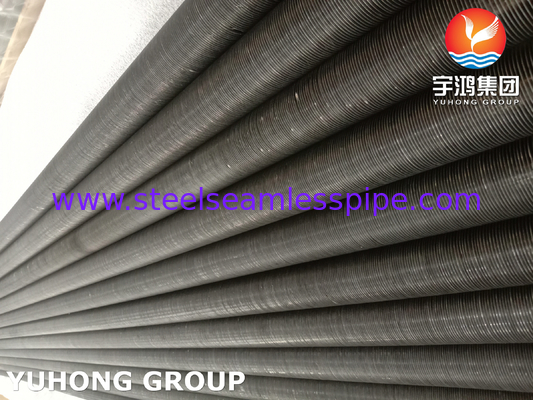

G-Type Aluminum Fin Tube
Embedded Fin Tubes also called G type Finned Tube, Embedded Finned Tube provides a perfect connection between the fin and the tubes . The Embedded Fin tubes main design is that through professional equipment groove the tubes and fin insert fins into the helical groove. Finally combined the fin and tubes as intergral.
(G-Fins) are made by winding aluminium or copper strip into a helical groove machined on the outer surface of the tube. Embedded Fin tubes can be used in higher temperatures and are very durable. Embedded Fin tubes are best suited for the usages that involve high thermal cycling or high temperatures and where the fin side will be subjected to regular cleaning .
Features Of G-Type Finned Tube
High-performance
Easy installation
Less space required
Less cabling
Optimized surface
Finest technology used
Average corrosion protection
Less energy consumption
Increased reliability
Low maintenance
High mechanical resistance
Compact design
Detailes Of Monel 400 / NO4400 Tube
ASME SB 163 N04400 is a nickel-copper alloy (about 67% Ni – 23% Cu) that is resistant to sea water and steam at high temperatures as well as to salt and caustic solutions. Alloy 400 is a solid solution alloy that can only be hardened by cold working. This nickel alloy exhibits characteristics like good corrosion resistance, good weldability and high strength. Also it is designed with superior strength and excellent mechanical properties.
Chemical Composition
|
Nickel-copper UNS NO4400 |
Ni | Cu | Fe | Mn | C (A) | Si (A) | Su |
| Monel 400 | 63.0 min(B) | 28.0-34.0 | 2.50 max | 2 | 0.3 max | 0.5 | 0.024 |
Mechanical Properties
| UNS NO4400 | Tensile Strength,min | Yield Strength (0.2%Offset,min) | Elongation | Rockwell Hardness |
| Annealed | ksi-70,MPa-483 | psi-28,MPa-193 | 0.35 | / |
| Stress-relieved | ksi-85,MPa-586 | psi-55,MPa-379 | 0.15 | B75 max |
Physical Properties
| Properties | Metric | Imperial |
| Density | 8.8 gm/cm3 | 0.318 lb/in3 |
Inspections and Tests
| Inspections and Tests:G-fin; L-fin; LL-fin; KL-fin; Extruded-fin Finned Tubes | |||
| 1.Chemical Composition | |||
| 2.Mechanical Properties | |||
| 3.Hydrostatic Test | |||
| 4.Pneumatic Test | |||
| 5.Boroscopic Inspection | |||
| 6.Eddy Current Test |
Related Industries Involved
Chemical industry
Petroleum Industry
Metallurgical industry
Power industry
Pharmaceutical industry
Food industry
Light industry
Application
Air Cooling Heat Exchanger
Steam Coils
Air Perheaters
Finned Tube Heat Exchangers
Air Coolers / Oil Coolers / Hydrogen Coolers / Generator Coolers
Waste Heat Recovery
Driers
Air Conditioning / Air Heaters
Steam Condensers
