Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | China |
| Brand Name: | YUHONG |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015 |
| Model Number: | TP304, 1.4301, UNS S30400 |
| Minimum Order Quantity: | 1 Piece |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Ply-Wooden Case / Iron Case / Bundle with Plastic Cap |
| Delivery Time: | 10-90 Work Days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | According to Clients' Requirement |
| Standard: | ASTM A249, ASME SA249 | Material Grade: | TP304, 1.4301, UNS S30400 |
|---|---|---|---|
| Fin Type: | Extruded Fin Tube | Fin Height: | Up To 17 Mm |
| Tube Length: | 18 Meters Max | Fin Pitch: | 1.6-10mm |
| Fin Thick: | 0.2-0.4mm | Application: | Heater Parts,Refrigeration Parts,heat Exchanger,Cooler,Fluid Cooling |
| High Light: | TP304 Stainless Steel Extruded Fin Tube,Heat Exchanger Extruded Fin Tube,ASTM A249 Finned Tube |
||

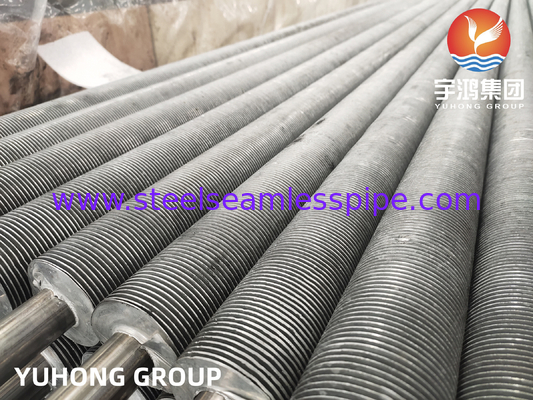

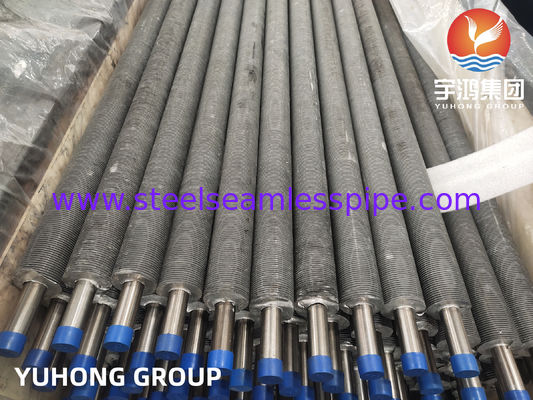

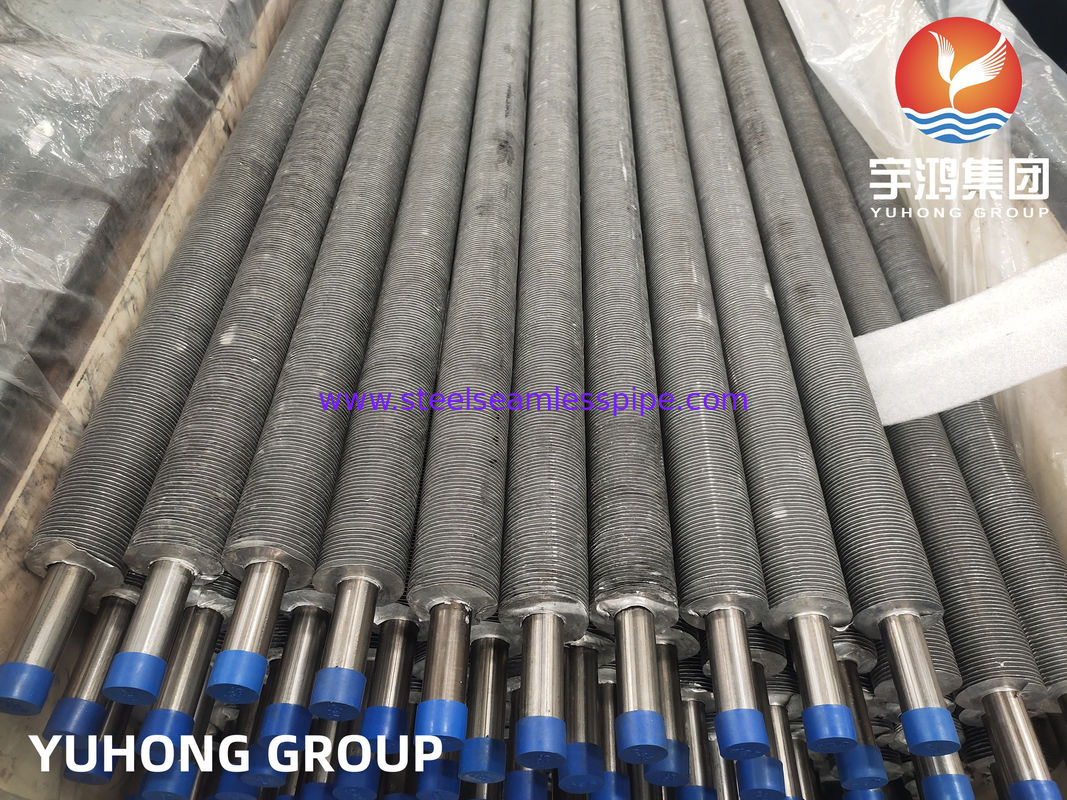

ASTM A249 TP304, 1.4301 Stainless Steel Extruded Fin Tube For Heat Exchanger
ASTM 249 TP304 covers standard specifications for austenitic 304 steel boiler, condenser tubes, heat exchangers, and boiler vessels. The ASTM A249 TP304 Tube has a superior composition consisting of nickel and chromium with other alloying elements. The content embedded within these tubes gives them excellent resistance to reductive and corrosive media. The ASTM A249 SS SMLS Tube is non-magnetic in nature and showcases outstanding strength. These tubes are produced via the extrusion process as hot steel billets are passed through extruded metal which gives the A249 Seamless Tube enhanced tolerance in pressurized vessel applications. This tube doesn’t easily disorientate in any pressures and has enhanced load-bearing capacity.
The Fin tube has the significant advantage of improved heat transfer efficiency. By expanding the available surface area for heat transfer, fin tubes facilitate more effective heat exchange between two fluids in comparison to plain tubes. The incorporation of fins on the base tubes accelerates heat transfer, leading to a more optimized heat exchange process and enhanced system performance. In addition, stainless steel finned tubes contribute to energy savings and cost reduction. The heightened heat transfer efficiency demands less energy to reach the required heat exchange level.
Chemical Composition:
| Grade | C | Mn | Si | P | S | Cr | Ni | N | |
| TP304 | min. | – | – | – | – | – | 18 | 8 | – |
| max. | 0.08 | 2 | 0.75 | 0.045 | 0.03 | 20 | 10.5 | 0.1 | |
Mechanical properties:
| Grade | Tensile Strength (Mpa) | Yield Point (Mpa) | Elongation (%) |
| TP304 | 515 | 205 | 35 |
Physical Properties:
| Density (g/cm3) | Elastic Modulus (GPa) | Mean Coefficient of Thermal Expansion (μm/m/°C) | Thermal Conductivity (W/m.K) | Specific Heat 0-100°C (J/kg.K) | Electrical Resistivity (nΩ.m) | |||
| 0-100°C | 0-315°C | 0-538°C | 100°C | 500°C | ||||
| 8 | 193 | 17.2 | 17.8 | 18.4 | 16.2 | 21.5 | 500 | 720 |
Applications:
Power Plants
Heat Recovery Steam Generators
Petrochemical Industries
Marine Applications
Refrigeration Applications
Economizers
Oil and Gas Coolers
Plumbing and Air Conditioning
Condensers and Evaporators
Shell and Tube Heat Exchangers
