Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | CHINA |
| Brand Name: | YUHONG |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008 |
| Model Number: | ASME SA182 |
| Minimum Order Quantity: | 2 PC |
|---|---|
| Price: | 1-100000 USD |
| Packaging Details: | Ply-wooden Case /Iron Case/ Bundle with plastic Cap |
| Delivery Time: | 10-65 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1000 tons/month |
| Material: | Stainless Steel | Product: | Flanges |
|---|---|---|---|
| Standard: | ASME SA182 | Grade: | F317L |
| Type: | Blind/ Threaded /Slip On /Socket Welded/ Welding Neck/ Lap Joint Flange | Process: | Forged, Drilling/Bending/Stamping, Casting, Heating Treament |
| High Light: | RF Stainless Steel Seamless Flange,WN Stainless Steel Seamless Flange,F317L Seamless Steel Flanges |
||

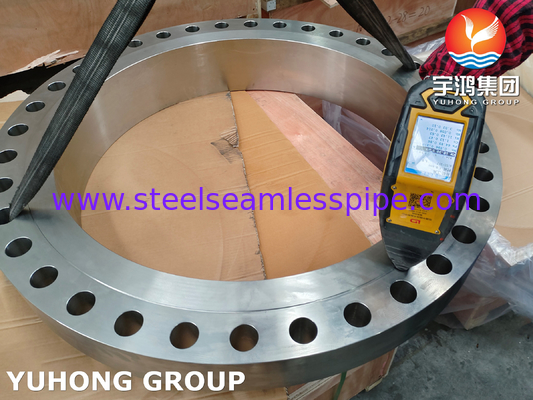

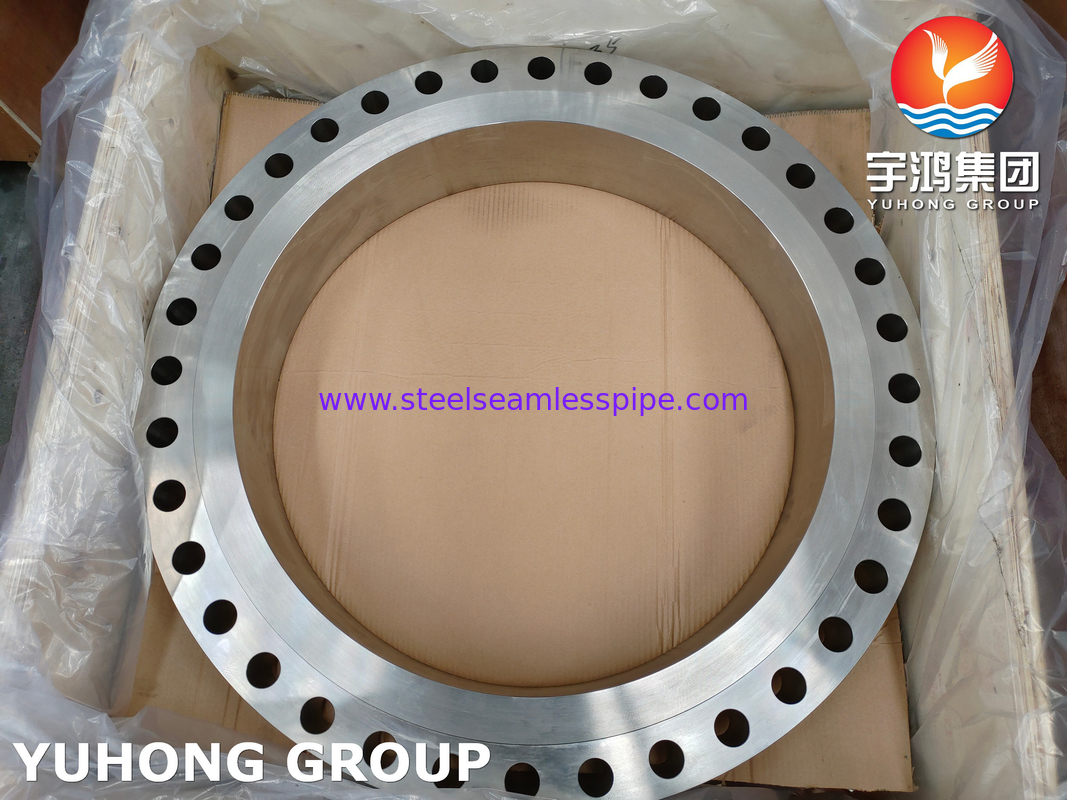

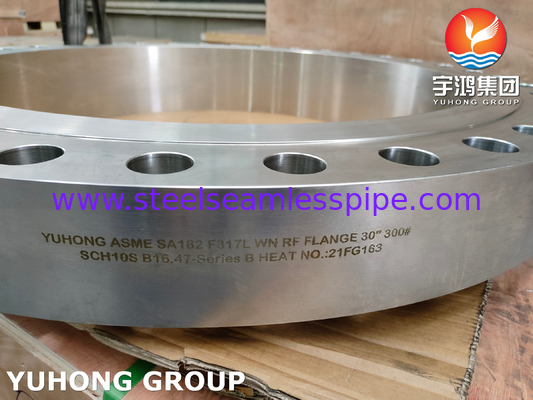

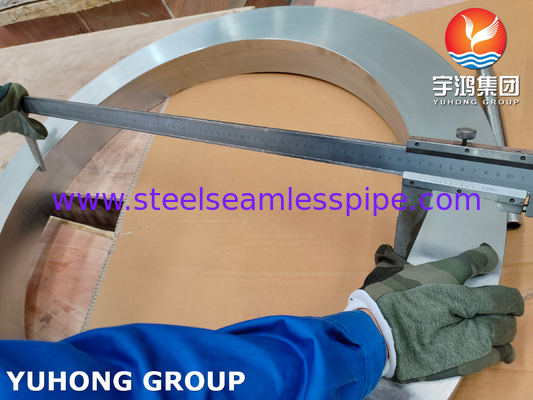

ASME SA182 F317L WN RF Stainless Steel SMLS Flange , Bridas
YUHONG Group offers ASTM A182/ASME SA182 F317L-S Stainless Steel Flanges.
This specification covers forged low alloy and stainless steel piping components for use in pressure systems. Included are flanges, fittings, valves, and similar parts to specified dimensions or to dimensional standards.
Compared with conventional stainless steel, A182/SA182 F317L alloy has higher ductility, stress corrosion resistance, compressive strength and high temperature resistance, and stronger chemical corrosion resistance.And it is widely used in petroleum, chemical, pharmaceutical, food and other fields.
Specification of ASME SA182 F317L
| Type | Welding-Neck;Blind;Thread;Plate;Slip-On;Socket-Weld,etc |
| Standard | ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc. |
| Size | 1/2″ to 48″NB |
| Flange Face Type | Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ) |
| Flange Delivery Condition | As Rolled, Normalizing Rolled, Thermomechanical Rolled / Formed, Normalizing Formed, Normalized and Tempered / Quenched and Tempered - BR / N / Q /T, Machined |
| Flange Dimension Standard | Standard - ANSI - ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, and ANSI B16.48 |
| Flange Value Added Service | Draw / Expansion / Machining / Sand Blasting / Shot Blasting / Galavanizing / Heat Treatment |
| Coating Flanges Face | Zinc Plated, Yellow Transparent, Anti-rust Paint, Cold and Hot Dip Galvanized, Oil Black Paint |
| Flange Packaging | Loose / Bundle / Wooden Pallet / Wooden Box / Plastic Cloth Wraps / Plastic End Caps / Beveled Protector |
Tests Required
Tension Tests/ Hardness Tests/ Grain Size/ Corrosion Testing for Austenitic Grades/ Nondestructive Tests
Pipe Flange Equivalent Material
| STANDARD | WERKSTOFF NR. | UNS | JIS | EN |
| SS 317L | 1.4438 | S31703 | SUS 317L | X2CrNiMo18-15-4 |
Chemical Composition of ASME SA182 F317L / UNS S31703
| ELEMENT | COMPOSITION (%) |
| Carbon | 0.03 |
| Manganese | 2.00 |
| Phosphorus | 0.045 |
| Sulfur | 0.03 |
| Silicon | 1.00 |
| Nickel | 11.0-15.0 |
| Chromium | 18.0-20.0 |
| Molybdenum | 3.0-4.0 |
Tensile and Hardness Requirements
| Tensile Strength | Yield Strength (0.2%Offset) | Elongation | Reduction of Area |
| Psi – 70,000 , MPa – 485 | Psi – 25,000 , MPa – 170 | 30 % | 50 % min |
Applications
Fabrication Industry
Pickling Equipment
Pollution-Control Equipment
Natural Gas Industry
Chemical Industry - Processing
Oil And Gas Well Piping
Nuclear Fuel Reprocessing
Acid Production
Water Pipeline Industry
