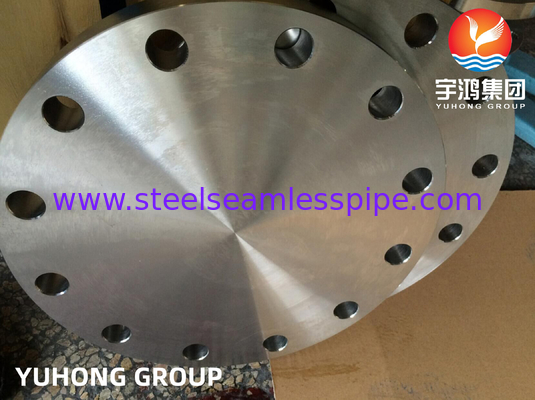

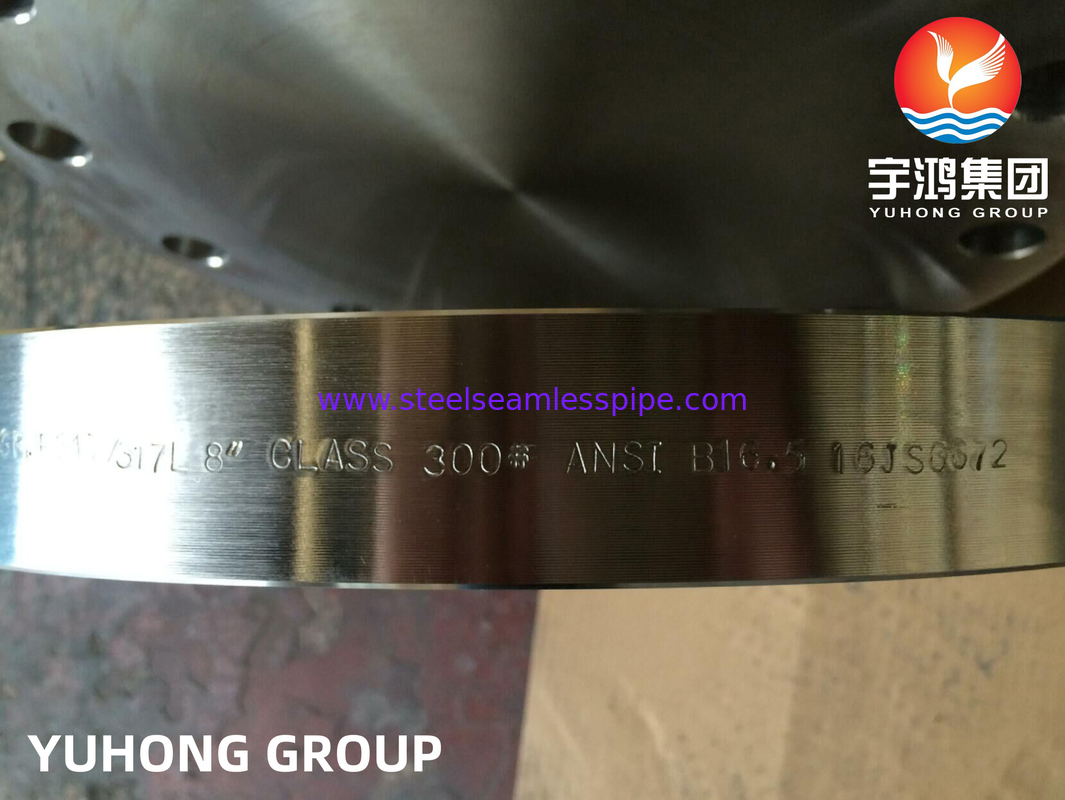

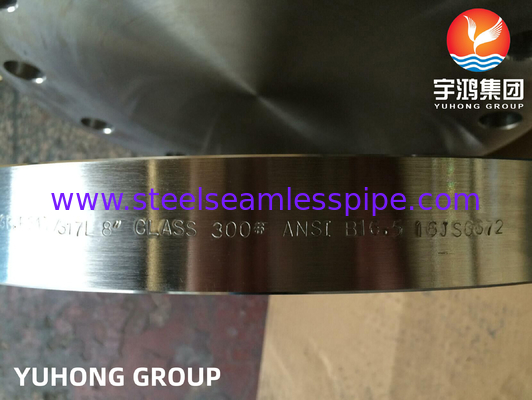

ASTM A182 F317 F317L Blind RF SS Forged Flange Bridas
YUHONG Group offers ASTM A182/ASME SA182 F317 / F317L Stainless Steel Forged Flanges.
This specification covers forged low alloy and stainless steel piping components for use in pressure systems. Included are flanges, fittings, valves, and similar parts to specified dimensions or to dimensional standards.
Compared with conventional stainless steel, A182/SA182 F317/F317L alloy has higher ductility, stress corrosion resistance, compressive strength and high temperature resistance, stronger chemical corrosion resistance.Therefore, this steel F317/F317L is widely used in petroleum, chemical, pharmaceutical, food and other fields.
Specification of ASTM A182 F317 / F317L
| Type | Blind;Welding-Neck;Thread;Plate;Slip-On;Socket-Weld,etc |
| Standard | ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc. |
| Size | 1/2″ to 48″NB |
| Flange Face Type | Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ) |
| Flange Delivery Condition | As Rolled, Normalizing Rolled, Thermomechanical Rolled / Formed, Normalizing Formed, Normalized and Tempered / Quenched and Tempered - BR / N / Q /T, Machined |
| Flange Dimension Standard | Standard - ANSI - ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, and ANSI B16.48 |
| Flange Value Added Service | Draw / Expansion / Machining / Sand Blasting / Shot Blasting / Galavanizing / Heat Treatment |
| Coating Flanges Face | Zinc Plated, Yellow Transparent, Anti-rust Paint, Cold and Hot Dip Galvanized, Oil Black Paint |

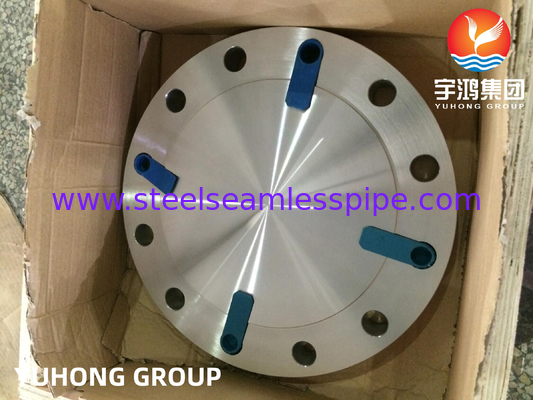

| Flange Packaging | Loose / Bundle / Wooden Pallet / Wooden Box / Plastic Cloth Wraps / Plastic End Caps / Beveled Protector |
Tests Required

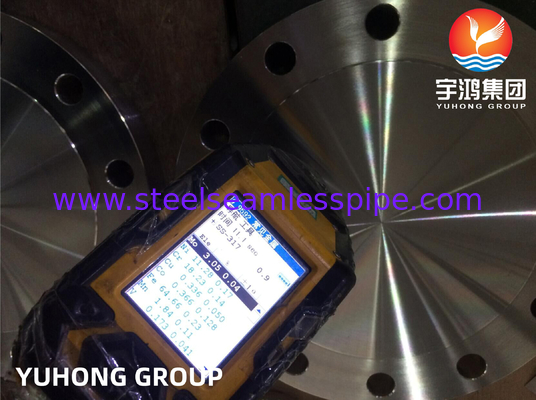

Hardness Tests/ Tension Tests/ Grain Size/ Corrosion Testing for Austenitic Grades/ Nondestructive Tests
ASTM A182 Pipe Flange Equivalent Material
| STANDARD | WERKSTOFF NR. | UNS | JIS | EN |
| SS 317 | 1.4449 | S31700 | SUS 317 | – |
| SS 317L | 1.4438 | S31703 | SUS 317L | X2CrNiMo18-15-4 |
Chemical Composition of ASTM A182 F317 / F317L
| ELEMENT | COMPOSITION (%) of F317 | COMPOSITION (%) of F317L |
| Carbon | 0.08 |
0.03 |
| Manganese | 2.00 | 2.00 |
| Phosphorus | 0.045 | 0.045 |
| Sulfur | 0.03 | 0.03 |
| Silicon | 1.00 | 1.00 |
| Nickel | 10.0-14.0 | 11.0-15.0 |
| Chromium | 16.0-18.0 | 18.0-20.0 |
| Molybdenum | 2.0-3.0 | 3.0-4.0 |
Tensile and Hardness Requirements of ASTM A182 F317 / F317L
ASTM A182 F317
| Tensile Strength | Yield Strength (0.2%Offset) | Elongation | Reduction of Area |
| Psi – 75,000 , MPa – 515 | Psi – 30,000 , MPa – 205 | 30 % | 50 % min |
ASTM A182 F317L
| Tensile Strength | Yield Strength (0.2%Offset) | Elongation | Reduction of Area |
| Psi – 70,000 , MPa – 485 | Psi – 25,000 , MPa – 170 | 30 % | 50 % min |
Applications of Blind Flanges
Fabrication Industry
Natural Gas Industry
Chemical Industry - Processing
Water Pipeline Industry
