Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | China |
| Brand Name: | YUHONG |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015 |
| Model Number: | F316 |
| Minimum Order Quantity: | 1 Piece |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Ply-wooden Case / Pallet |
| Delivery Time: | 5 - 90 Work Days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | According to Clients' Requirement |
| Standard: | ASTM A182, ASME SA182 | Material Grade: | F316 |
|---|---|---|---|
| Size: | 1/2''-48''(DN15-DN1200) | Thickness: | SCH10-XXS(2-60mm) |
| Technics: | Forged | Connection: | Welding,Female,Male |
| Type: | Elbow,Sockolet,Nipple,Pipe Threaded,Reducer,Tee | Application: | Construction,gas And Oil Pipes,Petroleum Gas Water |

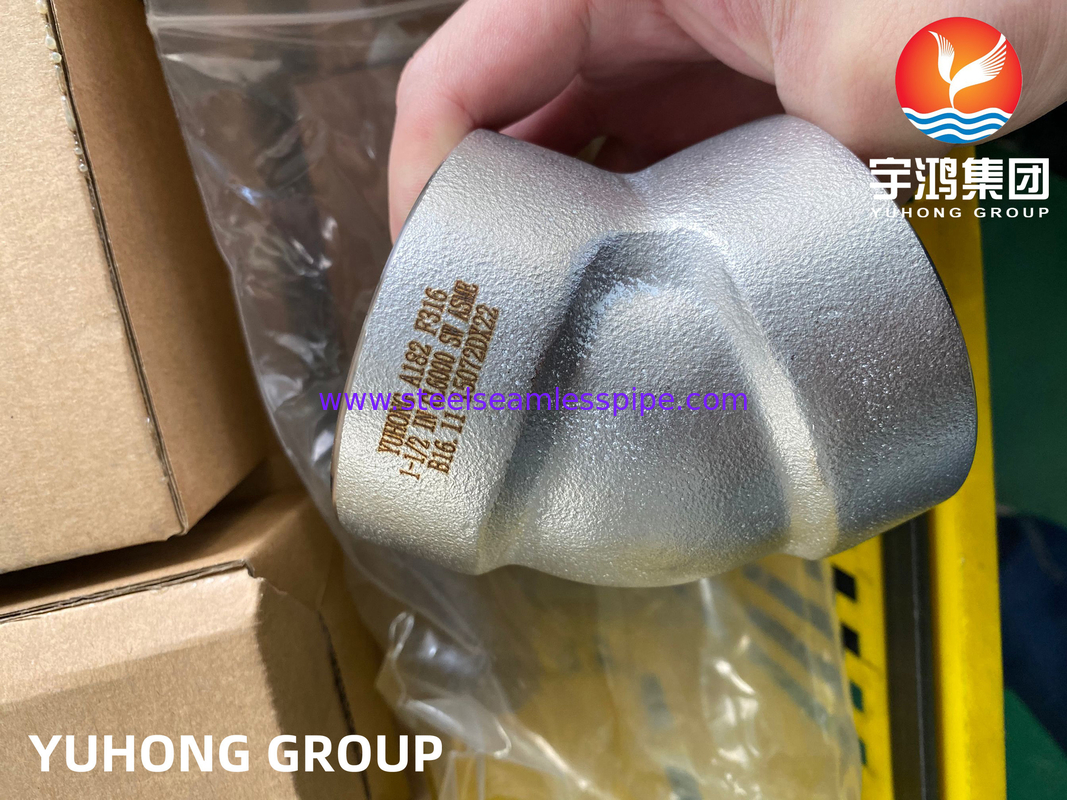

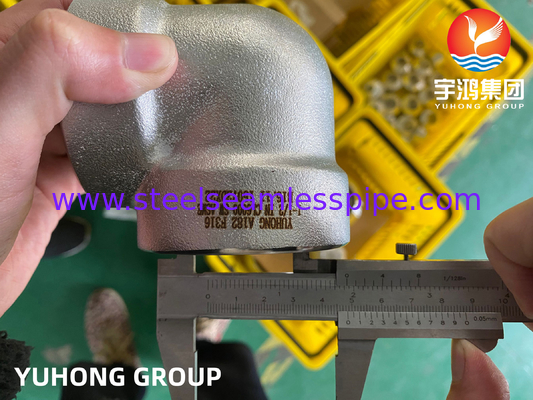

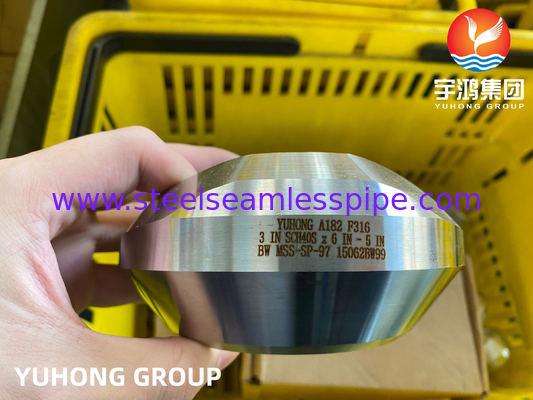

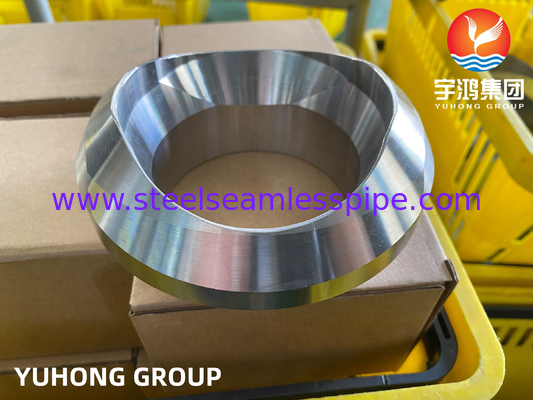

Forged Fittings ASTM A182 F316, UNS S31600 Stainless Steel Socket Weld Fittings B16.11
ASTM A182 F316 Stainless steel has excellent corrosion resistance when it's exposed to corrosive environments and media. It’s usually considered as “marine grade” stainless steel but it isn’t proof against warm sea water. The warm chloride environment can cause fittings and crevice corrosion. F316 is additionally subject to worry corrosion cracking above around 60 °C.
Specification:
| Specification | ASTM A182,ASME SA182 |
| Dimensions | ASME B16.11, MSS SP-79, 83, 95, 97, BS 3799 |
| Sizes | 1/4" to 48" |
| Types | Socketweld Fittings, Threaded Fittings |
| Pressure Rating | 2000LBS, 3000LBS, 6000LBS, 9000LBS. |
Equivalent Grades:
| STANDARD | EN | UNS | JIS | WERKSTOFF NR. | BS | AFNOR |
| SS 316 | X5CrNiMo17-12-2 / X3CrNiMo17-13-3 | S31600 | SUS 316 | 1.4401 / 1.4436 | 316S31 / 316S33 | Z7CND17‐11‐02 |
Chemical Composition:
| P | Mn | C | Ni | Cr | Fe | Si | Mo | S |
| 0.045 max | 2 max | 0.08 max | 11 - 14 | 16 - 18 | 67.845 min | 1 max | 2 - 3 | 0.03 max |
Mechanical Properties:
| Tensile Strength | Melting Point | Yield Strength (0.2%Offset) | Density | Elongation |
| Psi – 75000 , MPa – 515 | 1400 °C (2550 °F) | Psi – 30000 , MPa – 205 | 8 g/cm3 | 35 % |
Applications:
Plumbing
Construction Equipment
Petroleum Industry
Fabrication Industry
Power Generation
Oil & Gas Plant
Aerospace Industry
Refining Industry
