Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | CHINA |
| Brand Name: | YUHONG |
| Certification: | ASME II, ASME III, ABS, LR, DNV, GL , BV, CCS, KR, NK, TUV, PED, GOST, ISO , TS |
| Model Number: | ASME SB171 C71500 Copper Nickel Alloy Tubesheet |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | Ply wooden case / Pallet |
| Delivery Time: | 7 DAYS |
| Payment Terms: | L/C,T/T |
| Product Name: | Tubesheet | Standard: | ASTM B171, ASME SB171 |
|---|---|---|---|
| Material: | C70600, C71500, C68700, Etc. | Size: | Can Custom, As Buyer's Drawing Requirements |
| Shape: | Cylinder | NDT: | 100% PT, UT, PMI |
| Application: | Tubular Heat Exchanger, Boiler, Pressure Vessel, Steam Turbine, Large Central Air Conditioning, Etc. | ||
| High Light: | Copper Nickel Alloy Tubesheet,Copper Nickel Alloy Heat Exchanger Tubesheet,ASME SB171 Heat Exchanger Tubesheet |
||

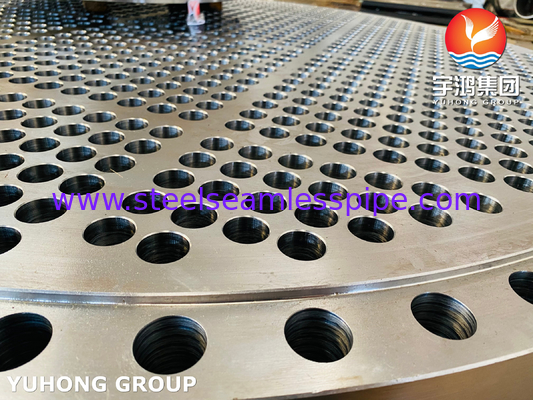

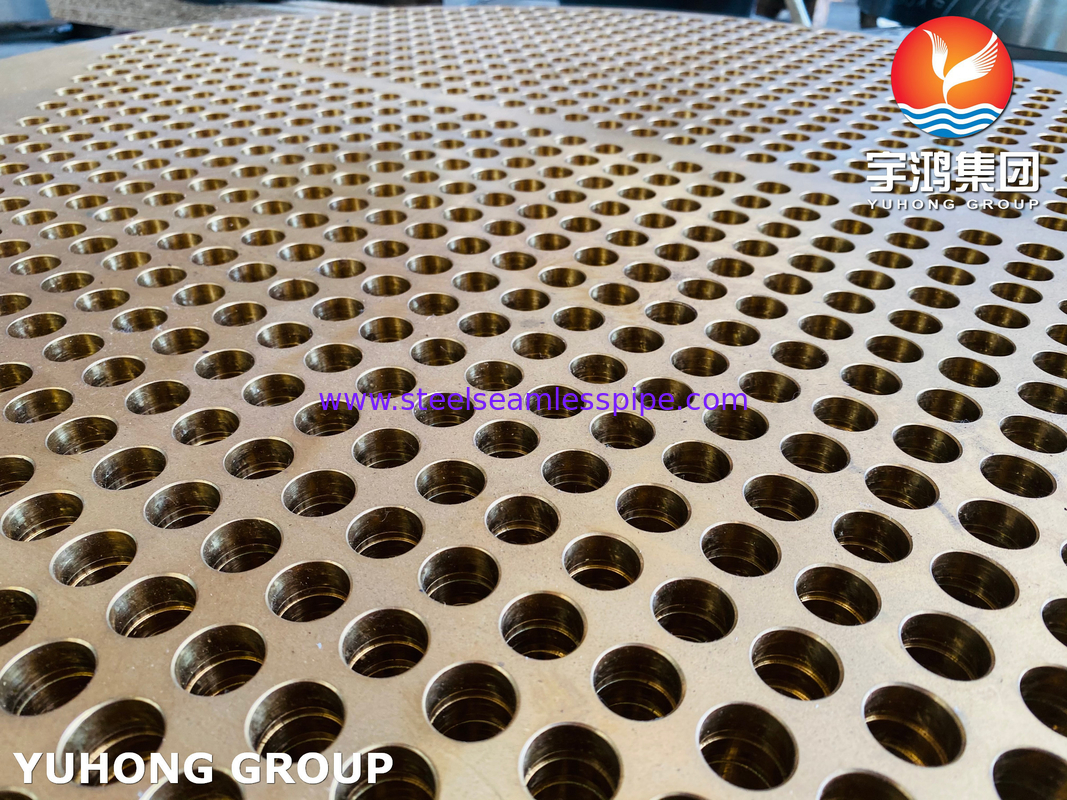

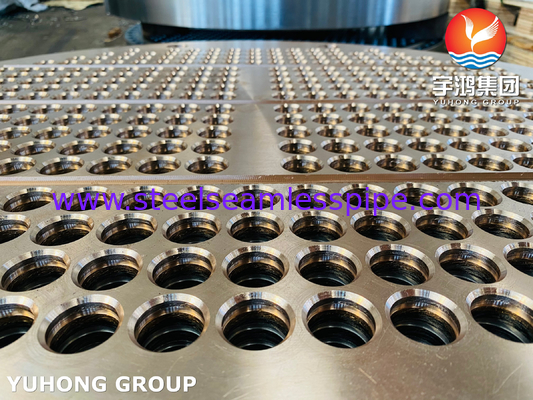

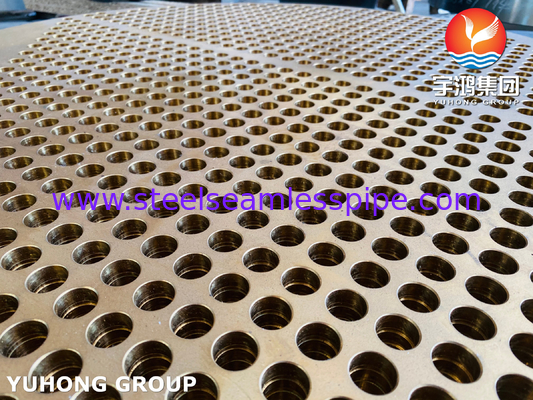

ASME SB171 UNS C71500 Copper Nickel Alloy Tubesheet For Heat Exchanger
ASME SB171 UNS C71500 tubesheets are commonly used in shell-and-tube heat exchangers, where they provide a durable and reliable barrier between the tubes and the shell. Other common applications for this alloy include condenser tubes, saltwater piping systems, and offshore oil and gas production equipment. In a word, it's important to note that the selection of materials for a pressure vessel should be made based on a number of factors, including the specific application requirements, design considerations, and applicable codes and standards.
Equivslent Grade of 70/30 Cu/Ni Plate
| STANDARD | WERKSTOFF NR. | UNS |
| Cupro Nickel 70/30 | 2.0882 | C71500 |
Applicable Specifications
ASTM B122/B122M Copper-nickel-zinc Alloy (nickel-silver) And Copper-nickel Plate, Sheet, Strip, And Rolled Bar
ASTM B151/B151M Copper-nickel-zinc Alloy (nickel-silver) And Copper-nickel Rod And Bar
ASTM B956/B956M Welded Copper And Copper-alloy Condenser And Heat Exchanger Tubes With Integral Fins
ASTM B467/ASME SB467 Welded Copper-nickel Pipe
ASTM B466/B466M, ASME SB466 Seamless Copper-nickel Pipe and Tube
ASTM B171/B171M Copper Alloy Condenser Tube Plates
ASTM B432 Copper And Copper Alloy Clad Steel Plate
ASME SB111, ASTM B111/B111M Copper And Copper Alloy Seamless Condenser Tubes And Ferrule Stock
ASME SB359, ASTM B359/B359M Copper & Copper Alloy Seamless Condenser & Heat Exchanger Tubes With Integral Fins
ASME SB395, ASTM B395/B395M U-bend Seamless Copper And Copper Alloy Heat Exchanger And Condenser Tubes
ASME SB543, ASTM B543/B543M Welded Copper And Copper Alloy Heat Exchanger Tube
ASTM B552 Seamless And Welded Copper-nickel Tubes For Water Desalting Plants
|
Type of materials |
Technical requirements according to |
|
Duplex Stainless Steel |
ASTM/ASME SA182 F44, F45, F51, F53, F55, F60, F61 |
|
Stainless Steel |
ASTM/ASME SA182 F304,304L,F316,316L, F310, F317L, F321, F347 |
|
Carbon Steel |
ASTM/ASME A105, A350 LF1, LF2, A266, A694, A765 Gr.2 |
|
Alloy Steel |
ASTM/ASME SA182 F1, F5, F9, F11, F12, F22, F51, A350-LF3 |
|
Titanium |
ASTM/ASME SB381, Gr.1, Gr.2, Gr.5, Gr.7, Gr.12, Gr.16 |
|
Copper Nickel |
ASTM/ASME SB151, UNS 70600(Cu-Ni 90/10), 71500(Cu-Ni 70/30) |
|
Brass, Al-brass |
ASTM/ASME SB152 UNS C10100, C10200,C10300,C10800,C12200 |
|
Nickel Alloys |
ASTM/ASME SB169,SB171, SB564, UNS 2200, UNS 4400, UNS 8825 |
|
Alloy 20 |
ASTM/ASME SB472 UNS 8020 |
|
Hastelloy |
ASTM/ASME SB564, UNS10276 ( C 276 ) |
|
Claded materials |
ASTM/ASME SB898, SB263, SB264 or closer |
|
Titanium- Steel, Nickel-Steel,Titanium- Copper, |
Applications
Tube plate is widely used in tubular heat exchangers, boilers, pressure vessels, steam turbines, large central air conditioners, condensers, evaporators and other products. The metal material makes it not only rigid, but also has great heat conduction performance. The precision of tube plate processing, especially the tolerance of hole spacing and diameter, perpendicularity, and finish greatly affect the assembly and performance of the equipment listed above.
