| Place of Origin: | CHINA |
| Brand Name: | YUHONG |
| Model Number: | ASTM A312 TP310S |
| Minimum Order Quantity: | 100KGS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Ply-wooden Case /Iron Case/ Bundle with plastic Cap |
| Delivery Time: | 7DAYS |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000Tons/Month |
| Certification: | ISO,SGS,BV | Material: | TP310S 1.4845 |
|---|---|---|---|
| Type: | Seamless Pipe, Welded Pipe | Package: | Ply-wooden Case |
| Surface: | Polished, Pickled , Bright Annealed | Application: | Heat Exchangers,Cryogenic Structures Etc. |
| High Light: | Austenitic Stainless Steel SMLS Pipe,TP310S Stainless Steel Pipe,Heat Exchanger SMLS Pipe |
||

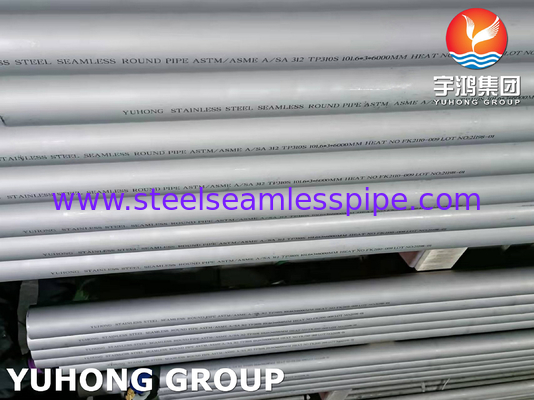

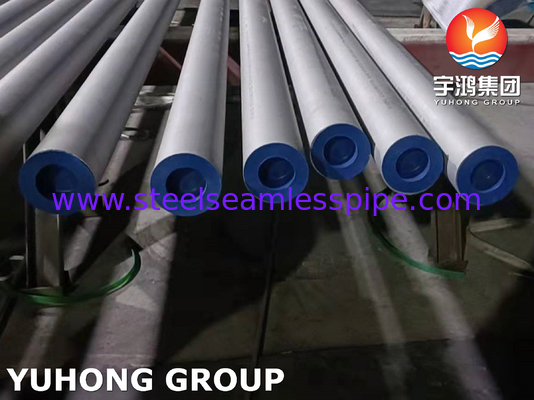

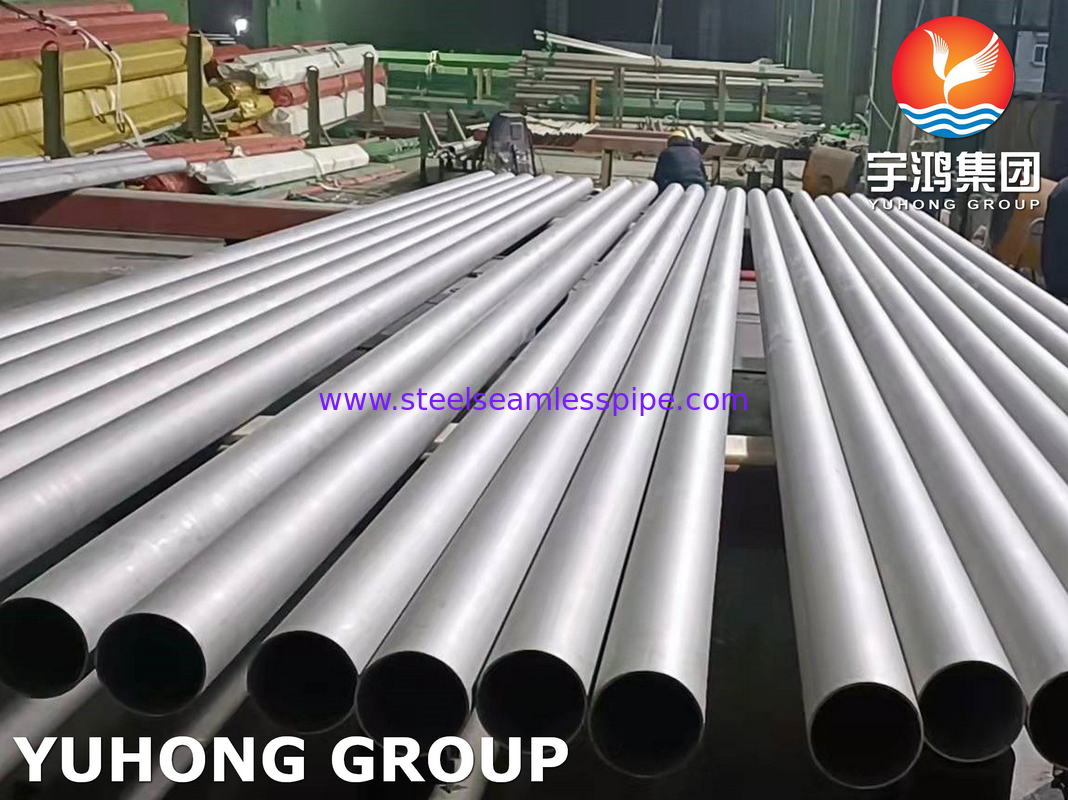

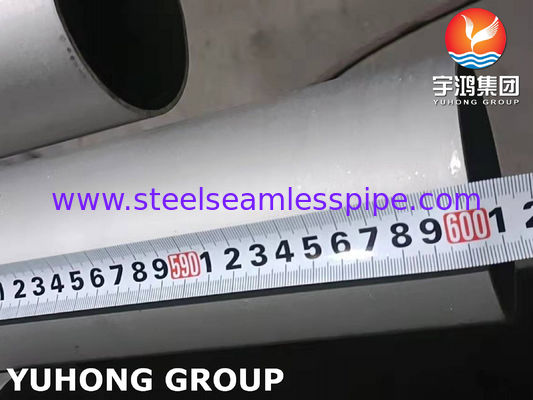

ASTM A312 TP310S, 1.4845 Austenitic Stainless Steel Seamless Pipe For Heat Exchanger
1.4835 is a high-temperature resistant material that can be used for applications in high-temperature environments. This material has good mechanical properties and corrosion resistance in dry air. Meanwhile, when using suitable filler metal, the material exhibits excellent weldability in all common welding methods.
310S (0Cr25Ni20/0Cr25Ni20Si2), heat-resistant stainless steel, grade 0Cr25Ni20, American grade SA213/TP310S, commonly known as 310S, also known as 2520, duplex stainless steel, used in the manufacturing of high-temperature furnace tubes. Chemical composition (%) of SA213/TP310S: Ni Ni: 19.00-22.00 Cr Cr: 24.00-26.00 Si Si<=1.50 mn Mn<=2.00 c C<=0.08 s S<=0.030 p P<=0.035.
Usage: Stainless and acid resistant seamless steel pipes are used for structural parts of stainless and acid resistant steel in petroleum, chemical industry, pipelines, and various applications. The chemical composition and physical properties of the steel should be ensured.
Stainless Steel Pipes
| Type | 201,304,304L,316,316Ti,316L,321,309s,310,904L,410,410s,409,420 420J2,430,444,2205,2507,2304,301,317 |
| Surface Treatment | Bright,Pickling white,Brushed,Color,perforated surface |
| Thickness | 1mm-150mm |
| Technology | seamless,welded |
| Shape | Round,square,rectangle,oval |
Equivalent Grades of 310S
| Grade | UNS No | Old British | Euronorm | Swedish SS | Japanese JIS | ||
| BS | En | No | Name | ||||
| 310S | S31008 | 310S16 | - | 1.4845 | X8CrNi25-21 | 2361 | SUS 310S |

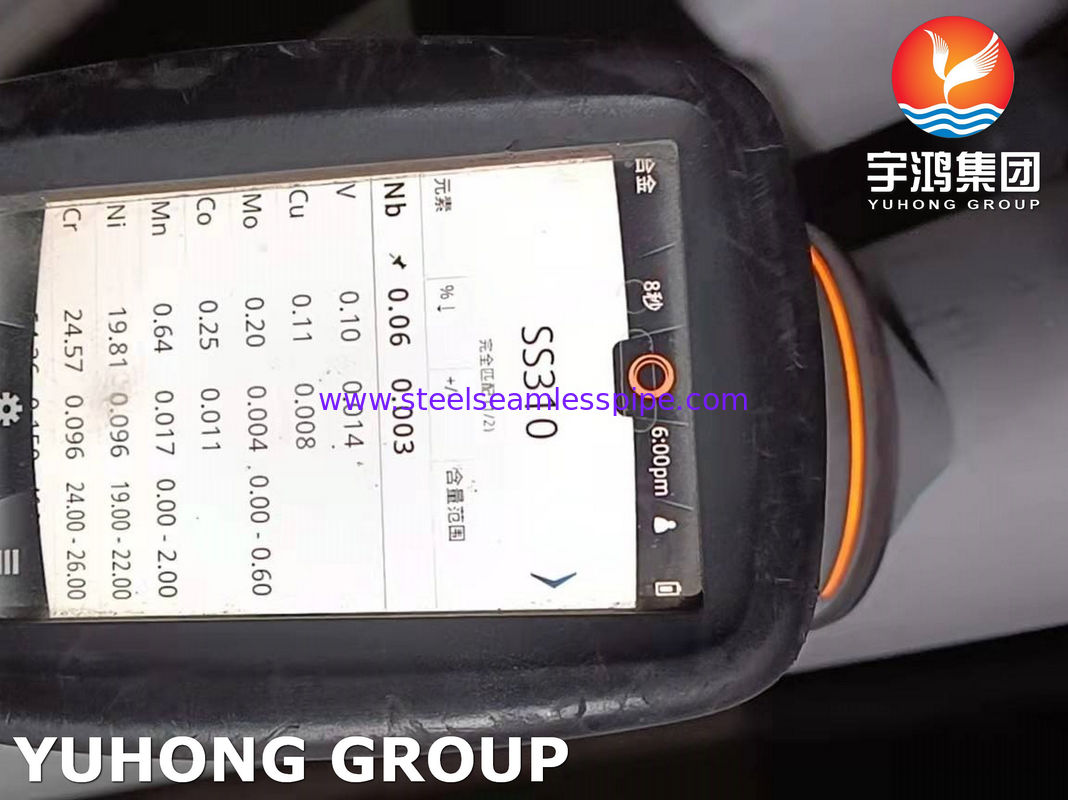

Chemical Composition
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | |
| 310S | min. | – | – | – | – | – | 24.0 | – | 19.0 | – |
| max. | 0.08 | 2.00 | 1.50 | 0.045 | 0.030 | 26.0 | 22.0 | |||
Mechanical Properties
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | |
| Rockwell B (HR B) max | Brinell (HB) max | ||||
| 310S | 515 | 205 | 40 | 95 | 217 |
Physical Properties
| Grade | Density (kg/m3) | Elastic Modulus (GPa) | Mean Coefficient of Thermal Expansion (m/m/0C) | Thermal Conductivity (W/m.K) | Specific Heat 0-1000C (J/kg.K) | Electrical Resistivity (n.m) | |||
| 0-100°C | 0-315°C | 0-538°C | at 100°C | at 500°C | |||||
| 310S | 7750 | 200 | 15.9 | 16.2 | 17.0 | 14.2 | 18.7 | 500 | 720 |
Stainless Steel 310S Pipe Schedule Standard and Specification
| Specifications | ASTM A312 / ASME SA312 |
|---|---|
| Grade | 310S |
| Form | “U” Shape, Square, Pan Cake Coils, Coiled, Rectangular, Round, Hydraulic Tubes. |
| Type | Welded | CDW | ERW | DOM | Seamless | Fabricated | CEW |
| Sizes | Supplier from 5.0 milimeter - 1219.2 milimeter |
| Length | Single Random, Double Random, Cut to length |
| Schedule Thickness Ranges | SCH XS, SCH 40, SCH 80S, SCH 5, SCH 80, SCH XXS, SCH 160, SCH10, All Schedules |
| Surface Finish | 2B, No.1, No.4, No.8 Mirror Finish |
| Delivery Condition | Annealed & Pickled, Polished, Bright & Annealed, etc |
| O.D. | Sizes up to 12 inch NB, 6.00 mm Other Dia. upto 250 mm Other Dia. |
| Thickness | 0.25, 0.28, 0.32, 0.37, 0.41, 0.51, 0.61, 0.71, 0.91, 1.11, 1.15, 1.41 mm Supplier in Mumbai |
| End | Screwed, Beveled, Threaded, Plain |
Application:
