Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | CHINA |
| Brand Name: | YUHONG |
| Certification: | ABS, GL, DNV, NK, PED, AD2000,CCS, ISO 9001-2008 |
| Model Number: | ASTM A182 |
| Minimum Order Quantity: | 5PC |
|---|---|
| Price: | 1-150000 USD |
| Packaging Details: | Ply-wooden Case /Iron Case/ Bundle with plastic Cap |
| Delivery Time: | 10-45 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 2000 pcs/month |
| Product: | Welding Neck Flanges | Material: | Stainless Steel |
|---|---|---|---|
| Standard: | ASTM A182 | Grade: | F347 |
| Type Of Face: | RF | Packing: | Ply-wooden Case /Iron Case/ Bundle With Plastic Cap |

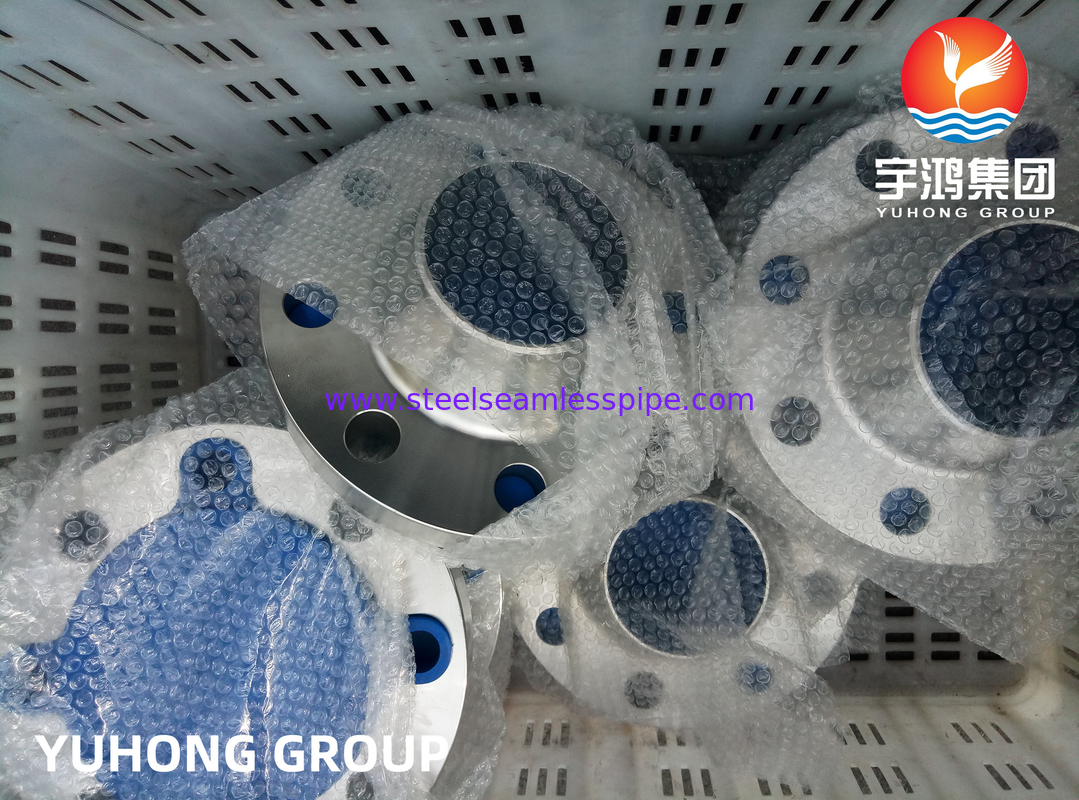

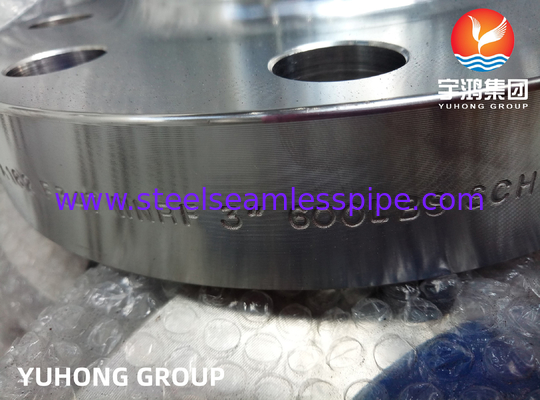

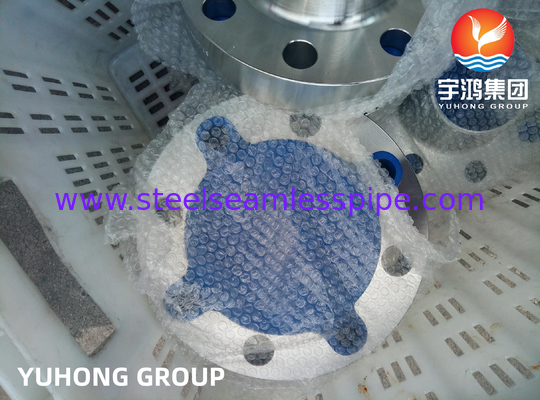

ASTM A182 F347 WN RF Stainless Steel Flanges , Bridas
YUHONG Group can offer ASTM A182 F347 welding neck RF stainless steel flanges / bridas, and our products sell more than 70 countries up to now.
ASTM A182 --- This specification covers forged low alloy and stainless steel piping components for use in pressure systems. Included are flanges, fittings, valves, and similar parts to specified dimensions or to dimensional standards.
F347 is a high temperature stainless steel with good corrosion resistance and high temperature strength. It can adjust its wear resistance and corrosion resistance by adding alloy elements to meet the needs of specific application scenarios. It has many excellent properties, such as corrosion resistance, high temperature resistance, oxidation resistance, tensile resistance, easy processing, etc., so it is widely used in many fields.
Specification of ASTM A182 F347
| Type | Slip-On;Welding-Neck;Blind;Thread;Plate;Socket-Weld,etc |
| Size | Required by clients |
| Flange Face Type | Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ) |
| Equal Standard | UNS S34700;EN 1.4550;JIS SUS347 |
| Flange Value Added Service | Draw / Expansion / Machining / Sand Blasting / Shot Blasting / Galavanizing / Heat Treatment |
| Coating Flanges Face | Zinc Plated, Yellow Transparent, Anti-rust Paint, Cold and Hot Dip Galvanized, Oil Black Paint |
| Flange Packaging | Loose / Bundle / Wooden Pallet / Wooden Box / Plastic Cloth Wraps / Plastic End Caps / Beveled Protector |
Tests Required
Tension Tests/ Hardness Tests/ Corrosion Testing for Austenitic Grades/ Nondestructive Tests,etc

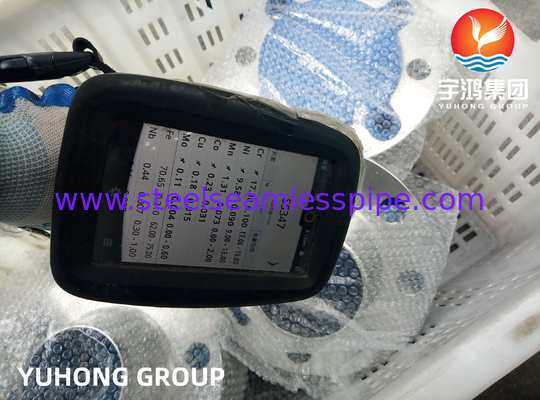

Chemical Composition of ASTM A182 F347
| ELEMENT | COMPOSITION (%) |
| Carbon | 0.08 |
| Manganese | 2.00 |
| Phosphorus | 0.045 |
| Sulfur | 0.030 |
| Silicon | 1.00 |
| Nickel | 9.0-13.0 |
| Chromium | 17.0-20.0 |
Tensile and Hardness Requirements
| Tensile Strength MIN | Yield Strength (0.2%Offset) MIN | Elongation MIN | Reduction of Area min |
| Ksi – 75 , MPa – 515 | Ksi – 30 , MPa – 205 | 30 % | 50 % |
Heat Treating Requirements
| Grade | Heat Treat Type | Temperature min | Cooling Media | Quenching Cool Below |
| F347 | Solution Treat and Quench | 1040℃ | Liquid | 260℃ |
Applications
Fabrication Industry
Natural Gas Industry
Pharmaceutical Industry
Pulp and Paper Industry
Chemical Industry
Oil and Gas Well Piping
Nuclear Fuel Reprocessing
Water Pipeline Industry
Condenser, Heat Exchangers and Piping Systems
