Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | CHINA |
| Brand Name: | YUHONG GROUP |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008 |
| Model Number: | TP410 |
| Minimum Order Quantity: | 500kgs |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Ply-wooden Case/Bundle |
| Delivery Time: | Depends on quantity |
| Payment Terms: | T/T, L/C at sight |
| Supply Ability: | 10000Ton/Month |
| Material Grade: | TP410 | Standard: | ASTM A268 |
|---|---|---|---|

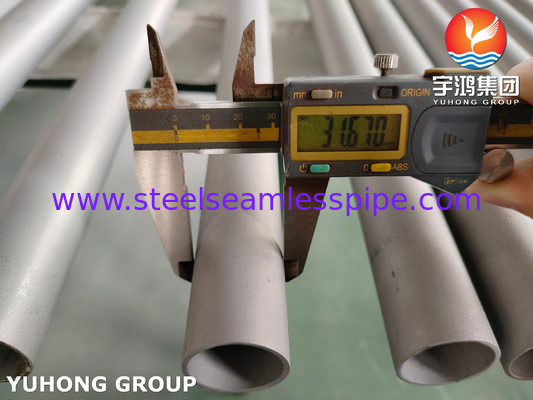

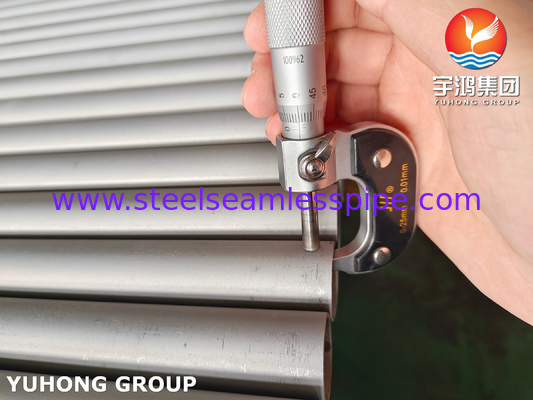

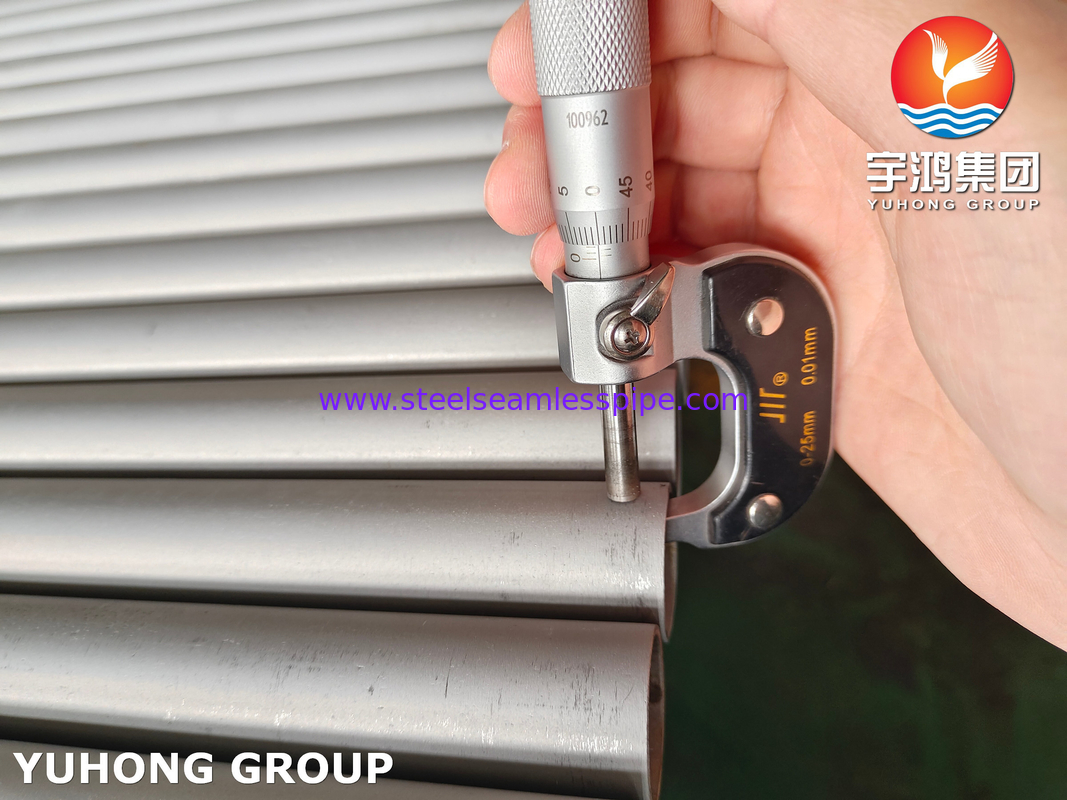

| Size: | 19.05-76.2mm | W.T: | Up To 24mm |
| Length: | Single Random, Double Random & Cut Length | NDT: | ET/HT/UT/PT |
| Packing: | Ply-wooden Case/Bundle | Application: | Oil Gas Heat Exchanger |

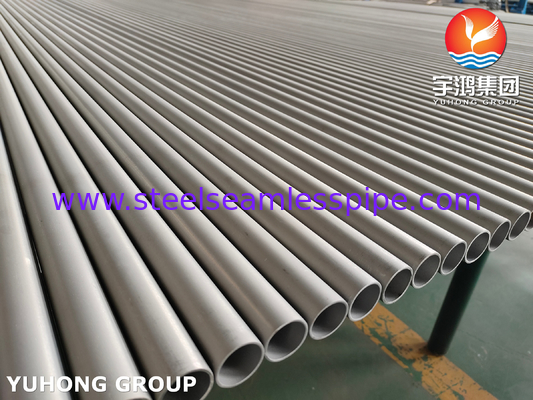

Ferritic Stainless Steel Seamless Tube ASTM A268 TP410 Oil Gas Heat Exchanger
Overview
Through heat treatment can adjust its mechanical properties of stainless steel, in general, is a class of hardenable stainless steel. Typical grades are Cr13 type, such as 2Cr13, 3Cr13, 4Cr13, etc. After quenching, the hardness is high, and different tempering temperatures have different strength and toughness combinations, mainly used for steam turbine blades, tableware, and surgical instruments. According to the differences in chemical composition, martensitic stainless steel can be divided into two categories: martensitic chromium steel and martensitic chromium-nickel steel. According to the differences in organization and strengthening mechanism, it can also be divided into martensitic stainless steel, martensitic and semi-austenitic (or semi-martensitic) precipitation hardening stainless steel and martensitic ageing stainless steel, etc.
Characteristic of ASTM A268 TP410
Grade 410 stainless steel is a general-purpose martensitic stainless steel containing 11.5% chromium, which provides good corrosion resistance. However, the corrosion resistance of Grade 410 steel can be further improved through a number of processes including quenching, tempering and polishing. Quenching and tempering harden Grade 410 steels. They are typically used in applications involving mild corrosion, heat resistance and high strength.
The tubes shall have a hardness number that will not exceed the prescribed Brinell and Rockwell hardness values, TP410, TP430 and TP439 max Rockwell hardness 90HRB, Test report required certification conform to Specification A1016/A1016M.
Several mechanical tests shall be conducted, namely:
| Tension test; |
| Flaring test (for seamless tubes); |
| Flange test (for welded tubes); |
| Hardness test; |
| Reverse flattening test; |
| Intergranular corrosion test; and |
| Hydrostatic or nondestructive electric test. |

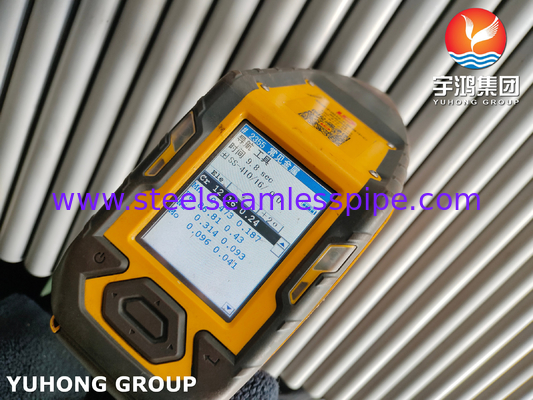

Chemical Composition of ASTM A268 TP410
| C % | Mn % | P % | S % | Si % | Cr % |
|---|---|---|---|---|---|
| 0.15 maximum | 1.00 maximum | 0.040 maximum | 0.030 maximum | 1.00 maximum | 11.5-13.5 |
Mechanical Strength of ASTM A268 TP410
| Tensile Stress, Mpa | Yield Stress, MPa | Elongation, % | Hardness, HB |
|---|---|---|---|
| 415 minimum | 205 minimum | 20 minimum | 207 maximum |
| STANDARD | EN / WERKSTOFF NR. | UNS | JIS | BS | AFNOR |
|---|---|---|---|---|---|
| SS 410 | 1.4006 | S41000 | SUS 410 | 410 S 21 | Z 12 C 13 |
| ASTM A268 Stainless Steel Tubing Sizes Tolerance | |||
| Outside Diameter, In.[Mm] | OD Tolerance, In.[Mm] | Wall Thickness, % | Thin Wall Tubes |
| Up To1⁄2, [12.7], Excl | ±0.005 [0.13] | ±15 | |
| 1⁄2 To 11⁄2 [12.7 To 38.1], Excl/Td> | ±0.005 [0.13] | ±10 | Less Than 0.065 In. [1.6 Mm] Nominal |
| 11⁄2 To 31⁄2 [38.1 To 88.9], Excl | ±0.010 [0.25] | ±10 | Less Than 0.095 In. [2.4 Mm] Nominal |
| 31⁄2 To 51⁄2 [88.9 To 139.7], Excl | ±0.015 [0.38] | ±10 | Less Than 0.150 In. [3.8 Mm] Nominal |
| 51⁄2 To 8 [139.7 To 203.2], Incl | ±0.030 [0.76] | ±10 | Less Than 0.150 In. [3.8 Mm] Nominal |
ASTM A268 TP410 Application
Condenser
Chemical
Boiler
