| Place of Origin: | CHINA |
| Brand Name: | YUHONG HOLDING GROUP |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008 |
| Model Number: | ASTM B337 ASTM B338 ASTM B861 AST B862M B8 |
| Minimum Order Quantity: | 500KGS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Box package |
| Delivery Time: | 10-15 DAYS |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000Ton per month |
| Standard: | ASTM B337 ASTM B338 ASTM B861 ASTM B862 | Material: | Grade 1 Grade 2 |
|---|---|---|---|
| Type: | Seamless, Welded | Test: | NDT(Hydraulic Pressure,Eddy Current) |
| Application: | Industry, Industrial,Heat Exchanger,Medical |

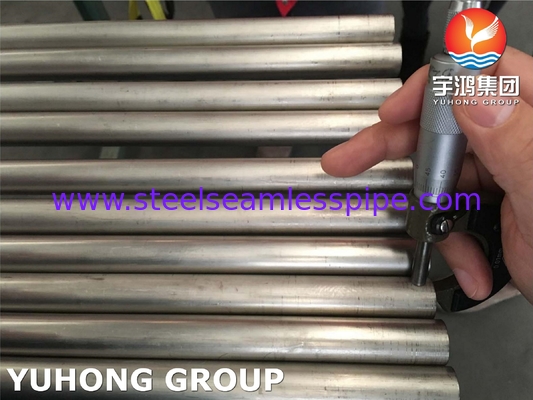

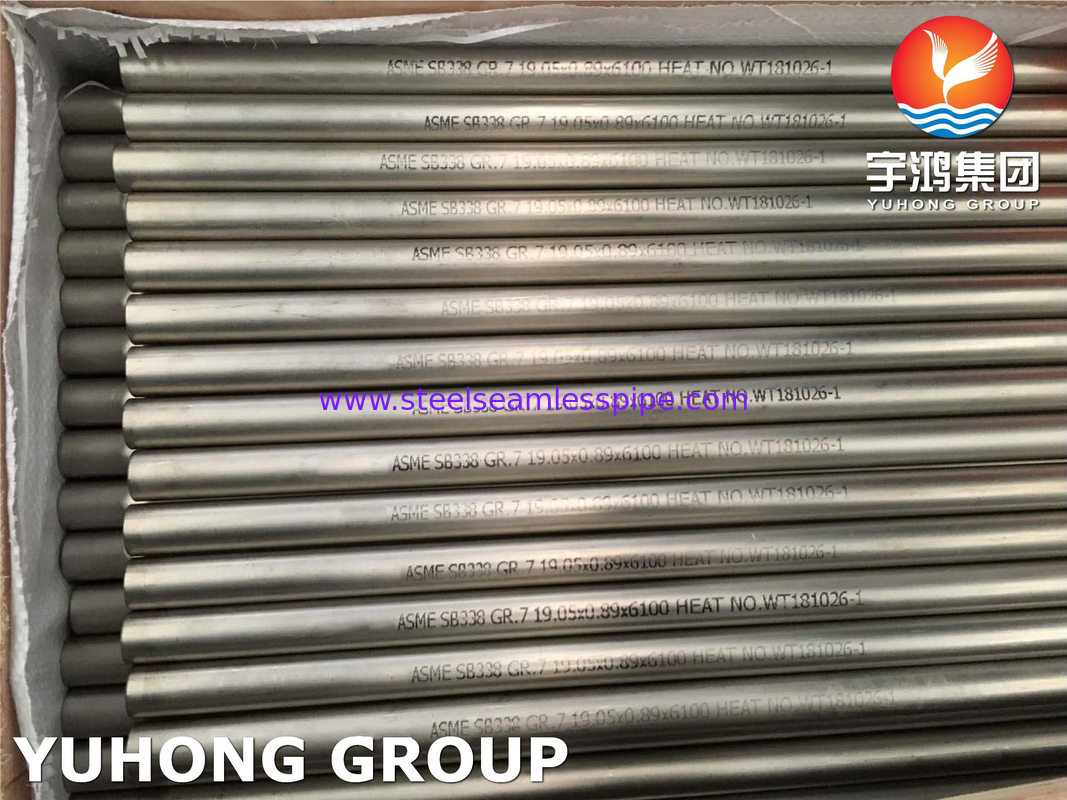

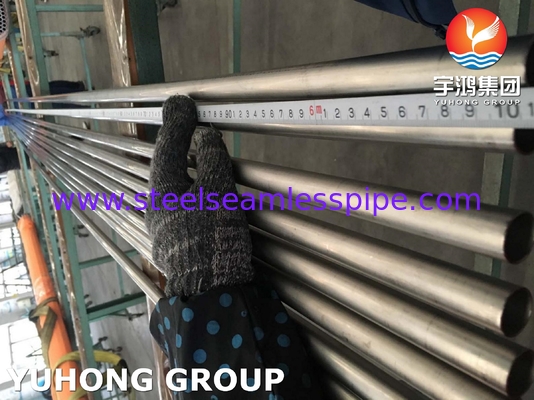

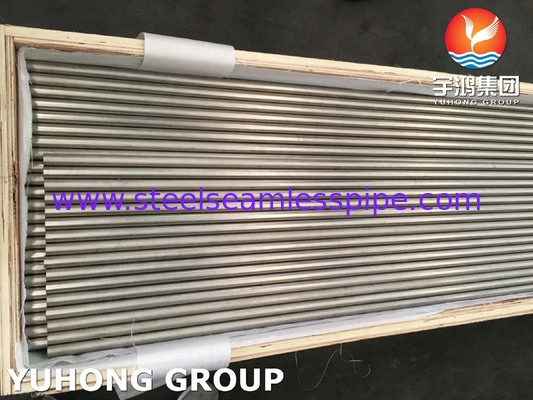

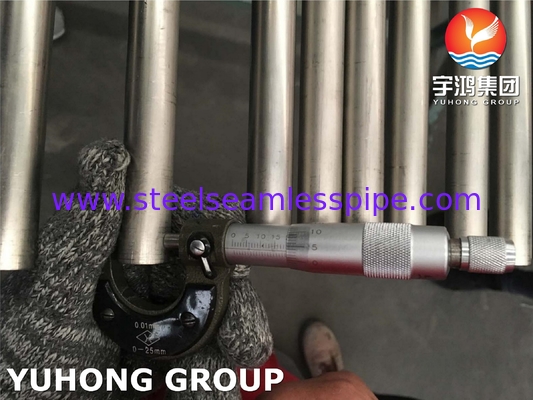

Titanium Seamless Tube ASTM B338 Gr2 Gr9 Titanium Exhaust Pipe Heat Exchanger Tube
Titanium Tube (Ti Tube) is one of the common titanium products and has a superior strength-to-weight ratio and corrosion resistance. We generally divide titanium tubes into two types, one is called the seamless titanium tube, and the other is called the welded titanium tube.
Titanium tubes are light in weight, high in strength, and superior in mechanical properties. They are widely used in heat exchange equipment, such as tube and tube heat exchangers, coil heat exchangers, serpentine tube heat exchangers, condensers, evaporators, and conveying pipelines, etc.
Stanford Advanced Materials (SAM) is a trust-worthy supplier of high-quality Titanium Tube (Ti Tube) that has over two decades in the manufacture and sale of titanium products.
|
Product Name
|
Cp1 Cp2 seamless titanium tube titanium pipe price per kg
|
|
Material
|
Pure titanium and Titanium alloy
|
|
Titanium Grade
|
Grade 1—Unalloyed titanium
Grade 2—Unalloyed titanium
Grade 3—Unalloyed titanium
Grade 7—Unalloyed titanium plus 0.12 to 0.25 %palladium
Grade 9—Titanium alloy (3 % aluminum, 2.5 % vanadium)
Grade 12—Titanium alloy (0.3 % molybdenum, 0.8 % nickel),
|
|
Standard
|
ASTM B338/ASME SB338, ASTM B337/ASME SB337, ASTM B861/ASME SB861, ASTM B862/ASME SB862,AMS4911,AMS4928
|
|
Shape
|
Round Square Rectangle
|
|
Type
|
Seamless/Welded
|
|
|
Seamless titanium tube: Titanium sponge—Compacting electrodes—melting—Forge—Bar billets—Extruding—Rolled—Straightening—Seamless tube
Welded titanium tube: Titanium sponge—Compacting electrodes—melting—Forge—Plate billets—Hot rolled—Cold rolled—Titanium scrap—Welded—Welded tube |
|
Surface
|
Polishing, picking, acid washed, black oxide
|
|
Application
|
1) General service industries (petroleum, food, chemical, paper, fertilizer, fabric, aviation and nuclear
2) Fluid, gas and oil transport
3) Pressure and heat transmission
4) Construction and ornament
5) Boiler heat exchangers
6) Motorbycle and bike
|
|
Material Milling Certificate
|
According to. EN 10204.3.1
Including Chemical composition and Mechanical property |
Titanium Seamless Tube: Extruded pipe blanks are cold-rolled and annealed.
Titanium Welded Tube: Made from titanium strip.
Titanium Tube can be used as:
-Heat exchangers
-Condensers all kinds of corrosive fluid transmission pipeline systems
-Titanium bicycle tubes
-Automobile exhaust pipes
-Offshore aquaculture, etc.
