Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | China |
| Brand Name: | YUHONG |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015 |
| Model Number: | ASTM A182 F53, UNS S32750 |
| Minimum Order Quantity: | 1 Piece |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Ply-wooden Case / Pallet |
| Delivery Time: | 5 - 60 Work days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | According to Clients' Requirement |
| Standard: | ASTM A182, ASME SA182 | Material Grde: | F53, UNS S32750 |
|---|---|---|---|
| Size: | 1/2''-48''(DN15-DN1200) | Thickness: | SCH10-XXS(2-60mm) |
| Type: | Elbow,Nipple,Pipe Threaded,Reducer | Technics: | Forged |
| Thread: | BSPP BSPT NPT | Application: | Construction,gas And Oil Pipes,air,Steam,Petroleum Gas Water |
| High Light: | Forged Steel Pipe Nipple,Stainless Steel Threaded Nipple F53,Super Duplex Stainless Steel Threaded Nipple |
||

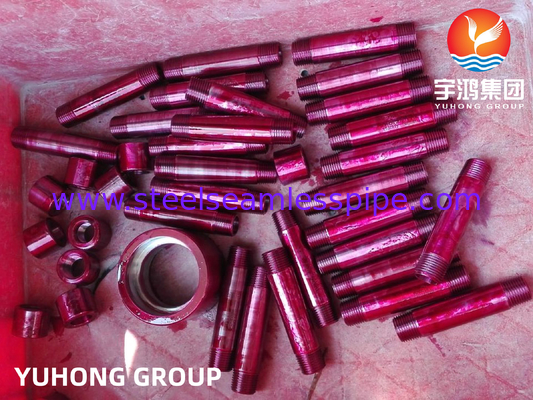

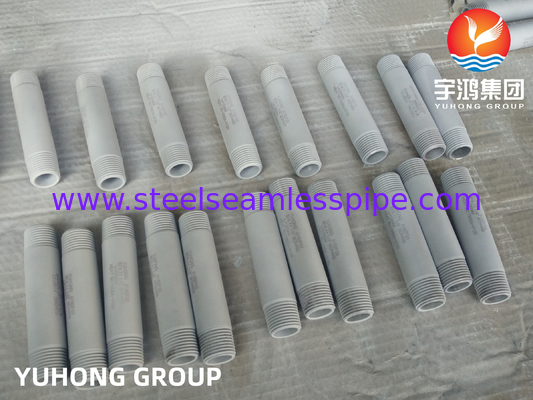

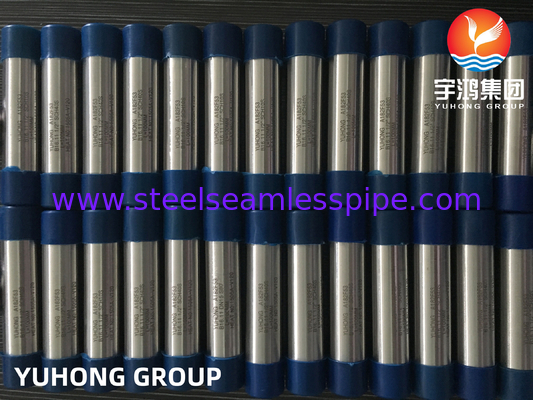

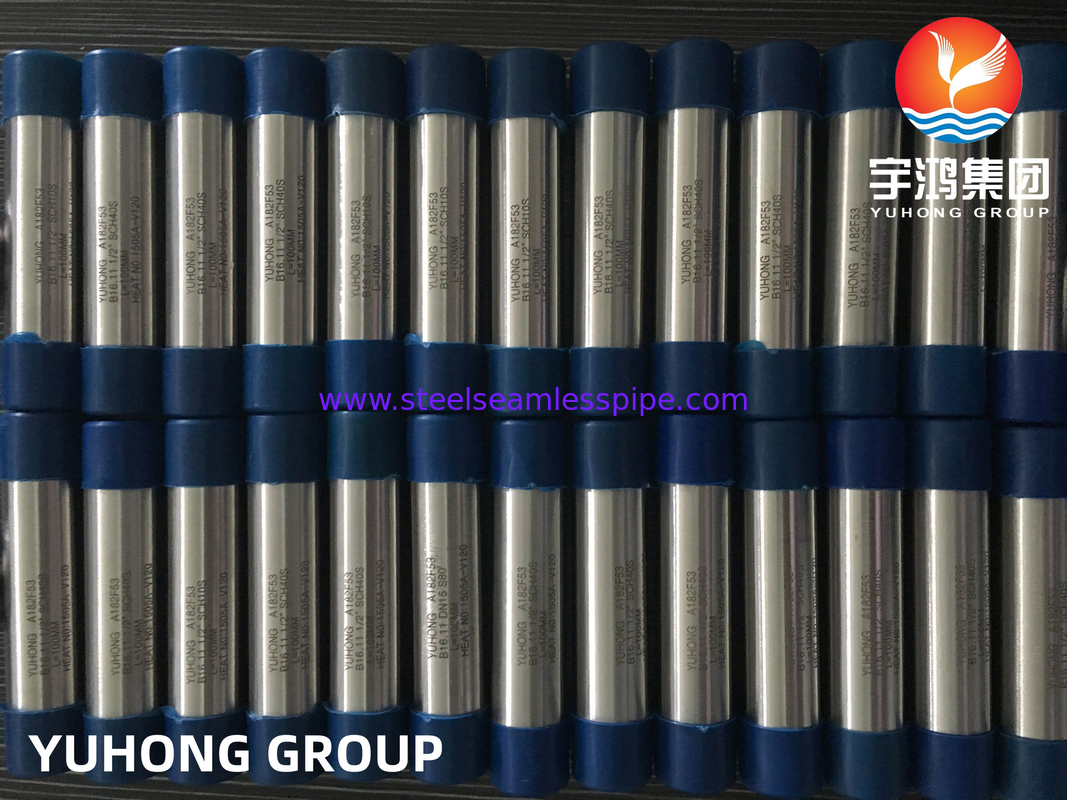

Forged Fittings ASTM A182 F53 UNS S32750 Super Duplex Stainless Steel Threaded Nipple
ASTM A182 F53(UNS S32750) is a duplex stainless steel grade with excellent strength and corrosion resistance. This steel has superior resistance to pitting, crevice corrosion, and stress corrosion cracking, especially in chloride-rich environments. F53 also offers excellent mechanical properties, including increased tensile strength, good fatigue resistance, and flexibility.
| Standards | ASTM A182 / ASME SA182 |
| Dimension Standard | ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 |
| Size | 1/8” NB to 4” NB |
| Class | 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS |
| Type | Socketweld Fittings, Screwed-Threaded Fittings |
Chemical Composition:
| C | Si | Mn | P | S | Cr | Ni | Mo | N | Cu |
| 0.03 max | 0.8 max | 1.2 max | 0.035 max | 0.02 max | 24-26 | 6-8 | 3-5 | 0.24-0.32 | 0.5 max |
Mechanical Properities:
| Density | Melting Point | Tensile Strength, min | Yield Strength (0.2%Offset), min | Elongation, min |
| 7800 kg/m3 | 1350 °C (2460 °F) | 80000Psi, 550MPa | 116000Psi, 800MPa | 15 % |
Applications:
Oil and Gas Plants
Food Processing Equipments
Power Industries
Ship Building Equipments
Paper and Pulp Plants
Cement Equipments
Chemical Industries
Water Pipe Line
