Place of Origin: | China |
Brand Name: | YUHONG |
Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015 |
Model Number: | TP316Ti, UNS S31635 |
Minimum Order Quantity: | 100 KGS |
---|---|
Price: | Negotiable |
Packaging Details: | Ply-Wooden Case /Iron Case/ Bundle with Plastic Cap |
Delivery Time: | 5 - 90 Work Days |
Payment Terms: | T/T, L/C |
Supply Ability: | According to Clients' Requirement |
Standard: | ASTM A312, ASME SA312 | Material Grade: | TP316Ti, UNS S31635 |
---|---|---|---|
Type: | Seamless, Welded | Length: | 6 Meters Or Customized |
Outer Diameter: | 6mm-630mm Or Customized | Thickness: | 1mm-60mm |
Technique: | Cold Rolled Hot Rolled | Application: | Decoration,Construction,boiler,oil And Gas,electric |
High Light: | TP316Ti Seamless Stainless Tube,Heat Exchanger Seamless Stainless Steel Tubing,UNS S31635 Stainless Steel Seamless Pipes |

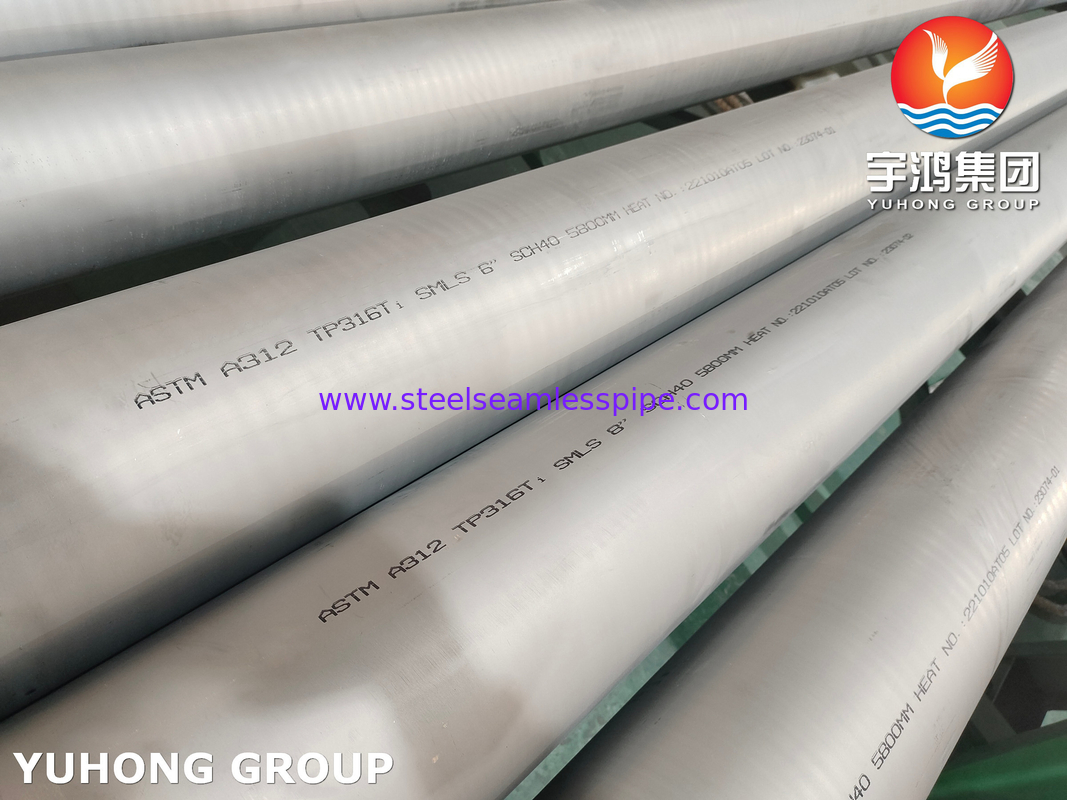

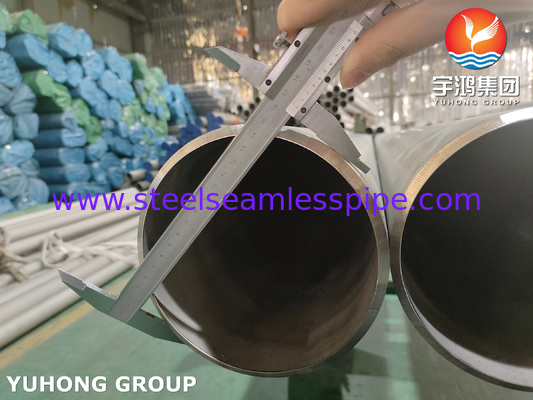

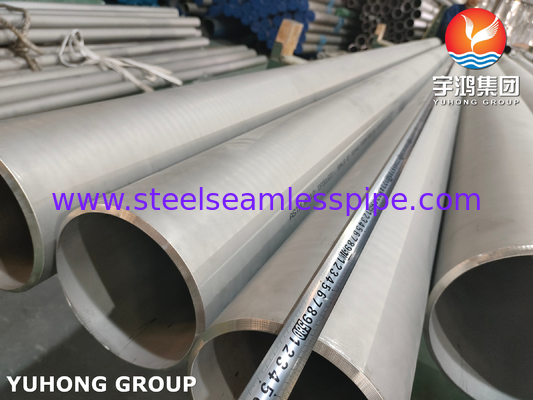

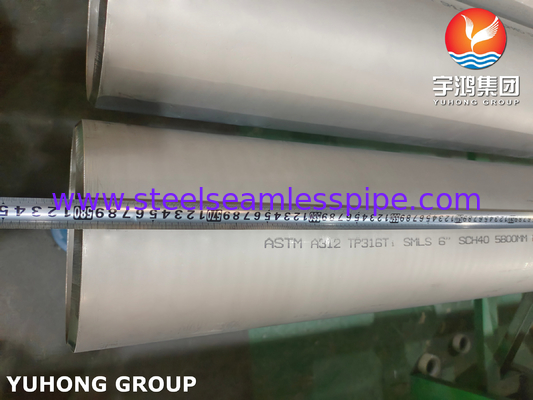

ASTM A312 TP316Ti (UNS S31635) Stainless Steel Seamless Pipes For Petrochemical Applications
ASTM A132 TP316Ti (UNS S31635) is a titanium stabilized type of TP316 molybdenum-bearing austenitic stainless steel. The corrosion resistance properties of TP316 and TP316ti Seamless Pipe are similar. But due to the addition of titanium, the TP316Ti offers better weldability and exhibits excellent performance in high temperatures. Our company has abundant manufacturing experience for such stainless steel seamless pipes with high quality and competitive prices.
Features:
High Strength
Resistant High Mechanical Stresses
Good Formality
Resistant to High Pressure and High Temperature
Specifications | ASTM A312, ASME SA312 |
Sizes | 1/2” – 48” |
Schedule | SCH20 To SCHXXS |
Types | ERW / Welded / Seamless / Fabricated / LSAW |
Forms | Rectangular, Round, Square, Hydraulic Etc. |
Length | 6m Or As Custom, Double Random, Single Random & Cut Length. |
Ends | Beveled End, Plain End, Treaded |
Equivalent Grades:
Standard | SS 316Ti |
UNS No | S31635 |
Werkstoff Nr. | 1.4571 |
EN | X6CrNiMoTi17-12-2 |
JIS | SUS 316Ti |
AFNOR | Z6CNDT17-12 |
BS | 320S31 |
GOST | 08Ch17N13M2T |
Chemical Composition:
C | Si | Mn | P | S | Cr | Ni | Mo | Ti |
0.08 max | 0.75 max | 2 max | 0.045 max | 0.03 max | 16-18 | 10-14 | 2-3 | 5*(C+N)-0.7 |
Mechanical Properties:
Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
8 g/cm3 | 1399 °C (2550 °F) | 75000Psi, 515Mpa | 30000Psi, 205MPa | 35 % |
Applications:
Fertilizers Industries
Sugar Industries
Oil & Gas Industries
Chemical Industries
Petrochemical Industries
Food Processing Industries
Gas Processing Industries
Power Generation Industries
Pulp and Paper Industries
Pharmaceutical Industries
