Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | CHINA |
| Brand Name: | YUHONG |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008 |
| Model Number: | ASTM A179 |
| Minimum Order Quantity: | 50PC |
|---|---|
| Price: | 1-120000 USD |
| Packaging Details: | Ply-wooden Case /Iron Case/ Bundle with plastic Cap |
| Delivery Time: | 10-75 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1200 tons/month |
| Product: | Fin Tube | Type: | Embedded G-Type |
|---|---|---|---|
| Standard: | ASTM A179 | Bare Tube Material: | A179 |
| Fin Material: | Al 1060 | Length: | As Required |
| Packing: | Ply-wooden Case /Iron Case/ Bundle With Plastic Cap | ||
| High Light: | Al Aleta Embedded Fin Tube,ASTM A179 Finned Heat Exchanger Tube,G-Type Embedded Fin Tube |
||

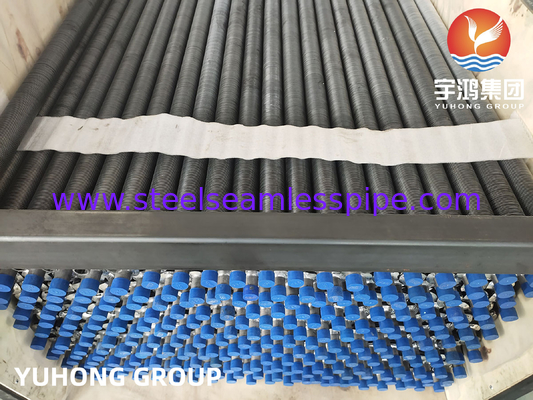

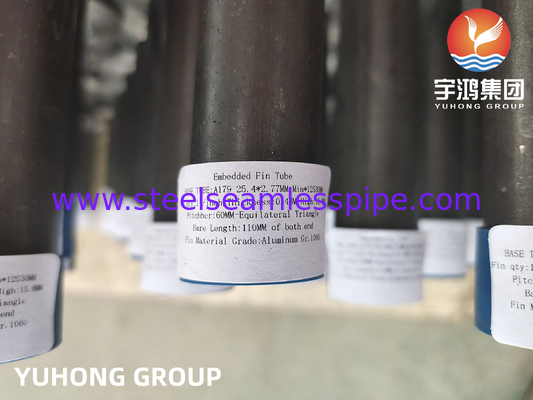

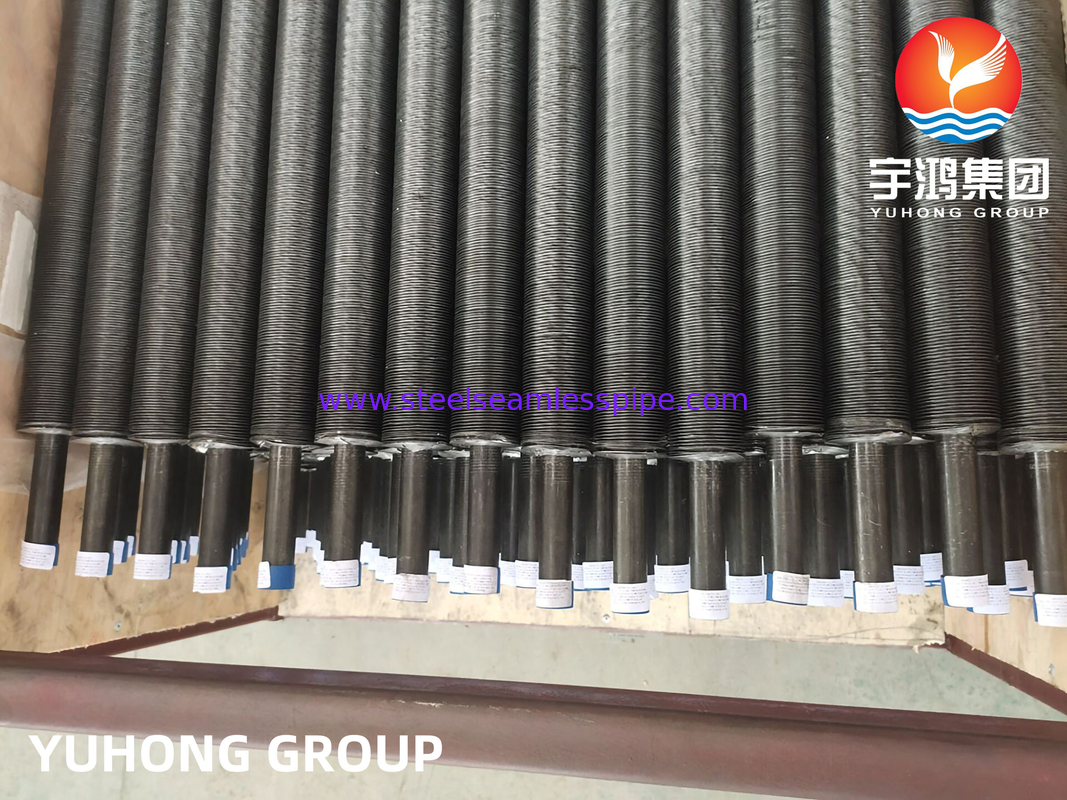

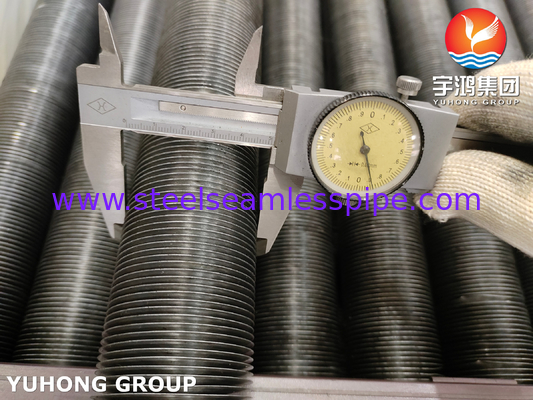

ASTM A179 + Al Aleta Embedded Finned Tube G-Type Para Calderas
YUHONG Group offers ASTM A179 Embedded G-Type Aluminum Finned Tube / Tubo Aletado and we sell this fin tubes in over 70countries.
We can handle kinds of projects in various industries, such as heat exchanger / boiler projects, marine projects, oil & gas projects etc in petroleum industry,power industry,chemical industry and heat service systems,etc.
Fin tubes have a finned surface, which increases their surface area and allows them to transfer heat more efficiently. Because of that,this makes them ideal for applications where high heat transfer rates are required.
Embedded G type Finned Tube provides a perfect connection between the fin and the tubes . The main design is that through professional equipment groove the tubes and fin insert fins into the helical groove. Finally combined the fin and tubes as intergral.Embedded Fin tubes can be used in higher temperatures and are very durable and they are best suited for the usages that involve high thermal cycling or high temperatures and where the fin side will be subjected to regular cleaning .
Features Of G-Type Embedded Finned Tube
Easy installation
High-performance
Less space required
Optimized surface
Less energy consumption
Increased reliability
Low maintenance
High mechanical resistance
Compact design
Average corrosion protection
Finest technology used
Specifications For Various Types We Can Offer
| Type | Description | Base tube | Fin specification (mm) | ||
| O.D. (mm) | Fin pitch | Fin height | Fin thick | ||
| Embedded | G-type fin tueb | 16-63 | 2.1~5 | <17 | ~0.4 |
| Extruded | Single metal combined metal | 8-51 | 1.6~10 | <17 | 0.2-0.4 |
| Low fin tube t-type fin tube | 10-38 | 0.6~2 | <1.6 | ~0.3 | |
| Bamboo tube corrugated tube | 16-51 | 8.0~30 | <2.5 | / | |
| Wound | l/kl/ll type fin tube | 16-63 | 2.1~5 | <17 | ~0.4 |
| String | String fin tube | 25-38 | 2.1-3.5 | <20 | 0.2-0.5 |
| U-type | U-type tube | 16-38 | / | / | / |
| Welding | HF-welding fin tube | 16-219 | 3~25 | 5~30 | 0.8-3 |
| H/HH type fin tube | 25-63 | 8~30 | <200 | 1.5-3.5 | |
| Studed fin tube | 25-219 | 8~30 | 5~35 | φ5-20 | |
Base Tube Material : Stainless Steel, Carbon Steel, Alloy Steel, Titanium, Copper, Duplex Stainless Steel, Inconel etc.
(all material in the theoretical limit)
Fin General Material : Aluminum, Copper, etc.
Detailes Of ASTM A179 Tube
ASTM A179 this specification covers minimum-wall-thickness, seamless cold-drawn low-carbon steel tubes for tubular heat exchangers, condensers, and similar heat transfer apparatus.Tubes shall be heat treated after the final cold draw pass at a temperature of 1200°F(650℃ )or higher.
Chemical Composition (%)
| Grade | C | Mn | P | Su |
| A179 | 0.06-0.18 | 0.27-0.63 | 0.035, max | 0.035, max |
Mechanical Properties
| Grade | Tensile Strength,min | Yield Strength (0.2%Offset,min) | Elongation |
| A179 | ksi-47,MPa-325 | psi-26,MPa-180 | 35% |
Application
Steam Coils
Air Perheaters / Air Cooling Heat Exchanger
Air Coolers / Oil Coolers / Hydrogen Coolers / Generator Coolers
Waste Heat Recovery
Air Conditioning / Air Heaters
Boiler / Steam Condensers
Heat Pipe Technology
