| Place of Origin: | China |
| Brand Name: | YUHONG |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008 |
| Model Number: | ASTM B983 Monel K-500 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Ply-wooden Case /Iron Case/ Bundle with plastic Cap/Woven Case |
| Delivery Time: | 30-75 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000 tons per month |
| Material: | ASTM B983 Monel K-500 | NDT: | UT/PT |
|---|---|---|---|
| Shape: | Round, Square, Hexagonal, Rectacgular | Application: | Marine And Offshore,chemical Process |

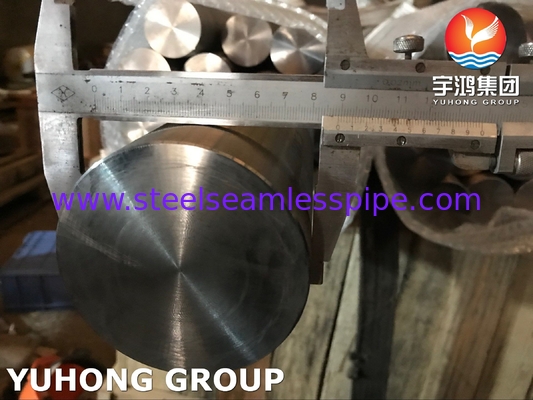

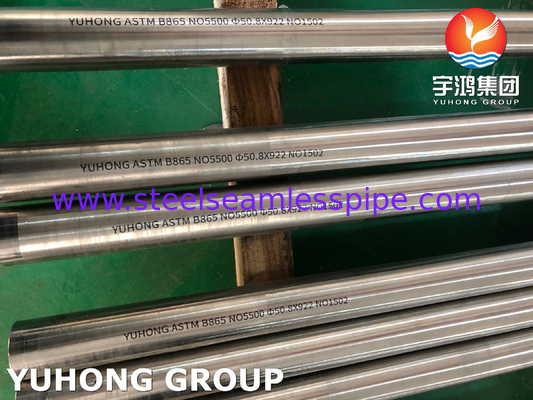

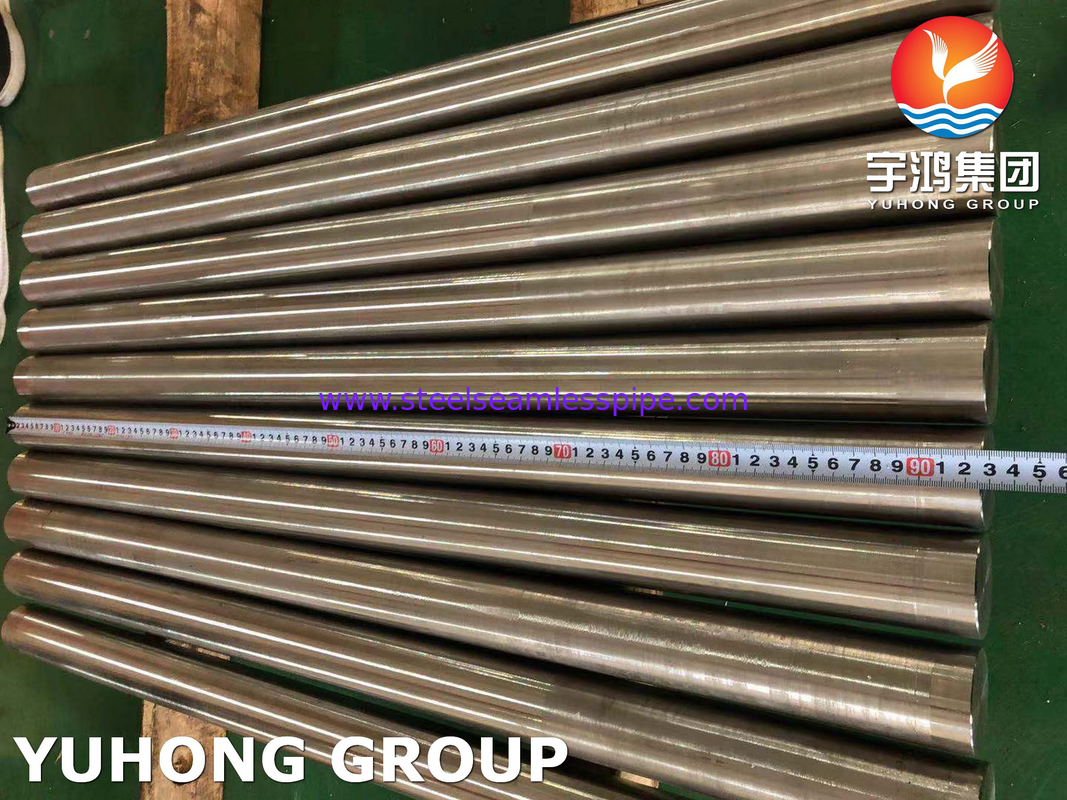

ASTM B983 N05500 Monel K-500 Nickel Alloy Round Bar for Marine, Offshore
ASTM B983 N0500 is a specification standard set by the American Society for Testing and Materials (ASTM) for nickel alloy bars. This specific grade, N0500, refers to a nickel-copper alloy known as Monel 500.
Monel 500 is a corrosion-resistant alloy that offers high strength and excellent resistance to a wide range of corrosive environments, including seawater and chemical environments. It is composed of approximately 65-70% nickel and 29-33% copper, with small amounts of iron, manganese, carbon, and silicon.
The ASTM B983 specification covers the requirements for Monel 500 bars in various sizes and shapes, including round bars, square bars, hexagonal bars, and rectangular bars. These bars are typically used in applications that require resistance to corrosion and erosion, such as marine and offshore equipment, chemical processing plants, oil and gas industry components, and heat exchangers.
The ASTM B983 N0500 standard provides guidelines for the chemical composition, mechanical properties, dimensions, tolerances, and testing requirements of Monel 500 bars. It ensures that the bars meet the necessary quality and performance standards for their intended applications.
It is always recommended to consult the specific ASTM B983 standard and work with reputable suppliers and manufacturers to ensure that the Monel 500 bars you are considering meet your exact requirements and specifications.
|
Density
|
Melting Point
|
Tensile Strength
|
Yield Strength (0.2%Offset)
|
Elongation
|
|---|---|---|---|---|
|
8.44 g/cm3
|
1350 °C (2460 °F)
|
Psi – 160000 , MPa – 1100
|
Psi – 115000 , MPa – 790
|
20 %
|
|
Grade
|
Ni
|
Fe
|
C
|
Mn
|
Si
|
Cu
|
Al
|
S
|
Ti
|
|---|---|---|---|---|---|---|---|---|---|
|
Monel K500
|
63.0 min
|
0.5 – 2
|
0.25 max
|
1.5 max
|
0.5 max
|
27.0 – 33.0
|
2.3 – 3.15
|
0.010 max
|
0.35 – 0.85
|
|
STANDARD
|
WERKSTOFF NR.
|
UNS
|
|---|---|---|
|
Monel K500
|
2.4375
|
N05500
|
Application of Monel K500
1. Marine and Offshore: Monel K-500 bars are commonly used in marine environments for components such as propeller shafts, pump shafts, and valves. Its resistance to saltwater corrosion makes it suitable for applications in seawater environments.
2. Chemical Processing: Monel K-500 bars are utilized in chemical processing plants where resistance to corrosive chemicals is crucial. They can be found in equipment such as pumps, valves, heat exchangers, and reaction vessels.
3. Oil and Gas Industry: Monel K-500 bars are well-suited for use in oil and gas production and refining equipment. They are often utilized in downhole equipment, valves, and fittings due to their resistance to sour gas environments and high strength properties.
4. Aerospace Industry: Monel K-500 bars find their application in the aerospace industry, specifically in components like aircraft fuel and hydraulic lines. The alloy's strength and corrosion resistance make it suitable for these demanding applications.
5. Power Generation: Monel K-500 bars are utilized in power generation equipment, including turbine blades, shafts, and fasteners. Their resistance to high-temperature environments and excellent mechanical properties make them suitable for such applications.
6. Valve and Pump Components: Monel K-500 bars are commonly used for valve stems, seats, and bodies in various industries. Their resistance to corrosion, erosion, and wear make them well-suited for these critical components.
