Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | CHINA |
| Brand Name: | YUHONG |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008 |
| Model Number: | ASME SA182 F316L |
| Minimum Order Quantity: | 10 PC |
|---|---|
| Price: | 1-100000 USD |
| Packaging Details: | Ply-wooden Case /Iron Case/ Bundle with plastic Cap |
| Delivery Time: | 5-65 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1000 tons/month |
| Standard: | ASME SA182 | Material: | Stainless Steel |
|---|---|---|---|
| Grade: | F316L | Product: | Tubesheet |
| Use: | Heat Exchanger, Boiler, Pressure Vessel, Chemical Reactor, Power Plant, Energy , Petrochemical | Size: | As Per Client's Drawing |

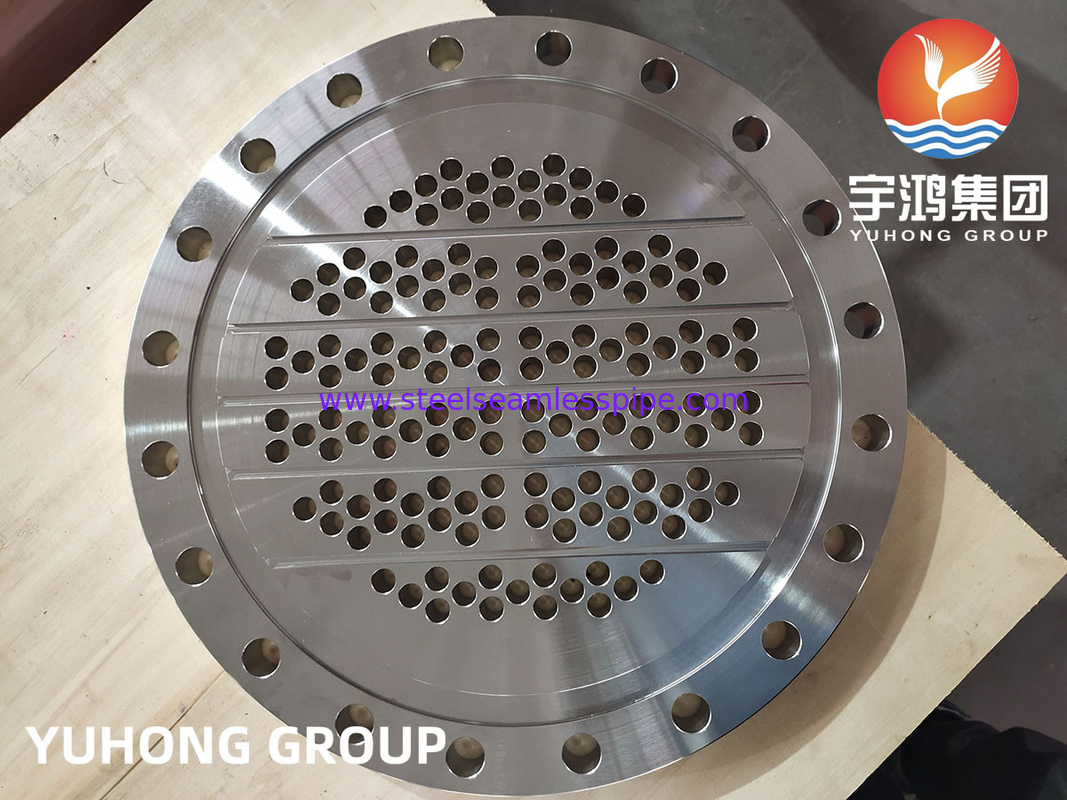

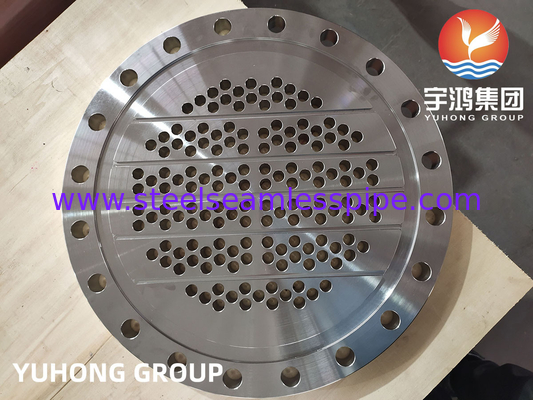

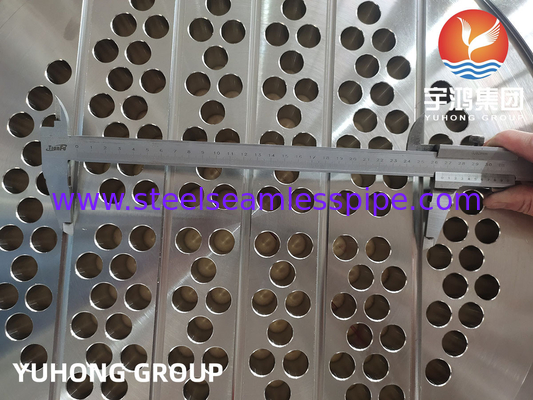

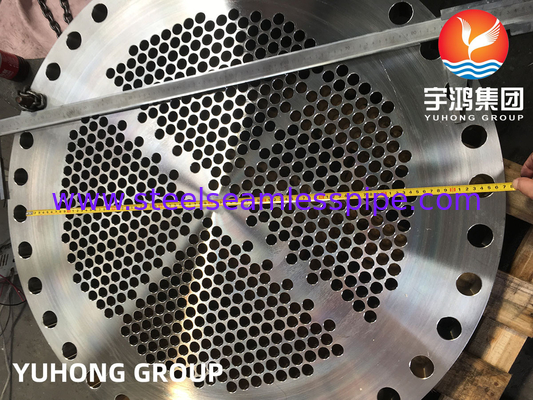

ASME SA182 F316L SS Baffle Tubesheet For Heat Exchanger , Placa Caldera
YUHONG supplies ASME SA182 F316L SS tubesheet and we sell these products with high quality in many years.
A tube sheet is a flat plate used to support and contain a series of tubes in various types of heat exchangers, boilers and condensers. It is usually made of metal, such as stainless steel or carbon steel, and is usually designed with holes or tube perforations into which the tube is inserted and secured.
Besides,the tube sheet acts as a rigid barrier between the fluid within the tube and the shell or chamber surrounding the tube. It provides structural integrity, prevents fluid leakage, and allows efficient heat transfer between the pipe and the surrounding media.
ASTM A182/SAME SA182 This specification covers forged low alloy and stainless steel piping components for use in pressure systems. Included are flanges, fittings, valves, and similar parts to specified dimensions or to dimensional standards.
Advantage
1. A182 F316L is a low-carbon, high-molybdenum stainless steel grade that offers excellent resistance to corrosion, especially in corrosive environments. This corrosion resistance helps to prolong the lifespan of the tubesheet.
2. A182 F316L has good mechanical properties, including high tensile strength and yield strength. This strength tubesheet to withstand high pressure and temperature conditions, making it suitable for use in various industries where there is a need for strong and reliable performance.
3. A182 F316L exhibits good heat resistance, making it suitable for applications involving high-temperature environments. This property is particularly important for tubesheets used in heat exchangers and boilers, as they are exposed to elevated temperatures.
4.F316L stainless steel is relatively easy to fabricate, weld, and form into desired shapes.
5. A182 F316L is highly resistant to pitting and crevice corrosion, making it ideal for use in industries that require hy, such as pharmaceutical, food and beverage, and dairy industries. Its smooth surface also helps to prevent bacterial growth and contamination.
6.A182 F316L tubesheets have a long their excellent corrosion resistance and mechanical properties. This reduces the frequency of replacements and maintenance, resulting in cost savings in the long run.
Chemical Composition Of ASTM A182 F316L
| C | Mn | P | S | Si | Ni | Cr | Mo | N |
| 0.08 | 2 | 0.045 | 0.03 | 1 | 11-14 | 16-18 | 2-3 | 0.08-0.2 |
Physical Properties Of ASTM A182 F316L
| Density | 8.0 g / m³ |
| Melting Point | 1399 ℃ |
Mechanical Properties Of ASTM A182 F316L
| Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Psi – 75,000 , MPa – 515 | Psi – 30,000 , MPa – 205 | 35 % |
Applications
Chemical processing
Maritime applications
Oil and gas industries
Pharmaceutical
Food and beverage processing
Dairy industries
etc
