Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | China |
| Brand Name: | YUHONG |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015 |
| Model Number: | UNS S31254, 254SMO |
| Minimum Order Quantity: | 200 KGS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Ply-Wooden Case /Iron Case/ Bundle with Plastic Cap |
| Delivery Time: | 5 - 90 Work Days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | According to Clients' Requirement |
| Standard: | ASTM A312, ASME SA312 | Material Grade: | UNS S31254, 254SMO |
|---|---|---|---|
| Outer Diameter: | 6mm-630mm Or Customized | Thickness: | 0.1mm-60mm |
| Length: | 3-6M Or As Customized | Finish: | Annealed & Pickled |
| Technique: | Cold Rolled Hot Rolled,Cold Drawn | Applications: | Industry,construction,boiler,oil And Gas,Oil Gas Sewage Transport |

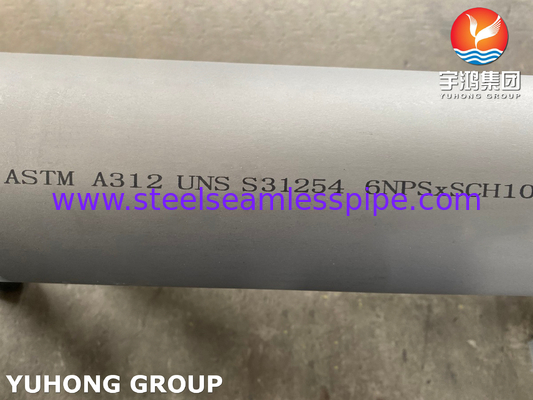

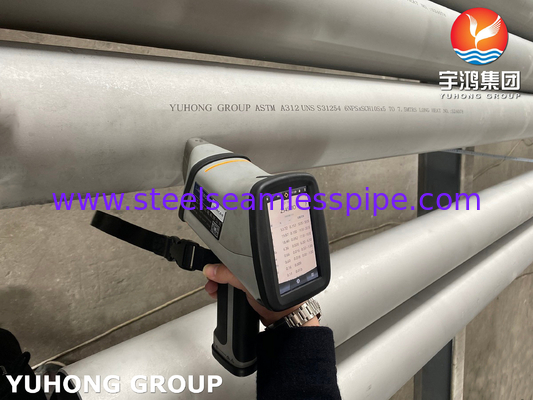

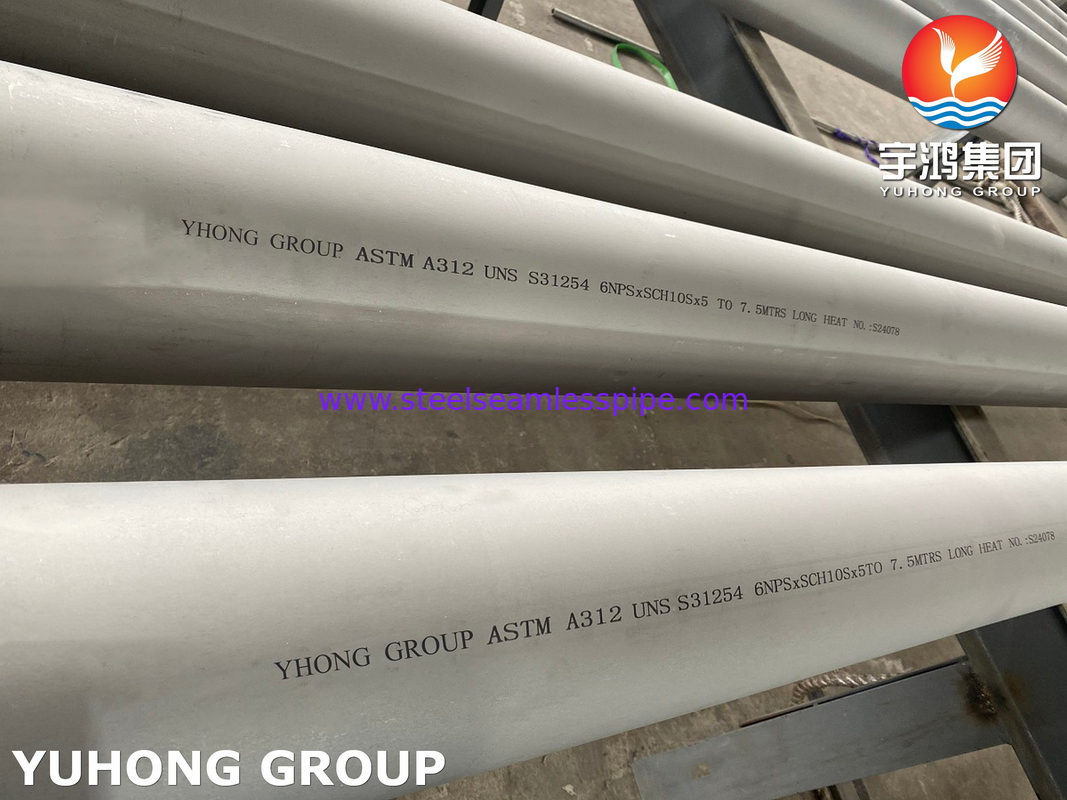

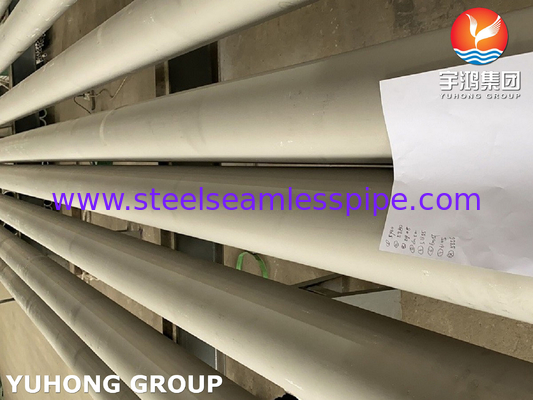

ASTM A312 UNS S31254, 254SMO Duplex Stainless Steel Seamless Pipe For Oil And Gas Plant
ASTM A312 UNS S31254 / 254SMO Duplex Stainless Steel Pipes are a high-alloy austenitic stainless steel developed for using in seawater and other aggressive chloride-bearing media. It is especially developed for oil and gas industry, paper and pulp industry and offshore platforms. Due to the addition of chromium and molybdenum, it can resists a wide range of acids. 254SMO Stainless Steel Pipe has excellent resistance to pitting and crevice corrosion, good weldability, high resistance to general corrosion and stress corrosion cracking, high strength.
Specifications:
| Specifications | ASTM A 312, ASME SA 312 |
| Grade | UNS S31254, 254SMO |
| Size | 1/2" – 48" |
| Specialized in | Large Diameter Size |
| Thickness | SCH 10 To SCH XXS |
| Types | Seamless / ERW / Welded / Fabricated |
| Length | 6M Or As Custom, Single Random, Double Random & Cut Length. |
| End | Plain End, Beveled End, Treaded |
Features:
High strength
Good weldability
Excellent resistance to pitting and crevice corrosion
High resistance to general corrosion and stress corrosion cracking
Chemical Compositions:
| C | Cr | Cu | Mn | Mo | N | Ni | P | Si | S |
| 0.02 Max | 19.5-20.5 | 0.5-1 | 1 Max | 6.0-6.5 | 0.18-0.22 | 17.5-18.5 | 0.03 Max | 0.8 Max | 1.01 Max |
Mechanical Properties:
| Tensile Strength, min | Yield Strength 0.2% Proof, min | Elongation (% in 50mm), min | Hardness | |
| Rockwell B (HR B), max | Brinell (HB), max | |||
| 650 MPa | 300 MPa | 35 % | 50 | 270 |
Applications:
Saltwater Handling System
Oil And Gas Plant
Food Processing Equipment
Chemical Industry
Pulp And Paper Industry
Flue-gas Cleaning
Desalination
Heat Exchangers
Tanks And Pipelines
