Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | CHINA |
| Brand Name: | YUHONG |
| Model Number: | JIS G3459 SUS304 |
| Minimum Order Quantity: | 100 KGS |
|---|---|
| Price: | NEGOTIABLE |
| Packaging Details: | Ply-wooden Case /Iron Case/ Bundle with plastic Cap |
| Delivery Time: | 20-80 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1500 Tons Per Month |
| Certification: | ISO, SGS, BV, ISO&SGS, ISO/CE/SGS | Steel Grade: | 300 Series, Stainless Steel 304/316L, 400 Series, X5CrNi18-20, 200 Series |
|---|---|---|---|
| Type: | Seamless, Welded, Round Pipe | Standard: | ASTM, AISI, GB, DIN, JIS |
| Length: | 3000-6000mm, Customized, 1800max, 11.8m Or As Required, 8m | Thickness: | 0.4-30mm, 1.0mm, 0.6-2500mm,1-60mm, 0.6-25mm |
| Technique: | Cold Rolled Hot Rolled, Cold Drawn, Extrusion, Cold Drawn/Cold Rolling Or Both Of Them | Product Name: | Stainless Steel Pipe, 304 304L 316 316L 321 310S Stainless Steel Welded/Seamless Tube |
| Material: | 200 Series/300 Series/400 Series, 601 625 800 825, Stainless Steel, SS 201/304/316, X5CrNi18-20/1.4301 | Outer Diameter: | 6-630mm, 6-762mm, 6-860mm, Customized |
| Grade: | 201/202/304/304L/316/316L/321/321H/347/347H/310S/410/420/430/440/439, Etc | Finish: | Brush Polish, Cold Drawn, Bright Annealed Or Un Annealed |

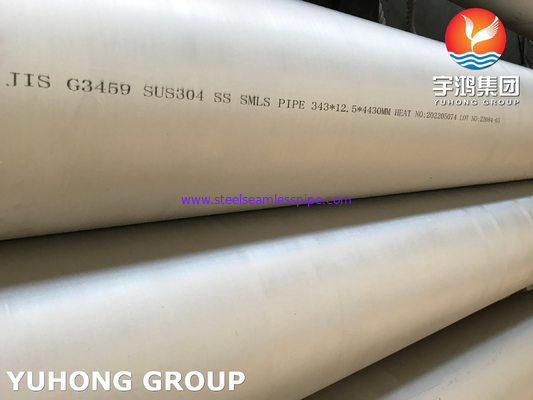

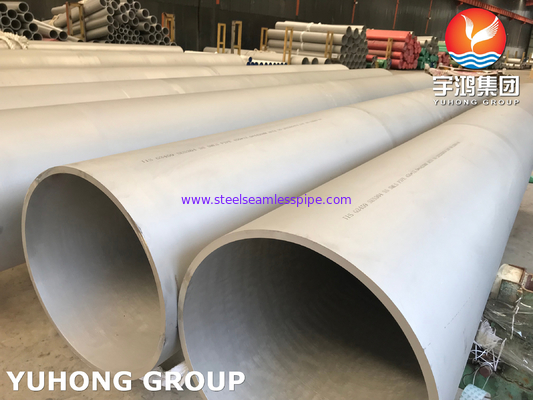

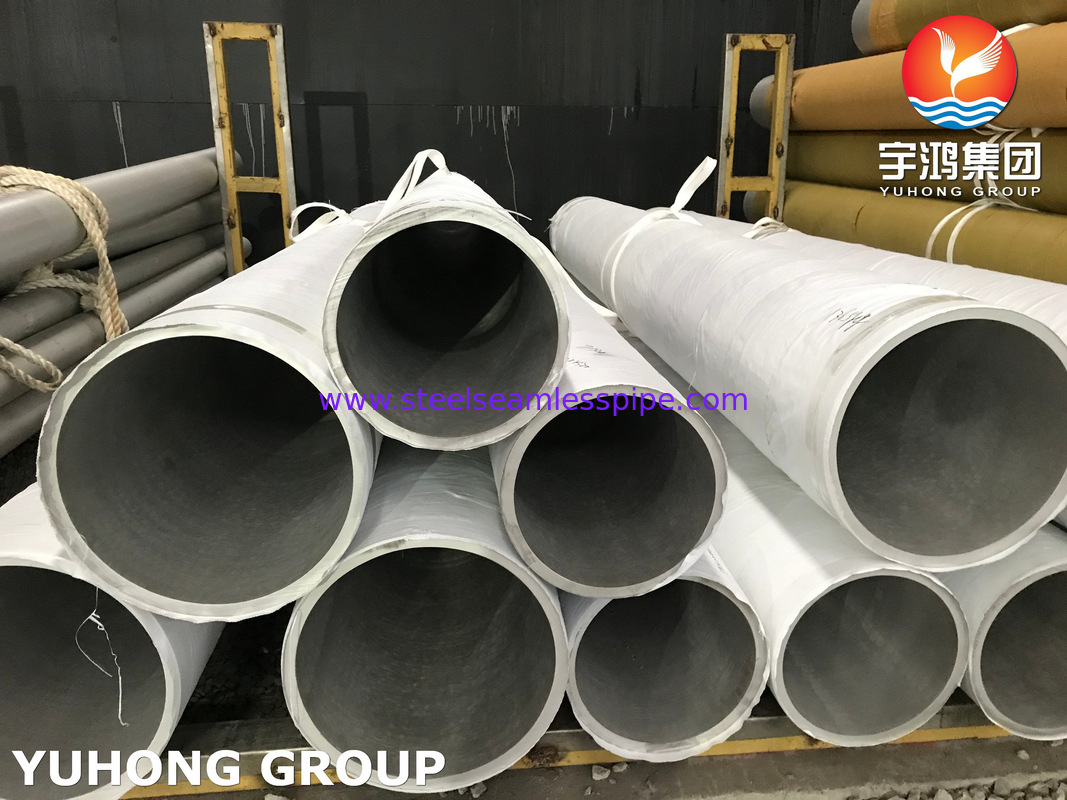

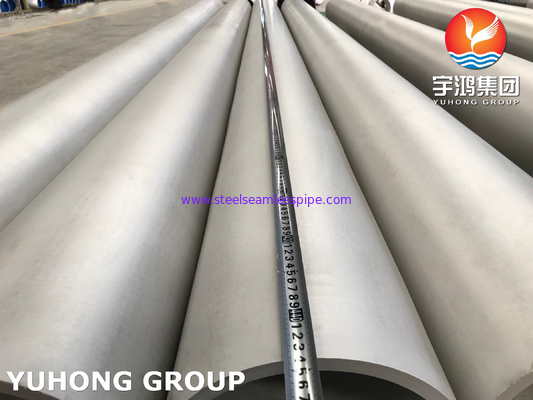

JIS G3459 SUS304 Stainless Steel Pipe Annealing and Pickled Surface
Yuhong Group has been operating stainless steel seamless pipes for more than ten years, with annual sales of more than 80,000 tons of stainless steel seamless pipes. Our clients have covered more than 55 countries. Our customers have covered Italy, the United Kingdom, Germany, the United States, Canada, Chile, Colombia, Saudi Arabia, South Korea, Poland, Singapore, Australia, France, etc.
Overview
JIS G3459 is a JAPANESE industrial standard piping material. JIS G3459 pipes can be used in corrosion resistance for low temperature service and high temperature sevices. JIS G3459 Austenitic series stainless steel are available in various grade such as 304, 304H, 304L, 309, etc. Equivalent Grade of SS 304 Pipe.
Chemical Composition
| Chemical Composition % | |||||||||
| Country (Region) | Standard | Steel Grade | C ≤ | Si ≤ | Mn ≤ | P ≤ | S ≤ | Cr | Ni |
| Japan | JIS G4303 | SUS304 | 0.08 | 1.00 | 2.00 | 0.045 | 0.030 | 18.00-20.00 | 8.00-10.50 |
SUS 304 mechanical properties
| Mechanical properties | ||||||||
| Country (Region) | Standard | Steel Grade | Diameter (d) in mm | Yield strength (N/mm2) | Tensile strength (N/mm2) | Elongation (%) | Hardness (HB) | Hardness (HV) |
| Japan | JIS G4303 | SUS304 | d≤180 | ≥ 205 | ≥ 520 | 40 | ≤ 187 | ≤ 200 |
Material physical properties
| SUS304 Material Physical Properties | |
| Density (g/cm3) | 7.93 |
| Meltingpoint (℃) | 1,400-1,450 |
| Specific heat (J/kg·℃) | 460-502 |
| Electrical resistivity (μΩ·m) (20℃) | 0.73 |
| Thermal expansion (10-6/K) | 16.3 (20-100℃) |
| 17.8 (20-300℃) | |
| 18.4 (20-500℃) | |
| Thermal conductivity (W/m·K) | 16.8 (100℃) |
Widely used in light industry, heavy industry, daily necessities and decoration industry.
