| Place of Origin: | CHINA |
| Brand Name: | YUHONG |
| Certification: | ABS, BV, DNV-GL , PED, TUV, LR, KR, NK, CCS. |
| Model Number: | ASTM B111 / ASME SB111 UNS C44300 Copper Alloy Tube |
| Minimum Order Quantity: | 500kgs |
|---|---|

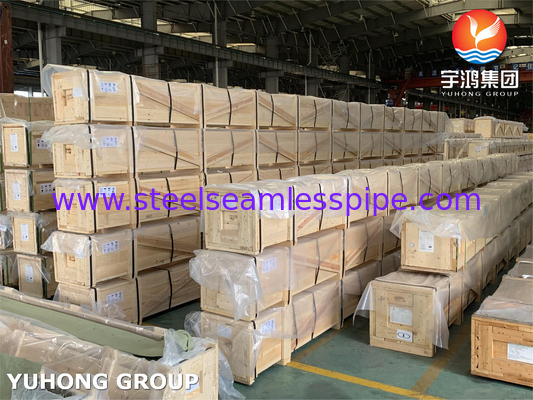

| Packaging Details: | Ply-wooden Case /Iron Case/ Bundle with plastic Cap |
| Delivery Time: | 7days |
| Payment Terms: | L/C, T/T |
| Product Name: | Copper Alloy Tube | Dimension: | ASTM, JIS, EN, DIN |
|---|---|---|---|
| Standard: | ASTM B111 / ASME SB111 | Material: | C44300 , C68700, C71500 , C70600, C12200, Etc. |
| OD: | 1/4" , 3/8", 1/2", 5/8", 3/4", 1", 1.1/4", Etc. | WT: | 10 - 25 BWG |
| Length: | Fixed , Random , Cut Length | End: | Plain Ends / Beveled Ends |
| Temper: | Soft Annealed,special Tempers On Request | Application: | Heat Exchangers, Refineries, Power Plants, Desalination Plants, Ship Building & Ship Repairs, Condensers, Ferrules, Distillers |

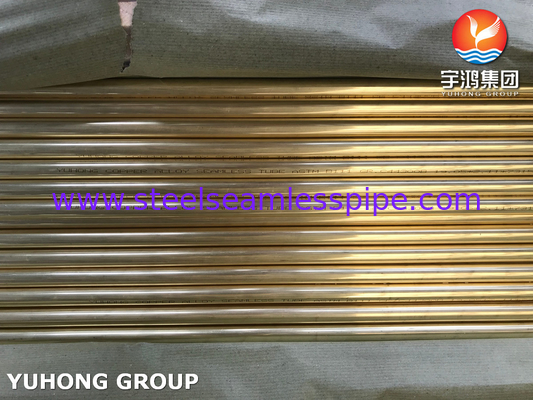

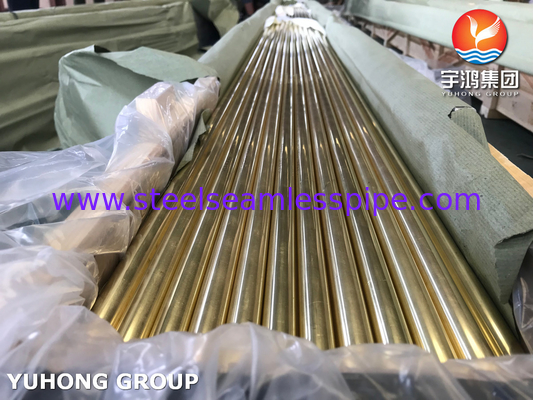

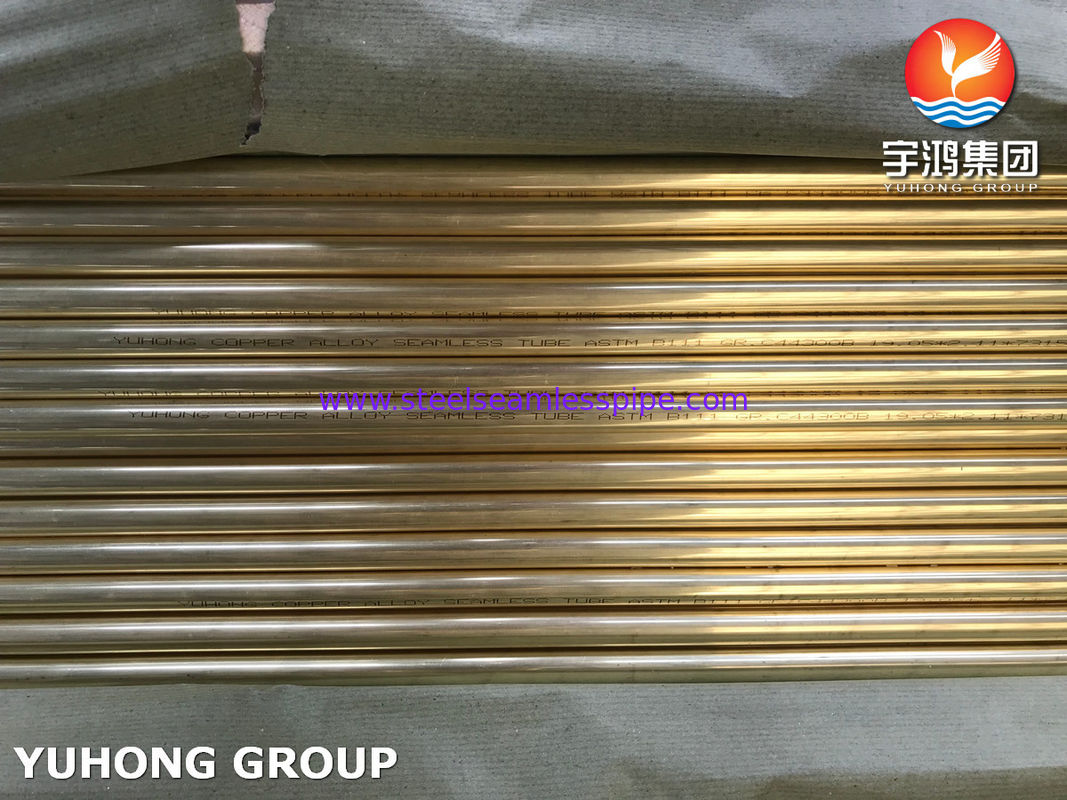

ASTM B111 / ASME SB111 UNS C44300 Admiralty Brass Tube for Heat Exchanger and Condenser
C44300 is a type of admiralty brass, which is a copper-zinc alloy with small amounts of other elements such as tin and arsenic. Admiralty brass is known for its excellent corrosion resistance and high resistance to dezincification, making it suitable for various applications in water systems and marine environments.
The seamless tubes manufactured according to the ASTM B111 C44300 specification are typically used in heat exchangers, condensers, and other applications where good thermal conductivity and corrosion resistance are required. Some of the key properties of C44300 seamless tubes include high thermal conductivity, good mechanical strength, and excellent resistance to stress corrosion cracking. These tubes are capable of withstanding high temperatures and pressures commonly encountered in heat transfer applications.
Brass Seamless Tubes Equivalent Material
|
Grade |
USA |
U.K |
Germany |
Japan |
|
China BG |
ASTM B111 |
BS 2871 |
DIN 1785 |
JIS H3300 |
|
HAL77-2 |
C68700 |
CZ110 |
CuZn20Al2As |
C6870 |
|
HSn70-1 |
C44300 |
CZ111 |
CuZn28Sn1As |
C4430 |
|
H68A |
- |
CZ126 |
- |
- |
|
H65A / H63 |
C28000 / C27200 |
CZ108 |
CuZn26/CuZn37 |
C2800/C2700 |
| Material Designation | Corresponding Material Symbol | ||||
| GB/T8890 | ASTM B111 | BS2871 | JIS H3300 | DIN 1785 | |
| Copper-Nickel | BFe10-1-1 | C70600 Pipe | CN102 | C7060 | CuNi10Fe1Mn |
| BFe30-1-1 | C71500 Pipe | CN107 | C7150 | CuNi30Mn1Fe | |
| (BFe30-2-2) | C71640 | CN108 | C7164 | CuNi30Fe2Mn2 | |
| (BFe5-1.5-0.5) | C70400 | – | – | – | |
| B7 | – | – | – | – | |
| Aluminium Brass | HAL77-2 | C68700 Tube | CZ110 | C6870 | CuZn20Al2 |
| Admiralty Brass | HSn70-1 | C44300 Tube | CZ111 | C4430 | CuZn28Sn1 |
| Boric Brass | Hsn70-18 | – | – | – | – |
| HSn70-1 AB | – | – | – | – | |
| Arsenical Brass | H68A | – | CZ126 | – | – |
| Brass Tubes | H65/H63 | C28000/C27200 | CZ108 | C2800/C2700 | CuZn36/CuZn37 |
ASTM B111 / ASME SB111 C44300 brass tube Mechanical Properties
| Properties | Measurement |
| Yield strength | 105 MPa |
| Melting point | 899 ~ 938 °C |
| Tensile strength | 310 MPa |
| Thermal conductivity | 109 W/m-K @ 20.0 °C |
| Density | 8.53 g/cc |
| Heat capacity | 0.09 cal/g-°C @ 20ºC |
| CTE linear strength | 20.2 10-6/°C @ 20.0 – 300 °C |
Here are a few reasons why C44300 copper alloy tube may be chosen:
Excellent corrosion resistance: C44300 copper alloy tube offers exceptional corrosion resistance, making it suitable for applications where exposure to moisture, harsh chemicals, or corrosive environments is expected. It can withstand both saltwater and freshwater environments, making it ideal for marine applications.
High thermal conductivity: Copper inherently possesses excellent thermal conductivity, and C44300 copper alloy tube is no exception. It efficiently transfers heat, making it suitable for applications that require efficient heat transfer, such as heat exchangers and cooling systems.
Good formability: C44300 copper alloy tube is easily formed and fabricated, allowing it to be shaped and customized into various sizes and shapes to suit specific application requirements.
Reliable mechanical properties: This copper alloy offers good strength and durability, ensuring that it can withstand high pressure and mechanical stresses. It can be used in various industries, including HVAC, plumbing, and automotive, where reliable and robust tubing is needed.
Cost-effective: Compared to other materials with similar properties, C44300 copper alloy tube is relatively cost-effective. It offers a good balance between performance and price, making it a popular choice in many applications.
Applications
Plumbing and HVAC Systems
Electrical Industry
Medical Equipment
Heat Exchangers
Automotive Industry
Solar Thermal Systems
Industrial Equipment
Furniture and Decorative Items
Food and Beverage Industry
Marine Industry
