Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | CHINA |
| Brand Name: | YUHONG |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008 |
| Model Number: | ASME SA789 / ASTM A789 |
| Minimum Order Quantity: | 1 ton |
|---|---|
| Price: | 1-120000 USD |
| Packaging Details: | Ply-wooden Case /Iron Case/ Bundle With Plastic Cap |
| Delivery Time: | 5-65 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1200tons/month |
| Materialrd: | Duplex Stainless Steel | Product: | Seamless Tube |
|---|---|---|---|
| Standard: | ASME SA789 / ASTM A789 | Grade: | S32205 |
| Application: | For General Service | Length: | Or As Required |
| Certificate: | ISO9001-2008, API 5L, API 5CT, Etc. | Packing Details: | Ply-wooden Case /Iron Case/ Bundle With Plastic Cap |

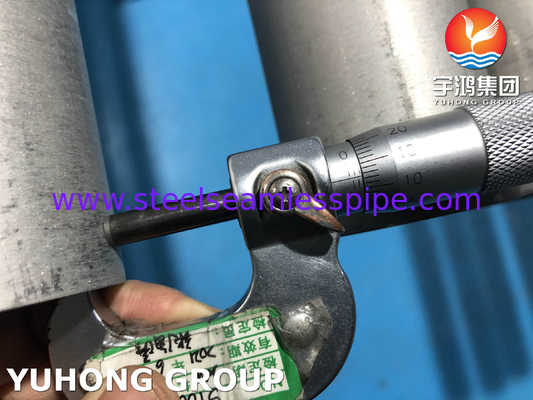

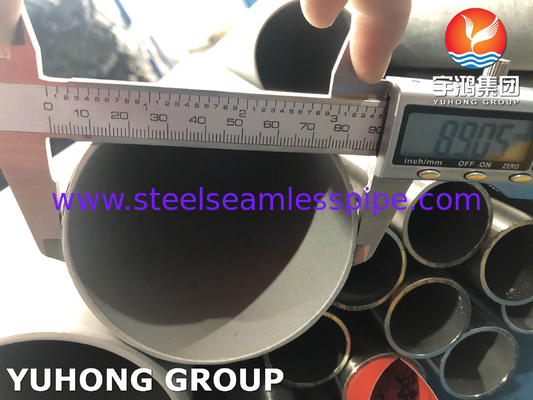

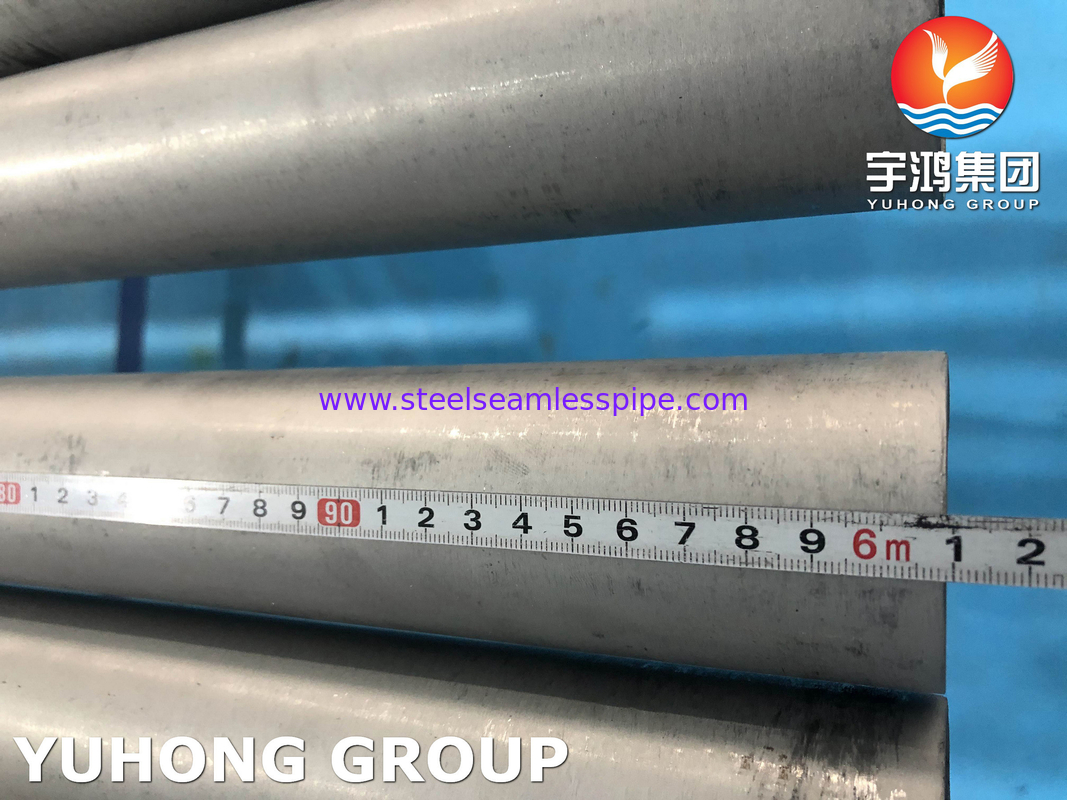

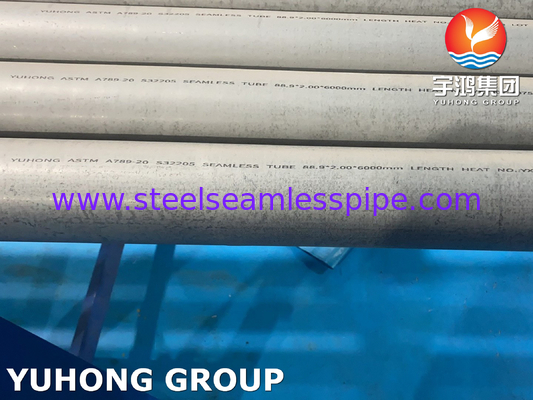

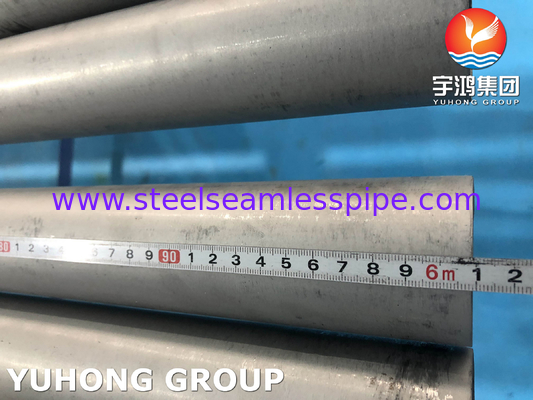

ASTM A789 S32205 Seamless Duplex Steel Heat Exchanger Tubes
YUHONG Group offers ASME SA789 / ASTM A789 S32205 SMLS duplex stainless steel tubes and we sell these tubes in many years. This specification covers grades of nominal wall thickness, stainless steel tubing for services requiring general corrosion resistance, with particular emphasis on resistance to stress corrosion cracking. These steels are susceptible to embrittlement if used for prolonged periods at elevated temperatures.
Chemical Composition % S32205
| C | Mn | P | S | Si | Ni | Cr | Mo | N |
| 0.03max | 2.00max | 0.03max | 0.02max | 1.00max | 4.5-6.5 | 22.0-23.0 | 3.0-3.5 | 0.14-0.20 |
Tensile Requirements
| Grade | Yield Strength (Mpa) | Tensile Strength (Mpa) | Elongation (%) |
| S32205 | 485 | 655 | 25 min |
Hardness Requirements
| HBW | HRC |
| 290 max | 30max |
Heat Treatment
S32205--------------------Temperature 1870-2010°F (1020-1100°C)-----------------Quench: Rapid cooling in air or water
Applications
Oil and gas industry: are often used in oil and gas exploration and production, as they offer excellent resistance to corrosion and high strength properties.
Heat exchangers: are widely used in heat exchanger systems due to their excellent thermal conductivity and resistance to corrosion.
Chemical processing: are suitable for chemical processing applications due to their resistance to a wide range of chemicals and acids.
Desalination plants: are commonly used in desalination plants to handle seawater, as they have high resistance to seawater corrosion.
Power generation: are used in power plants, including nuclear and fossil fuel power plants, for applications such as condensers, boilers, and heat exchangers.
Petrochemical industry: A789 S32205 tubes find applications in the petrochemical industry for handling corrosive fluids and gases in various processes.
Pharmaceutical industry: are used in pharmaceutical manufacturing and processing to ensure the purity and integrity of the products.
Test Required
Chemical Analysis
Mechanical Properties
Hardness Test
Flattening Test
Tension Test
FlaringTest
Intergranular Corrosion Test
Hydrostatic or Nondestructive Electric Test
Ultrasonic Test
