Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | CHINA |
| Brand Name: | YUHONG |
| Certification: | ASME II, ASME III, ABS, LR, DNV, GL , BV, CCS, KR, NK, TUV, PED, GOST, ISO , TS |
| Model Number: | ASME SA36 Carbon Steel Support Plate |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | Ply wooden case / Pallet |
| Delivery Time: | 7 DAYS |
| Payment Terms: | L/C,T/T |
| Product Name: | Support Plate | Standard: | ASTM A36, ASME SA36 |
|---|---|---|---|
| Material: | Carbon Steel, Stainless Steel, Alloy, Nickel Alloy, | Shape: | Can Custom |
| Size: | Can Custom, As Buyer's Drawing Requirements | Production Process: | Cutting, Rough Machining, Finish Machining |
| Application: | Tube Type Heat Exchange,boiler,pressure Vessel,steam Turbine,locomotive,power Station,big Scale Central Air Conditioning Industry | ||
| High Light: | ASME SA36 Carbon Steel Support Plate, Heat Exchanger Parts | ||

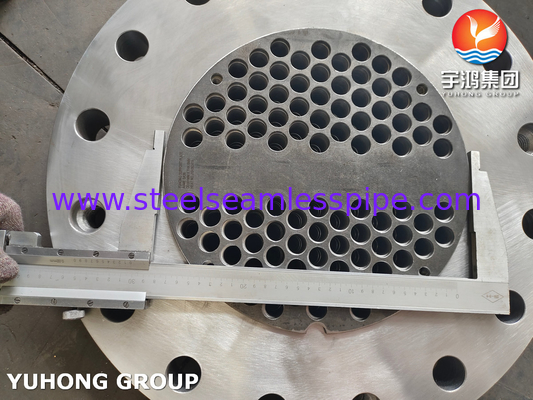

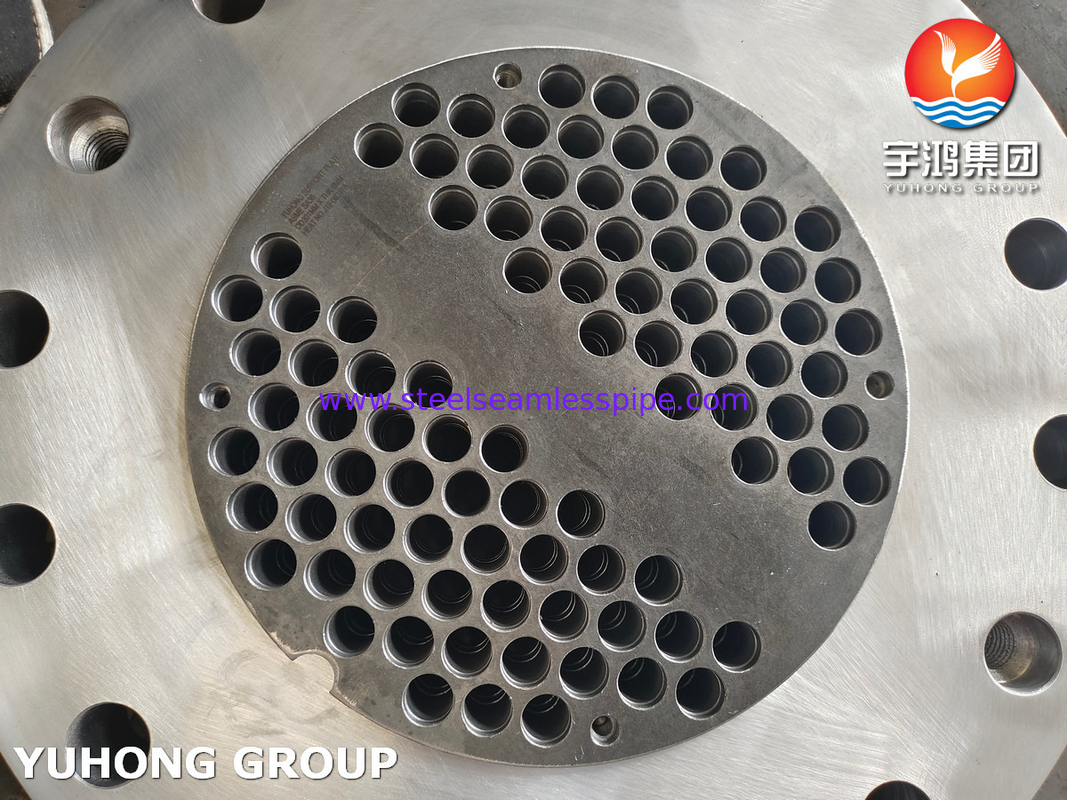

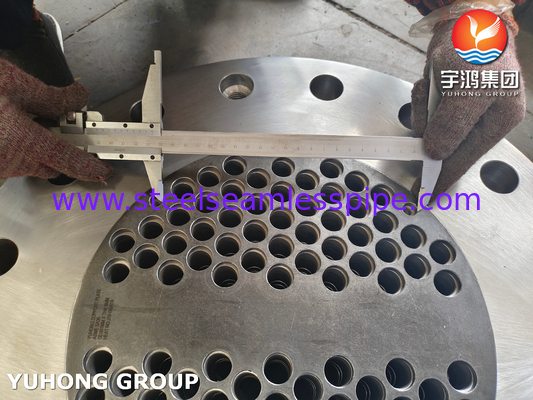

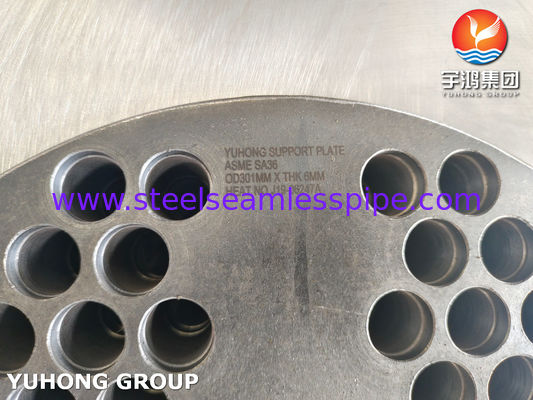

ASTM A36 / ASME SA36 Carbon Steel Plate Support Plate for Heat Exchanger Application
ASTM A36 steel is commonly used in the construction industry for various applications, including support plates, due to its strength, ductility, and weldability. Support plates made from ASTM A36 steel are often used to provide additional support or reinforcement to structures, equipment, or machinery. They can be used in a variety of industries such as construction, manufacturing, and infrastructure. The material properties and availability of ASTM A36 steel make it a popular choice for support plate applications.
In order to offer a clear price of a baffle plate, you will typically need to provide the following information:
1. Material: The type of material you require for the baffle plate, such as carbon steel, stainless steel, or other alloys.
2. Dimensions: The size and shape of the baffle plate, including its thickness, width, and length. (as drawing required)
3. Quantity: The number of baffle plates
4. Application: The specific application or equipment in which the baffle plate will be used.
5. Additional requirements: Any additional requirements or specifications, such as surface finish, tolerances, or testing.
| Steel Grade | Mild steel plate grade ASME SA36 carbon structure steel |
| Relative steel grades |
S235JR,S235J2,ST37,A36,A283 GR.B, A283 GR.A,Q235B,Q235A,Q235D,SS400,A573Gr.58, A573Gr.65, A573Gr.70 |
| Main application | ASME SA36/SA36M SA36 steel plate is a kind carbon structure steel which is used in riveted,bolted or welded construction of bridges and buildings,and for general structural purpose. |
Mechnical property for SA36 mild steel:
| Thickness (mm) | Yield strength (≥Mpa) | Tensile strength (Mpa) | Elongation in ≥,% | |
| T≤200 | 250 | 400-550 | 200mm | 50mm |
| 200<T | 220 | 400-550 | 20 | 23 |
Chemical composition for SA36 carbon steel (Heat Analysis Max%)
| Main chemical elements composition of A36 | ||||||
| Thickness(mm) | C | Si | Mn | P | S | Cu (Min.) Cooper steel |
| T≤20 | 0.25 | 0.40 | ... | 0.04 | 0.05 | 0.20 |
| 20<T≤40 | 0.80-1.20 | |||||
| 40<T≤65 | 0.26 | 0.15-0.40 | ||||
| 65<T≤100 | 0.27 | 0.85-1.20 | ||||
| 100<T | ||||||
Other Materials
| Type of materials | Technical requirements * according to |
| Duplex Stainless Steel | ASTM/ASME SA182 F44, F45, F51, F53, F55, F60, F61 |
| Stainless Steel | ASTM/ASME SA182 F304,304L,F316,316L, F310, F317L, F321, F347 |
| Carbon Steel | ASTM/ASME A105, A350 LF1, LF2, A266, A694, A765 Gr.2 |
| Alloy Steel | ASTM/ASME SA182 F1, F5, F9, F11, F12, F22, F51, A350-LF3 |
| Titanium | ASTM/ASME SB381, Gr.1, Gr.2, Gr.5, Gr.7, Gr.12, Gr.16 |
| Copper Nickel | ASTM/ASME SB151, UNS 70600(Cu-Ni 90/10), 71500(Cu-Ni 70/30) |
| Brass, Al-brass | ASTM/ASME SB152 UNS C10100, C10200,C10300,C10800,C12200 |
| Nickel Alloys | ASTM/ASME SB169,SB171, SB564, UNS 2200, UNS 4400, UNS 8825 UNS 6600, UNS 6601, UNS 6625 |
| Alloy 20 | ASTM/ASME SB472 UNS 8020 |
| Hastelloy | ASTM/ASME SB564, UNS10276 ( C 276 ) |
| Claded materials | ASTM/ASME SB898, SB263, SB264 or closer explosion cladding, making materials of 2 in 1 or 3 in 1. |
| Titanium- Steel, Nickel-Steel,Titanium- Copper, Stainless Steel- Carbon Steel, Alloys- Steel etc. |
Applications
Tube type heat exchanger
Boiler
Pressure vessel
Steam turbine
Power station
Air conditioning industry
