Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | CHINA |
| Brand Name: | YUHONG HOLDING GROUP |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008 |
| Model Number: | SA335 P5 P9 P11 P12 P22 P91 P92 |
| Minimum Order Quantity: | 500KGS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export Package |
| Delivery Time: | 10-15 DAYS |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10000T per month |
| Standard: | API,ASME, ASTM, EN ,BS,GB,DIN, JIS,AISI,SAE | Material: | P5 P9 P11 P12 P22 P91 P92 |
|---|---|---|---|
| Processing: | Bending, Welding, Decoiling, Punching, Cutting | Package: | Standard Export Package |
| High Light: | Boiler Duplex Stainless Steel Pipes,Power Plant Duplex Stainless Steel Pipes,Alloy Steel Seamless Pipe ASME SA335 |
||

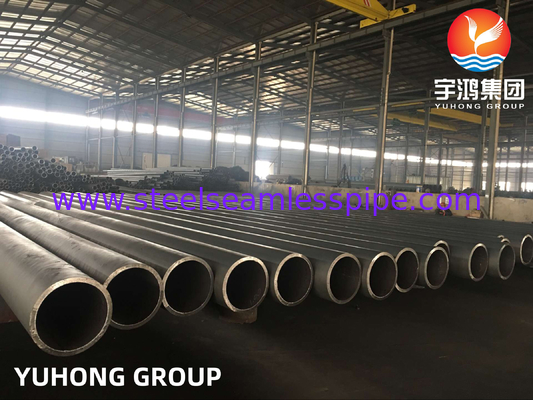

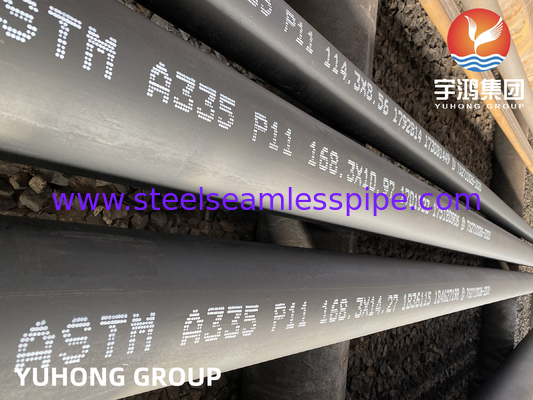

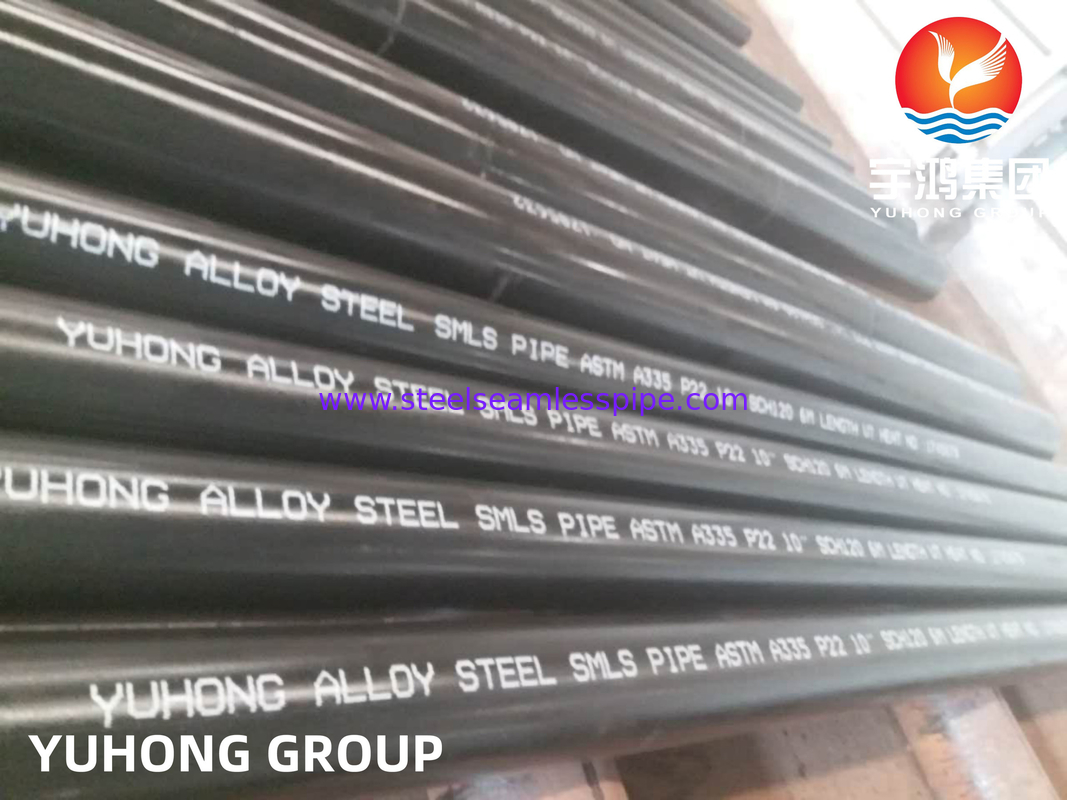

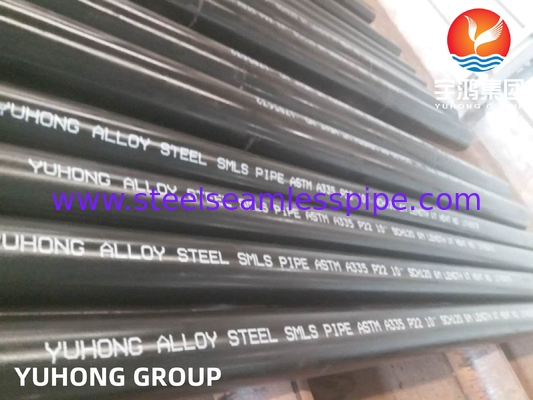

Alloy Steel Seamless Pipe ASTM A335/ASME SA335 P5 P9 P11 P12 P22 P91 P92 for Power Plant Energy Fluid Boiler
ASTM A335 is a seamless ferritic Alloy-Steel Pipe for high temperature service. Pipe ordered to this specification shall be suitable for bending, flanging (vanstoning), and similar forming operations, and for fusion welding. Sometimes referred to as "P Grade”, chome moly pipe is popular in P-Grades P5, P9, P11, P22, and P91. The most common use of grades P11, P22, and P91 is in the power industry and petro-chemical plants, Grades P5 and P9 are commonly used in refineries
ASTM A335 P5 Pipe Chemical Composition
Chemical composition % of ASTM A335 P5 Alloy Steel Seamless Pipe
| Compositions | Data |
| UNS Designa-tion | K41545 |
| Carbon(max.) | 0.15 |
| Manganese | 0.30-0.60 |
| Phosphorus(max.) | 0.025 |
| Silicon(max.) | 0.50 |
| Chromium | 4.00-6.00 |
| Molybdenum | 0.45-0.65 |
| Other Elements | … |
Mechanical Properties :
| Properties | Data |
| Tensile strength, min, (MPa) | 415 Mpa |
| Yield strength, min, (MPa) | 205 Mpa |
| Elongation, min, (%), L/T | 30/20 |
Heat Treatment :
| P5, P9, P11 and P22 | |||
| Grade | Heat Treatment Type | Normalizing Temperature Range F [C] | Subcritical Annealing or Tempering Temperature Range F [C] |
| P5 (b,c) | Full or isothermal Anneal | ||
| Normalize and Temper | ***** | 1250 [675] | |
| Subcritical Anneal (P5c only) | ***** | 1325 - 1375 [715 - 745] | |
| P9 | Full or isothermal Anneal | ||
| Normalize and Temper | ***** | 1250 [675] | |
| P11 | Full or isothermal Anneal | ||
| Normalize and Temper | ***** | 1200 [650] | |
| P22 | Full or isothermal Anneal | ||
| Normalize and Temper | ***** | 1250 [675] | |
| P91 | Normalize and Temper | 1900-1975 [1040 - 1080] | 1350-1470 [730 - 800] |
| Quench and Temper | 1900-1975 [1040 - 1080] | 1350-1470 [730 - 800] |
Alloy Steel Pipe Applications
suitable for high temperature environments including those found in the following industries
Power generation
Petrochemicals
Gas processing
