Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | CHINA |
| Brand Name: | YUHONG |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008 |
| Model Number: | ASTM A213 TP310S |
| Minimum Order Quantity: | 10PC |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Ply-wooden Case /Iron Case/ Bundle With Plastic Cap |
| Delivery Time: | 15-35 DAYS |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000tons/month |
| Material: | Stainless Steel | Packing: | Wooden Box, Bundle |
|---|---|---|---|
| Standard: | ASTM A213 ASME SA213 | Surface Treatment: | Polishing, Annealing, Pickling |
| Type: | Seamless Tube | ||
| High Light: | TP310S Stainless Steel Seamless Round Tube,Boiler Stainless Steel Seamless Round Tube |
||
|
Product Name: |
Heat Exchanger Tube | Standard: |
ASTM A213 / ASME SA213 |
|---|---|---|---|
| Material: | Stainless Steel | Length: | Single Random, Double Random & Cut Length. |
| Form: | Straight &U Bend | Packing: | Plywood Case,Bundle |
| End: | Plain Ends / Beveled Ends | Type: | Seamless |
| High Light: |
ASME SA213 Stainless Steel Tube,ASTM A213 TP310S Stainless Steel Seamless Tube, Heat Exchanger Tube,Boiler Tube |
||

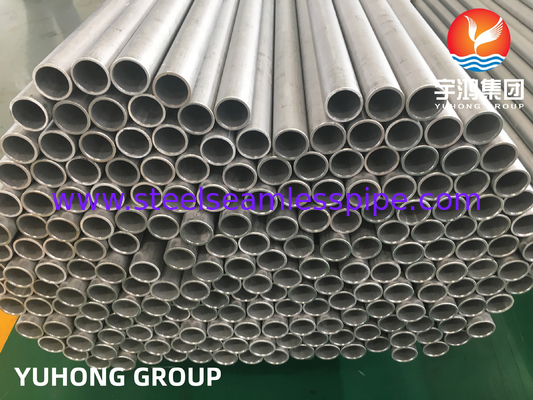

ASTM A213 / ASME SA213 TP310S Stainless Steel Seamless Tube
Overview
TP310S offers excellent resistance to high temperatures, making it suitable for applications where elevated heat and thermal stress are present.
TP310S exhibits good resistance to oxidation, sulfidation, and carburization, making it suitable for use in harsh environments, such as in furnace components and chemical processing.TP310S has relatively high tensile strength and yield strength compared to other stainless steel grades, providing structural integrity in demanding applications.TP310S can be easily welded using standard welding techniques, making it suitable for fabrication and joining processes.
Chemical Composition of ASTM A213 TP310S
| Grade | C | Mn | Si | P | S | Ni | Cr | |
| TP310S | Min | 19.0 | 24.0 | |||||
| Max | 0.08 | 2.0 | 1.0 | 0.045 | 0.03 | 22.0 | 26.0 |
Mechanical Properies of ASME SA213 TP310S
| Grade | Tensile Str Ksi(Mpa) | Yield Str Ksi(Mpa) | Elongation(%) | Hardness | |
| Rockwell (HRB) | Brinell(HBW) | ||||
| TP310S | ≥75(515) | ≥30(205) | ≥35 | ≤90 | ≤192 |
Wall Thickness Tolerance of ASME SA213
| Welded, Hot-Finished Tubes | Type | Wall Thickness Tolerance |
| OD Range | Average(-) | |
| 6~65mm(Incl.) | SMLS&WLD | (-12.5%,+20%) |
| >65mm | SMLS&WLD t/D≤5% | (-12.5%,+22.5%) |
| >65mm | SMLS&WLD t/D>5% | (-12.5%,+15%) |
Uses&Application:
Petrochemical
Chemical
Oil and Gas
Pulp & Paper
Power Plant
Food Processing Industry
Energy Industry
