Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | China |
| Brand Name: | YUHONG |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015 |
| Model Number: | F304, F304L |
| Minimum Order Quantity: | 1 Piece |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Ply-wooden Case / Pallet |
| Delivery Time: | 7-50 Work Days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | According To Clients' Request |
| Standard: | ASTM A182, ASME SA182 | Material Grade: | F304, F304L |
|---|---|---|---|
| Size: | 1/2"-48" | Pressure: | Class150-2500(PN6-PN100) |
| Technics: | Froged | Type: | Threaded Flange,Slip On Flange,Socket Weld Flange,Weld Neck Flange,LAP Joint Flange |
| Surface Treatment: | Heat Treatment,Galvanized,customize | Application: | Petroleum,chemical,fittings And Connection,beer |
| High Light: | ASTM A182 RF Steel Flanges,Stainless Steel Raised Face Blind Flange,F304L Raised Face Blind Flange |
||

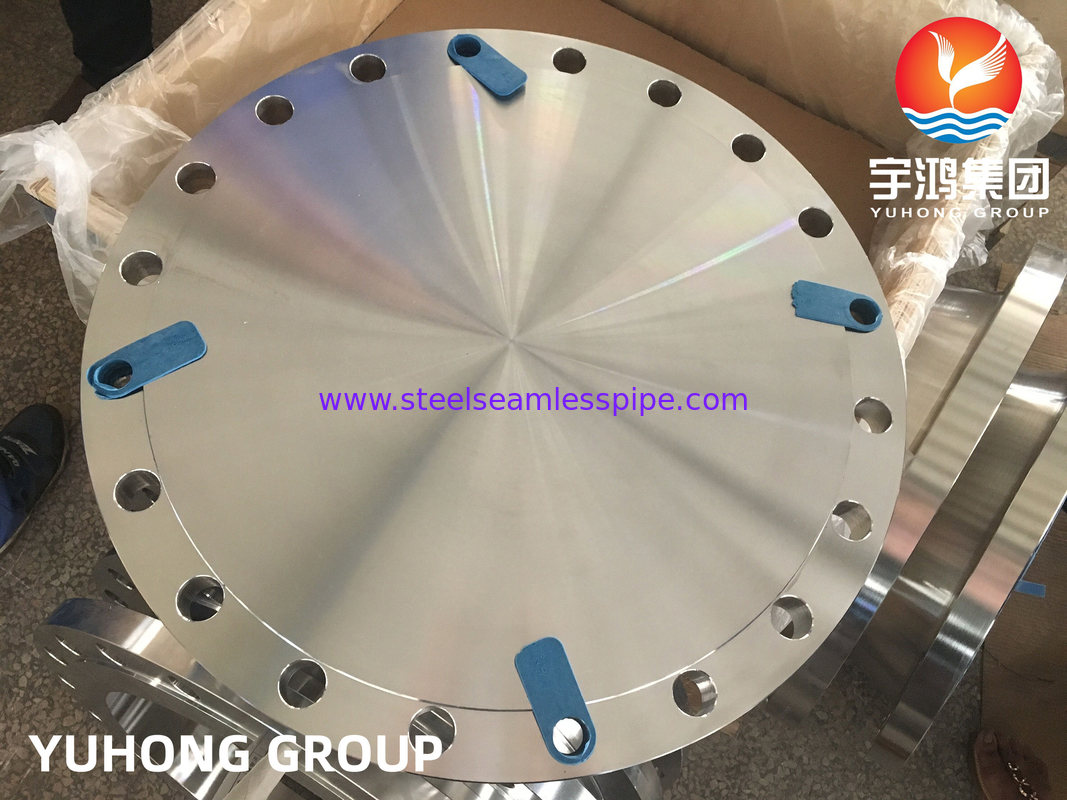

ASTM A182 F304, F304L Stainless Steel Raised Face Blind Flange ASME B16.5
ASTM A182 F304L Stainless Steel BLRF Flanges are made up of the 18-8 stainless steel material which contains 18% chromium, 8% nickel, carbon, silicon, sulfur, manganese and phosphorus. The material has good strength and low corrosion resistance. ASTM A182 F304L is a specification for forged stainless steel pipe flanges for high-temperature service. ASTM A182 F304L is also called "18/8" which is derived from the composition of 304L stainless steel being 18% chromium and 8% nickel. It is a low carbon version of stainless steel 304. ASTM A182 F304L Stainless Steel BLRF Flanges is used to connect pipes, pumps, valves to form a piping system. It can also be used in environments sufficiently corrosive.
Specifications:
| Specifications | ASTM A182, ASME SA182 |
| Size Range | 1/2″ (15 NB) to 48″ (1200NB) |
| Standards | ANSI, ASME, BS, DIN, EN, GOST, ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092 |
| Main Types | Forged / Threaded / Screwed / Plate |
| Types Of Flanges |
Blind Ring Flange (BLRF) Lap Joint Ring Flange (LJRF) Socket Weld Ring Flange (SWRF) Threaded Ring Flange Weld Neck Ring Flange (WNRF) Slip-On Ring Flange (SORF) Ring Type Joint Flange (RTJF) |
| Pressure Ratings | Class:150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS, |
| Production technique | Forged, Heat Treated And Machined |
| Connect Type/ Flange Face Type | Ring Type Joint (RTJ), Flat Face (FF), Lap-Joint Face (LJF), Raised Face (RF), Large Male-Female (LMF), Small Male-Female (SMF), Large Tongue & Groove, Small Tongue, Groove |

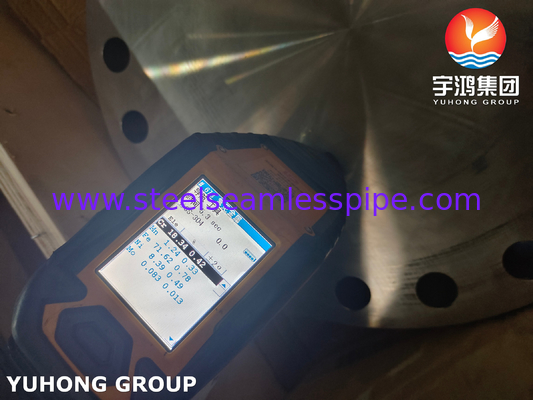

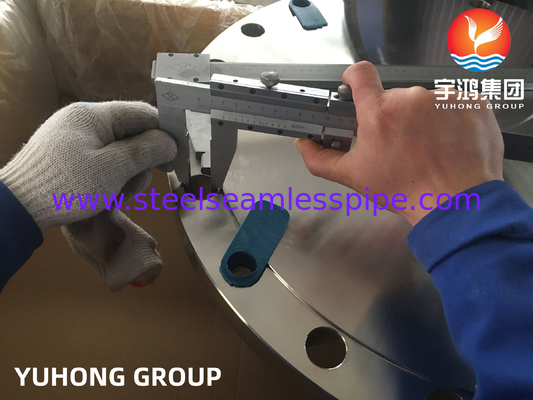

| Test | Hydrostatic testing machine, Direct-reading Spectrograph, Magnetic particle detector, X-ray detector,UI trasonic flaw detector,Magnetic particle detector |
Equivalent Grades:
| STANDARD | F304L |
| JIS | SUS 304L |
| GOST | 03Х18Н11 |
| UNS | S30403 |
| DIN | 1.4306 / 1.4307 |
| WERKSTOFF No. | 1.4306 / 1.4307 |
| AFNOR | Z3CN18‐10 |
| BS | 3304S11 |
| EN | X2CrNi18-9 / X2CrNi19-11 |
Chemical Composition:
| C | Mn | P | S | Si | Ni | Cr |
| 0.03 | 2 | 0.045 | 0.03 | 1 | 8-13 | 18-20 |
Mechanical Properties:
| Tensile Hardness Strength (MPa) |
Yield Strength 0.2% Proof (MPa) |
Elongation (% in 50mm) |
Hardness | |
| Rockwell B (HR B) |
Brinell (HB) |
|||
| 485 min | 170 min | 40 min | 92 max | 201 max |
Applications:
Petroleum Refining
Power Generation
Industrial Machineries
Chemical Plants
Gas & Water Pipe Line
Oil & Gas Exploration
Petrochemicals and Refineries
Nuclear and Solar Power Plants
Sugar Industries
