Yuhong Holding Group Co.,LTD
Place of Origin: | CHINA |
Brand Name: | YUHONG |
Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008 |
Model Number: | TP316L,TP304,TP304L,SUS316L,SUS304 |
Minimum Order Quantity: | 100KGS |
---|---|
Packaging Details: | PLYWOOD CASE,BUNDLE,PALLET |
Delivery Time: | 7DAYS |
Payment Terms: | L/C, T/T |
OD: | 0.1MM TO 25MM | GRADE: | TP304/304L/304H , TP310S/310H, TP316L/316H/316Ti ,TP317/317L , TP321/321H, TP347/347H 904L , SAF2205, SAF2507, S31803, S32750, S32760 |
---|---|---|---|
STANDARD: | EN10305 , ASTM , GOST | PACKAGE: | PLYWOOD CASE,BUNDLE |
USAGE: | WATCH,BALLPEN,INSTRUMENT,,,,, | ||
High Light: | Bright Annealed Tube Needle Precision, TP304 SS Capillary Tube,Bright Annealed SS Capillary Tube |

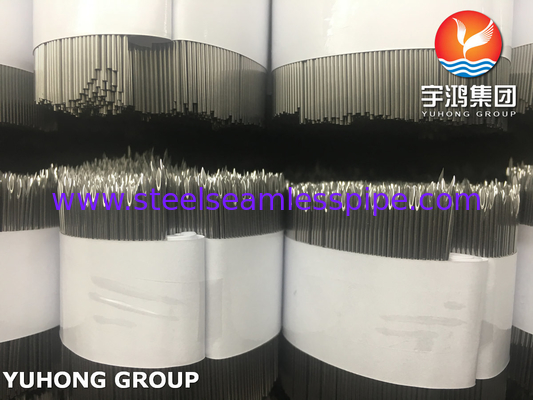

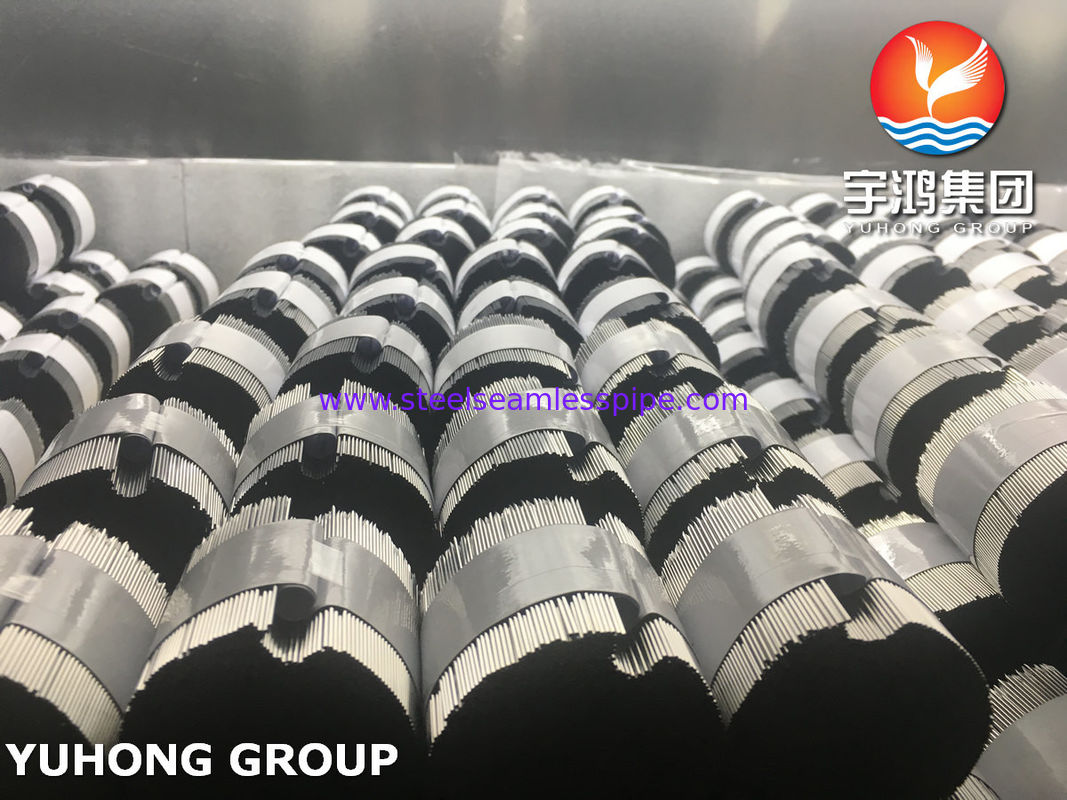

BRIGHT ANNEALED TUBE NEEDLE PRECISION SS CAPILLARY TUBE TP304
The Stainless Steel Capillary Tubes are used while supplying liquids and gases from sensors to measuring instruments.The SS Capillary Tube Seamless is used in unique applications like the resist jets in the aerospace industry. The Stainless Steel Capillary Tubing has to be seamless and be precise in dimensions with very less absolute roughness. These tubes have a varying diameter and are used in systems where the refrigerant flow needs to be varied.
Stainless Steel Hypodermic Tubing
American Standard (ASTM) | TP304, TP304L, TP310S, TP316, TP316L, TP316Ti, TP321, TP347, 904L Etc |
European Standard (EN) | 1.4301, 1.4306, 1.4845, 1.4401, 1.4404, 1.4571, 1.4541, 1.4550, 1.4539 Etc |
German Standards | X5CrNi18-10, X2CrNi19-11, X12CrNi25-21, X5CrNi17-12-2, X5CrNi17-12-3, X2CrNiMo18-14-3, X6CrNiTi18-10, X6CrNiTb18-10 Etc |
Available Grades : 304, 304L, 316, 316L
Available Types : Seamless & Welded
Available Size : OD :Min. 0.5mm to 6mm
WT:0.02 to 2mm
Length Max.: 1000m /pc
Wall Thickness (mm) | |||||||||||||||||||||||||
O.D. (mm) | 0.075 | 0.08 | 0.1 | 0.125 | 0.15 | 0.175 | 0.2 | 0.225 | 0.25 | 0.3 | 0.35 | 0.375 | 0.4 | 0.45 | 0.5 | 0.6 | 0.75 | 0.8 | 0.85 | 1 | 1.25 | 1.5 | 1.8 | 2 | 2.5 |
0.1 | |||||||||||||||||||||||||
0.2 | 0.04 | ||||||||||||||||||||||||
0.3 | 0.15 | 0.14 | 0.1 | ||||||||||||||||||||||
0.4 | 0.2 | ||||||||||||||||||||||||
0.5 | 0.3 | 0.2 | |||||||||||||||||||||||
0.55 | |||||||||||||||||||||||||
0.6 | 0.4 | ||||||||||||||||||||||||
0.62 | 0.32 | ||||||||||||||||||||||||
0.7 | 0.45 | 0.4 | |||||||||||||||||||||||
0.8 | 0.5 | 0.45 | 0.3 | 0.1 | |||||||||||||||||||||
0.9 | 0.5 | ||||||||||||||||||||||||
1 | 0.8 | 0.7 | 0.6 | 0.5 | 0.4 | 0.3 | |||||||||||||||||||
1.1 | 0.7 | ||||||||||||||||||||||||
1.2 | 0.8 | 0.3 | |||||||||||||||||||||||
1.3 | 0.85 | 0.8 | |||||||||||||||||||||||
1.4 | 1 | ||||||||||||||||||||||||
1.5 | 1.2 | 1.1 | 1 | 0.8 | 0.7 | 0.5 | |||||||||||||||||||
1.6 | 1.2 | 1 | 0.6 | 0.1 | |||||||||||||||||||||
1.7 | 1.3 | ||||||||||||||||||||||||
1.8 | 1.3 | 1 | |||||||||||||||||||||||
1.9 | 1.4 | ||||||||||||||||||||||||
2 | 1.8 | 1.6 | 1.5 | 1.4 | 1 | ||||||||||||||||||||
2.2 | 1.6 | 0.5 | |||||||||||||||||||||||
2.4 | 1.6 | ||||||||||||||||||||||||
2.5 | 2.1 | 2 | 1.9 | 1.7 | 1.5 | ||||||||||||||||||||
2.6 | 2 | ||||||||||||||||||||||||
2.8 | 2 | ||||||||||||||||||||||||
3 | 2.6 | 2.5 | 2 | 1.5 | 1 | ||||||||||||||||||||
3.2 | 2.8 | 2.4 | |||||||||||||||||||||||
3.25 | 0.75 | ||||||||||||||||||||||||
3.5 | 2.75 | 2.5 | 2.3 | ||||||||||||||||||||||
4 | 3.5 | 3 | 2.5 | 2 | 1.5 | 1 | |||||||||||||||||||
4.5 | 4 | 3.5 | |||||||||||||||||||||||
5 | 4.7 | 4.6 | 4.5 | 4 | 3.5 | 3 | 2 | 1.4 | |||||||||||||||||
5.3 | 4.8 | ||||||||||||||||||||||||
5.5 | 3.5 | ||||||||||||||||||||||||
6 | 5.7 | 5.5 | 5.2 | 5 | 4.5 | 4.4 | 4 | 3 | 2.4 | 2 | 1 |
