Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | CHINA |
| Brand Name: | YUHONG |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008 |
| Model Number: | ASTM A213 TP316L |
| Minimum Order Quantity: | 10PC |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Ply-wooden Case /Iron Case/ Bundle with plastic Cap |
| Delivery Time: | 5-80 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1500tons/month |
| Product Name: | Heat Exchanger Tube | Standard: | ASTM A213 |
|---|---|---|---|
| Material: | TP316L | Ends: | Plain Ends/ Bevelled Ends |
| Type: | Seamless | Shape: | Round |
| Size: | Customized | Length: | Customized |
| High Light: | Plain Ends U Bend Tube,TP316l Heat Exchanger U Bend Tube |
||

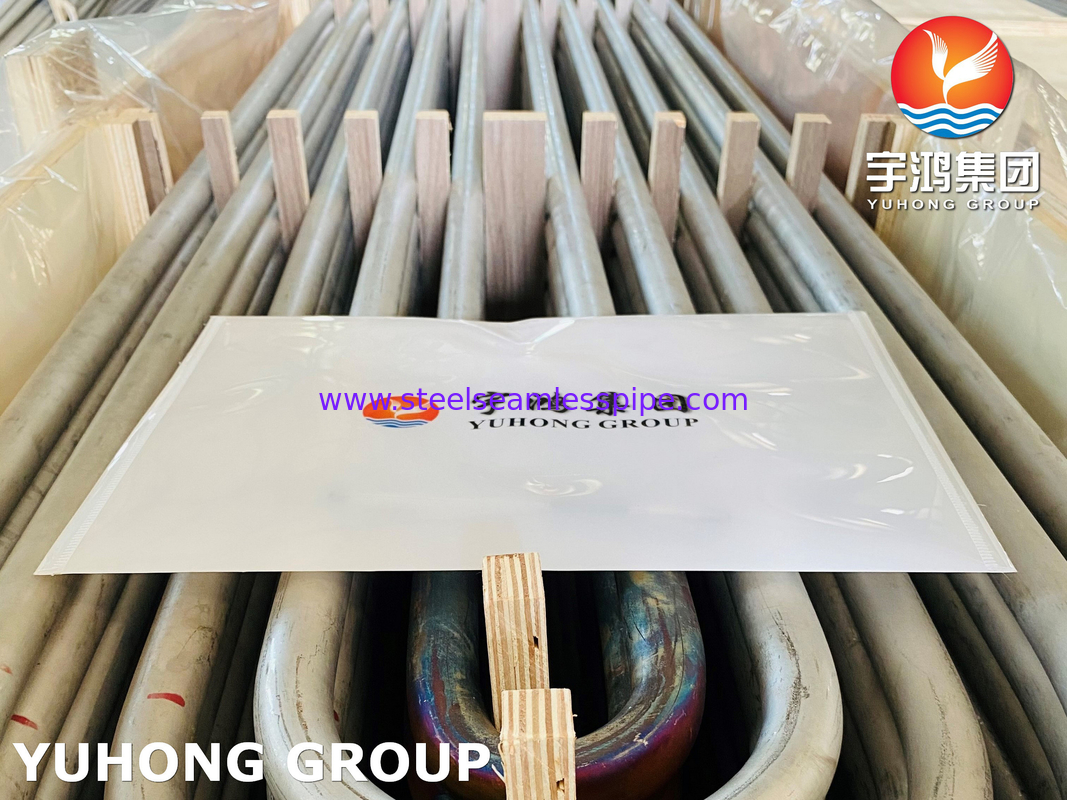

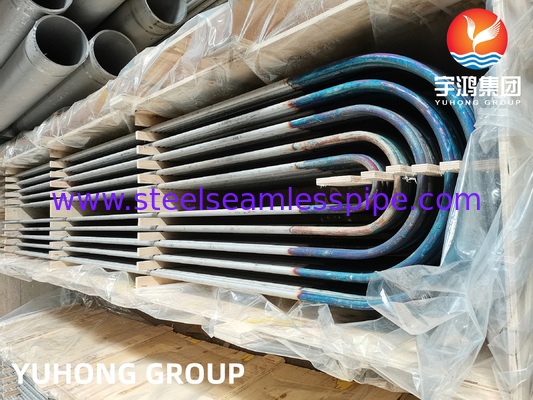

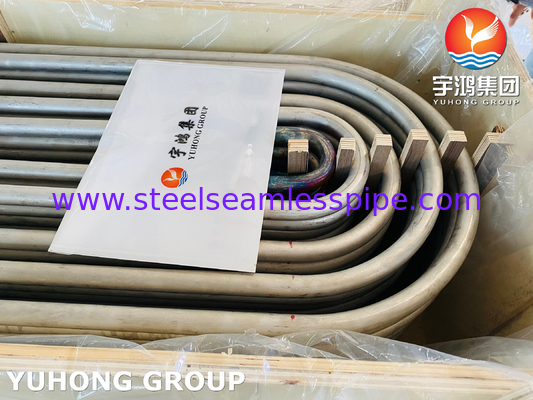

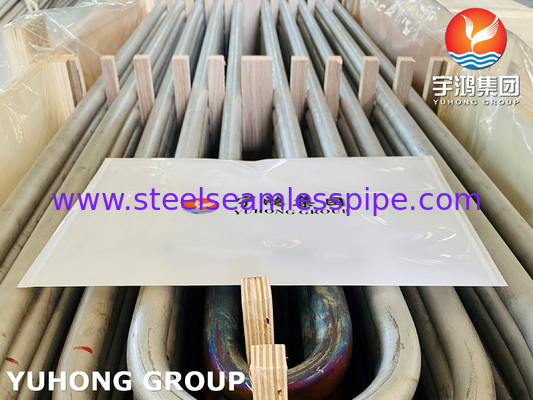

ASTM A213 TP316L Stainless Steel U Bend Tube
Overview
The standard for ASTM A213 TP316L U bend tubes is defined by ASTM A213, which is the specification for seamless ferritic and austenitic alloy-steel boiler, superheater, and heat-exchanger tubes. This standard outlines the requirements and testing methods for various grades of stainless steel tubes used in high-temperature and corrosive environments.
Specifically, ASTM A213 TP316L is the grade designation for seamless U bend tubes made from TP316L stainless steel. The "L" in TP316L indicates the low carbon content of the steel, which provides better corrosion resistance in certain applications.The ASTM A213/A213M standard covers dimensions, mechanical properties, fabrication, and heat treatment requirements for TP316L U bend tubes. It ensures that the tubes meet the necessary criteria for quality, performance, and safety in high-temperature and corrosive environments.
The benefits of ASTM A213 U Bend Tube
Efficient Heat Transfer: The U bend design enhances heat transfer efficiency by allowing the tube to bend and form a U shape. This configuration increases the surface area and improves the contact between the hot and cold fluids, resulting in better heat exchange performance.Corrosion Resistance: TP304L stainless steel is known for its excellent corrosion resistance properties. It can withstand exposure to various corrosive environments, including high-temperature and high-pressure conditions. This makes it suitable for applications where resistance to corrosion is essential...
Chemical Composition of ASTM A213 TP316L
| Grade | C | Mn | Si | P | S | Ni | Cr | Mo | |
| TP316L | Min | 10.0 | 16.0 | 2.0 | |||||
| Max | 0.035 | 2.0 | 1.0 | 0.045 | 0.03 | 14.0 | 18.0 | 3.0 |
Mechanical Properies of ASTM A213 TP316L
| Grade | Tensile Str Ksi(Mpa) | Yield Str Ksi(Mpa) | Elongation(%) | Hardness | |
| Rockwell (HRB) | Brinell(HBW) | ||||
| TP316L | ≥70(485) | ≥25(170) | ≥35 | ≤90 | ≤192 |
Wall Thickness Tolerance of ASTM A213
| Welded, Hot-Finished Tubes | Type | Wall Thickness Tolerance |
| OD Range | Average(-) | |
| 6~65mm(Incl.) | SMLS&WLD | (-12.5%,+20%) |
| >65mm | SMLS&WLD t/D≤5% | (-12.5%,+22.5%) |
| >65mm | SMLS&WLD t/D>5% | (-12.5%,+15%) |
