Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | CHINA |
| Brand Name: | YUHONG |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008 |
| Model Number: | ASTM A266 Gr.2 Carbon Steel Forged Baffle Plate |
| Minimum Order Quantity: | 100KGS |
|---|---|
| Packaging Details: | PALLET,PLYWOOD CASE |
| Delivery Time: | 7DAYS |
| Payment Terms: | L/C, T/T |
| NAME: | CARBON STEEL TUBESHEET | STANDARD: | ASTM A266, ASME SA266 |
|---|---|---|---|
| MATERIAL: | Carbon Steel Grade 1, Grade 2, Grade 3, Grade 4 | SHAPE: | Straight, Helical, And Rod Baffle Configurations |
| SIZE: | As Buyer's Drawing Requirements | Production Process:: | Cutting, Rough Machining, Finish Machining |
| High Light: | Thread Hole Carbon Steel Tubesheet,Heat Exchanger Parts Sa266,Gr.2n Carbon Steel Tubesheet |
||

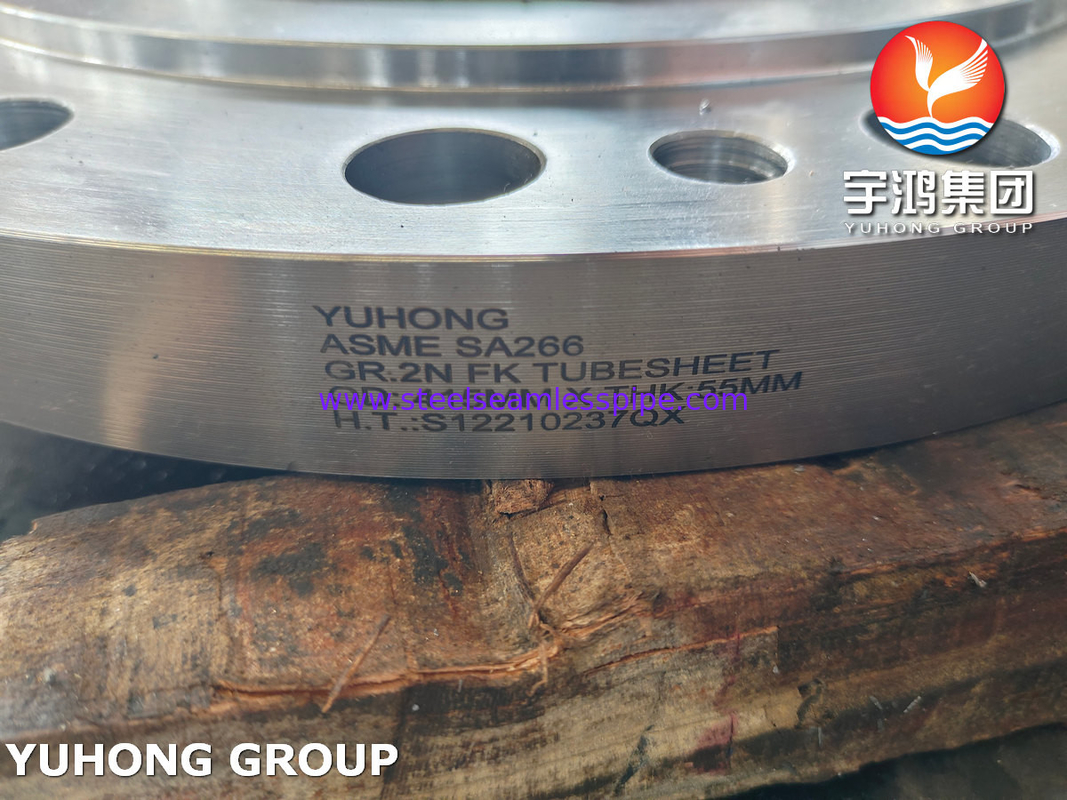

HEAT EXCHANGER PARTS SA266 GR.2N CARBON STEEL TUBESHEET THREAD HOLE
Description:

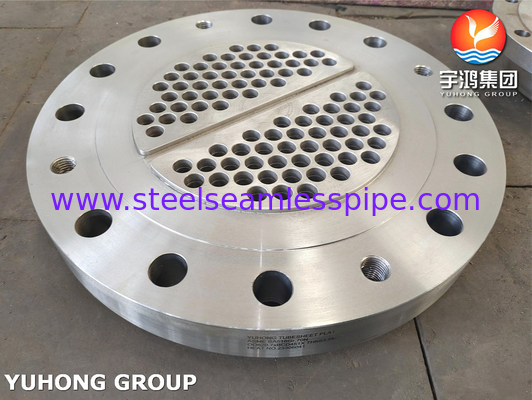

A tubesheet is usually made from a round flat piece of plate,sheet with holes drilled to accept the tubes or pipes in a accurate location and pattern relative to one another.The tube sheets are used to support and isolate tubes in heat exchangers and boilers or to support filter elements.Tubes are attached to the tube sheet by hydraulic pressure or by roller expansion.
ASTM A266 grade 2 is a type of ASTM A266 carbon steel. Cited properties are appropriate for the normalized condition. The graph bars on the material properties cards below compare ASTM A266 grade 2 to: wrought carbon or non-alloy steels (top), all iron alloys (middle), and the entire database (bottom).
Chemical Composition Requirements
| Item | Chemical Req. for ASTM A266, % | ||
| Gr. 1 & 2 | Gr. 3 | Gr. 4 | |
| C | ≤ 0.30 | ≤ 0.35 | ≤ 0.30 |
| Mn | 0.40~1.05 | 0.80~1.35 | 0.80~1.35 |
| P | ≤ 0.025 | ≤ 0.025 | ≤ 0.025 |
| S | ≤ 0.025 | ≤ 0.025 | ≤ 0.025 |
| Si | 0.15~0.35 | 0.15~0.35 | 0.15~0.35 |
Mechanical Properties
| Tensile Requirements |
Gr. 1 | Gr. 2 & 4 | Gr. 3 |
| T.S min. ksi [Mpa] |
60~85 [415~585] |
70~95 [485~655] |
75~100 [515~690] |
| Y.S min. ksi [Mpa] |
30 [205] |
36 [250] |
37.5 [260] |
| EL. in 2" or [62.5 mm] min. % |
23 [21] |
20 [18] |
19 [17] |
| R.o.A min. % |
38 | 33 | 30 |
Application:
Heat exchanger
boiler
pressure vessel
steam turbine
air conditioning
