| Place of Origin: | CHINA |
| Brand Name: | YUHONG |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008 |
| Model Number: | ASTM A358 CL1 TP316L |
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Ply-wooden Case /Iron Case/ Bundle With Plastic Cap |
| Delivery Time: | 15-35 DAYS |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000tons/month |
| Product Name: | Stainless Steel Pipe | Standard: | ASTM A358 |
|---|---|---|---|
| Material: | TP316L | Ends: | Plain Ends/ Bevelled Ends |
| Type: | Welded | Shape: | Round |
| Size: | Customized | Length: | Customized |
| High Light: | ASTM A358 Stainless Steel Tube,ASTM A358 TP316L Welded Tube | ||

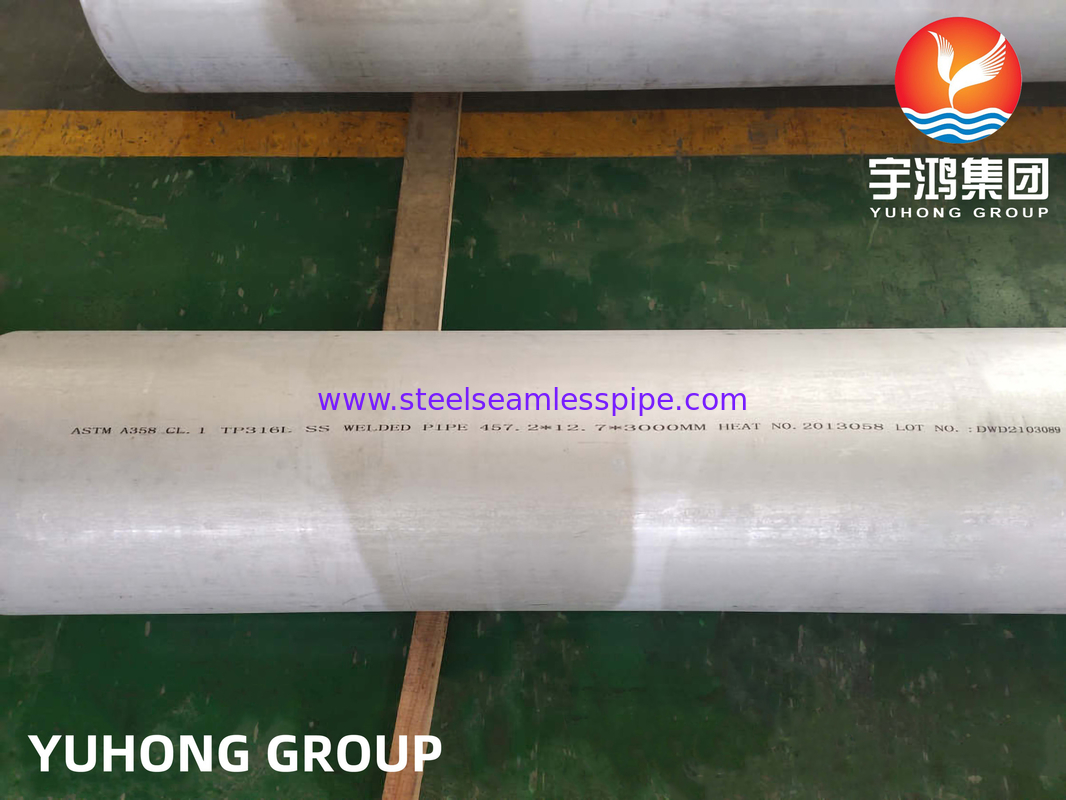

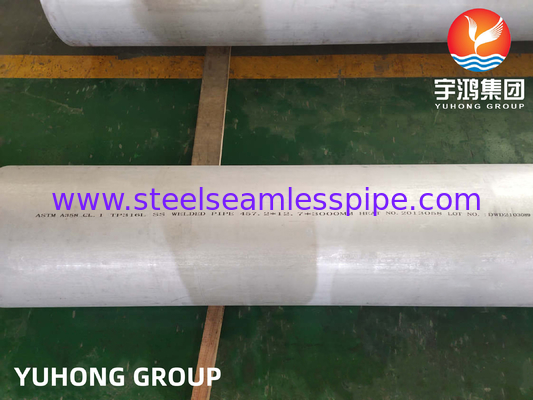

ASTM A358 CL1 TP316L,Stainless Steel Welded Pipe,High-Temperature Service
Overview
ASTM A358: The "ASTM" stands for the American Society for Testing and Materials, which sets standards for various materials and products. A358 specifically pertains to electric-fusion-welded (EFW) stainless steel pipes for corrosive or high-temperature applications.
CL1: CL1 refers to the Class 1 designation within the A358 standard. Class 1 encompasses pipes that are double-welded, using the full-penetration welding process. These welded tubes are capable of withstanding high internal pressures.
TP316L: TP316L is the specific grade of stainless steel used for these welded tubes. TP316L is a low carbon version of TP316 stainless steel, offering improved corrosion resistance, particularly in environments with sensitization potential, such as in welding applications.

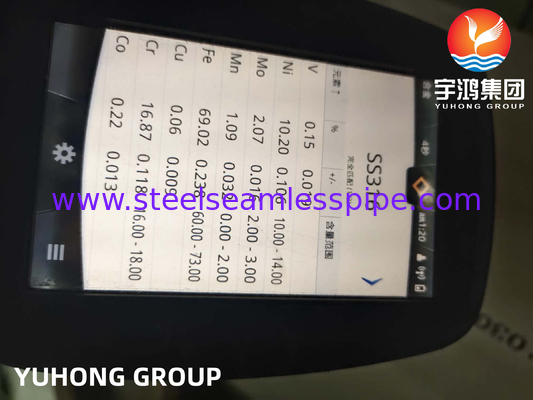

Chemical Composition of ASTM A358 CL1 TP316L
| Grade | Ni | Cr | Si | Mn | C | P | S | |
| TP316L | Min | 10.0 | 16.0 | |||||
| Max | 14.0 | 18.0 | 0.75 | 2.0 | 0.03 | 0.045 | 0.03 |
Mechanical Properies of ASTM A358 CL1 TP316L
| Grade | Tensile Str Ksi(Mpa) | Yield Str Ksi(Mpa) | Elongation(%) |
| TP316L | ≥70(485) | ≥25(170) | ≥40 |
The Application of ASTM A358 TP316L
Chemical and Petrochemical Industry: ASTM A358 CL1 TP316L welded tubes are utilized in chemical processing plants, refineries, and petrochemical facilities. They are suitable for handling corrosive substances such as acids, solvents, and chemicals, where resistance to corrosion and pitting is crucial.
Oil and Gas Industry: These welded tubes find application in the oil and gas sector for conveying fluids, including crude oil, natural gas, and refined petroleum products. The tubes' corrosion resistance and ability to withstand high pressures and temperatures make them suitable for pipelines, offshore drilling platforms, and other oil and gas infrastructure.
Power Generation: ASTM A358 CL1 TP316L welded tubes are used in power plants, particularly in environments involving high temperatures and steam. They are employed in boiler tubes, heat exchangers, condensers, and other components that handle hot water or steam.
Pharmaceutical and Biotechnology: The welded tubes' corrosion resistance and hygienic properties make them suitable for applications in pharmaceutical and biotech industries. These tubes are often used in equipment such as processing vessels, storage tanks, and piping systems for the production of drugs, vaccines, and other medical products.
Food and Beverage Industry: In the food and beverage industry, ASTM A358 CL1 TP316L welded tubes are utilized in processing, storage, and transportation of food products. Their resistance to corrosion and easy cleanability make them suitable for applications involving acidic or corrosive food substances.
