| Place of Origin: | CHINA |
| Brand Name: | YUHONG |
| Certification: | ISO9001-2008, API 5L, API 5CT |
| Model Number: | ASTM B407 |
| Minimum Order Quantity: | 100 PC |
|---|---|
| Price: | 1-100000 USD |
| Packaging Details: | Ply-wooden Case / Bundle With Plastic Cap |
| Delivery Time: | 35-55 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1500tons/month |
| Product: | Seamless Pipes | Materialrd: | Nickel Alloy Steel |
|---|---|---|---|
| Standard: | ASTM B407 | Grade: | UNS NO8811 |
| Application: | Heat Exchanger / Boiler /Condenser Tube | Packing Details: | Ply-wooden Case/ Bundle With Plastic Cap |

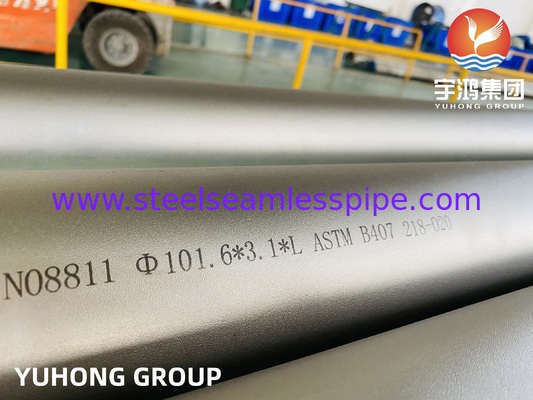

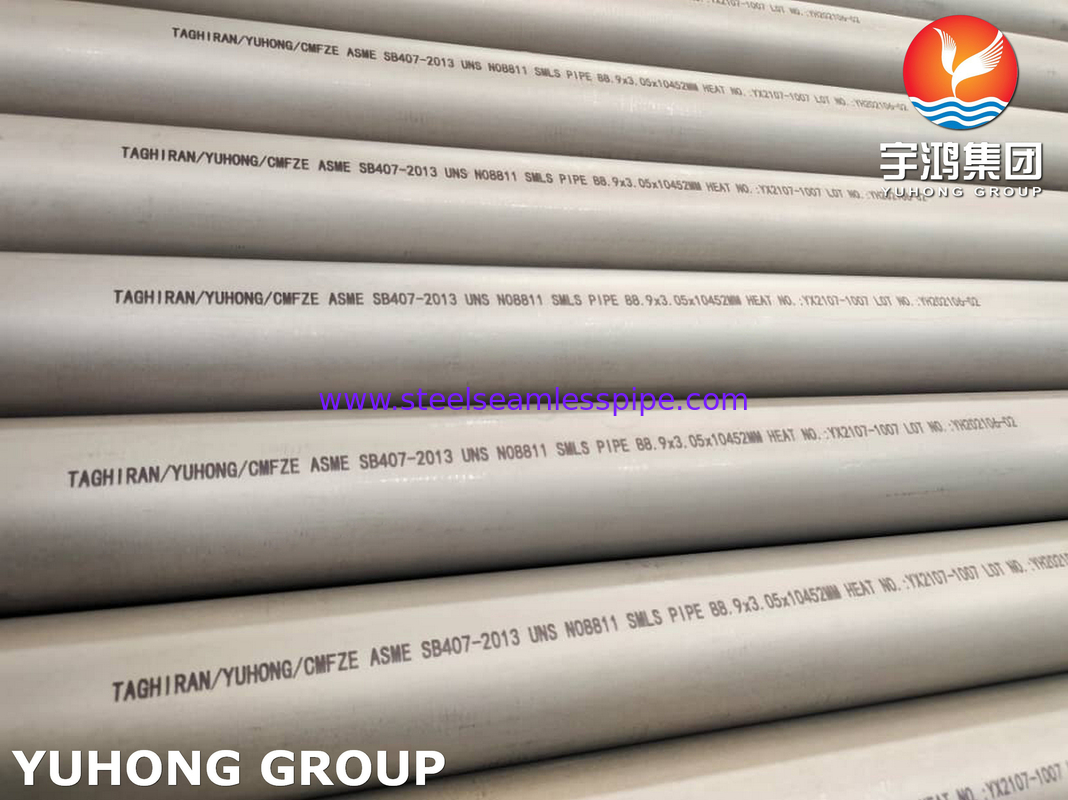

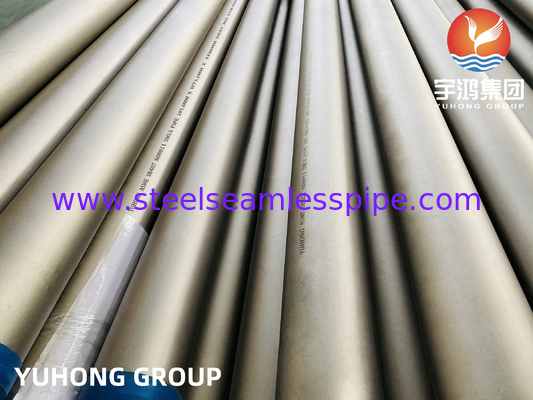

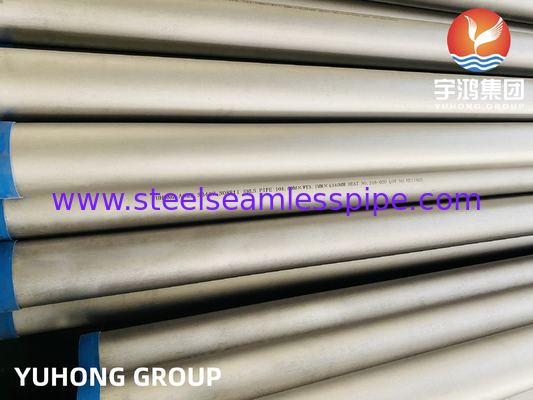

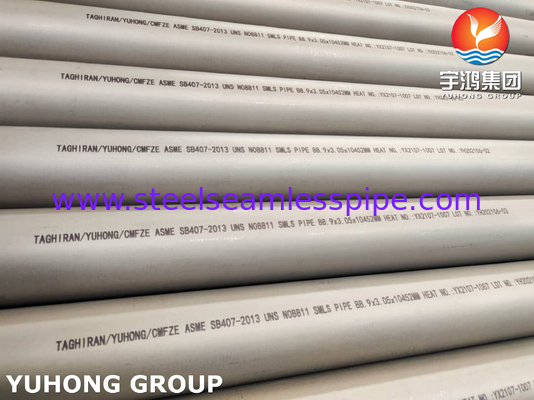

ASME SB407 SMLS UNS NO8811 Nickel Alloy Boiler Pipes Tuberias
YUHONG Group offers ASTM B407 UNS NO8811 SMLS nickel alloy steel pipes.
ASTM B407 This specification covers UNS N08120, UNS N08800, UNS N08801, UNS N08810, UNS N08811, UNS N08890, and UNS N06811 in the form of cold-worked and hot-finished annealed seamless pipe and tube.
Alloys UNS N08800 and UNS N06811 are normally employed in service temperatures up to and including 1100°F (593°C). Alloys UNS N08120, UNS N08810, UNS N08811, and UNS N08890 are normally employed in service temperatures above 1100°F (593°C) where resistance to creep and rupture is required, and they are annealed to develop controlled grain size for optimum properties in this temperature range.
This page talk about the material NO8811 incoloy 800HT. The high temperature resistance of Alloy 800HT is comparable to Alloy 800H.Incoloy 800HT is resistant to many corrosive media. Its high nickel content makes it resistant to stress corrosion cracking in aqueous corrosion conditions. The high chromium content provides better resistance to pitting and crevice corrosion cracking. The alloy has good corrosion resistance to nitric acid and organic acids, but limited corrosion resistance in sulfuric acid and hydrochloric acid.
Chemical Composition % NO8811
| Ni | Cr | FeA | Mn | C | Cu | Si | S | Al | Ti |
| 30.0-35.0 | 19.0-23.0 | 39.5min | 1.5max | 0.06-0.10 | 0.75max | 1.0 | 0.015 | 0.15-0.60 | 0.15-0.60 |
A Iron shall be determined arithmetically by difference.
Mechanical Property NO8811
| Condition (Temper) | Tensile Strength min | Yield Strength, 0.2% offset min | Elongation |
| hot-finished/cold-worked annealed | 65000 psi,450 MPa | 25000 psi,170 MPa | 30% |
Heat Treatment --- The final heat treatment of UNS N08811, UNS N08890, 2100°F (1149°C) minimum
Density --- 8.0 g/cm3
Melting point --- 1350-1400 ℃
Applications
Heat Exchangers
Power Generation
Petrochemical Industry
Chemical Processing
Oil and Gas Industry and others
