Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | CHINA |
| Brand Name: | YUHONG HOLDING GROUP |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008 |
| Model Number: | A182 F304 F316 |
| Minimum Order Quantity: | 1P |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Box package |
| Delivery Time: | 10-15 DAYS |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000Ton per month |
| Base Material: | B163 N04400 |
|---|

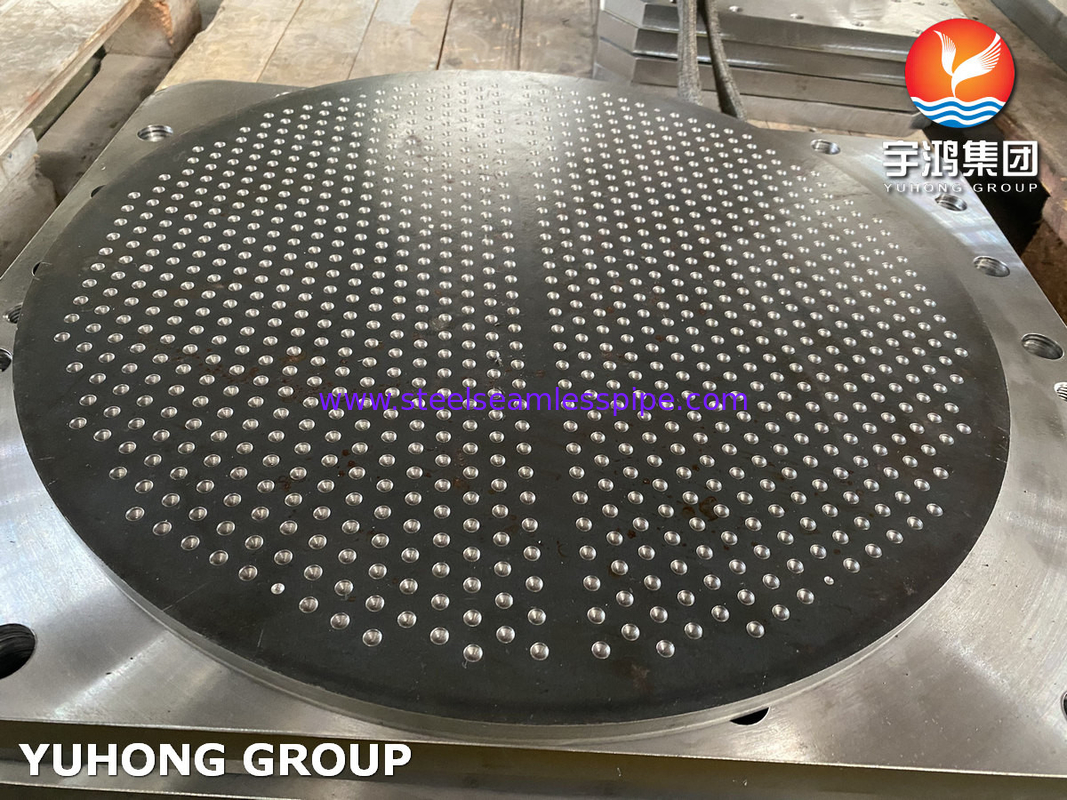

Forged Stainless Steel Tube Sheet For Shell and Tubular Heat Exchanger Fixied Type,U-type type ,Floating Type
Tubesheet is usually made from a round flat piece of plate,sheet with holes drilled to accept the tubes or pipes in a accurate location and pattern relative to one another.The tube sheets are used to support and isolate tubes in heat exchangers and boilers or to support filter elements.Tubes are attached to the tube sheet by hydraulic pressure or by roller expansion.A tubesheet may be covered in a cladding material which serves as a corrosion barrier and insulator.Low carbon steel tube sheets can include a layer of a higher alloy metal bonded to the surface to provide more effective corrosion resistance without the expense of using the solid alloy,which means it can save a lot of cost.
|
Material
|
ASTM A105, LF2, CL1 / CL2 ,16MN,20#
ASTM A182, F304 / 304L, F316 / 316L,A182F317/317L,A182F310,F321,F347,316Ti
F12,F11,F22,F5,F9,F91,F51,F53,F55,F60,F44,F304H,F316H,F317H,F321H,F347H,INCONEL 600,625,825,monel 400,monel K500, hastelloy C276 ,hastello G30,incoloy 800, incoloy 800ht ect.
|
|||
|
Type
|
1. Plate Flange 2. Flat Flange 3. Slip on Flange 4. Welding Neck Flange 5.Long Welding Neck Flange 6. Blind Flange 7. Socket
Welding Flange 8. Thread Flange /Screwed Flange 9. Lap Joint Flange |
|||
|
Size
|
1/2"-100",SCH5S-SCH160S,XS,XXS,STD
|
|||
|
Applications
|
Water works, Shipbuilding industry, Petrochemical & Gas industry, Power industry, Valve industry,and general pipes connecting
projects etc. |
|||
Typical Hole Patterns:
The most common types of holes experienced in tube sheet drilling are triangular, rotated triangular, square and rotated square. Each hole pattern presents its own drilling challenges. See typical pattern types below.Rotated Triangular Tube Sheet Pattern Example

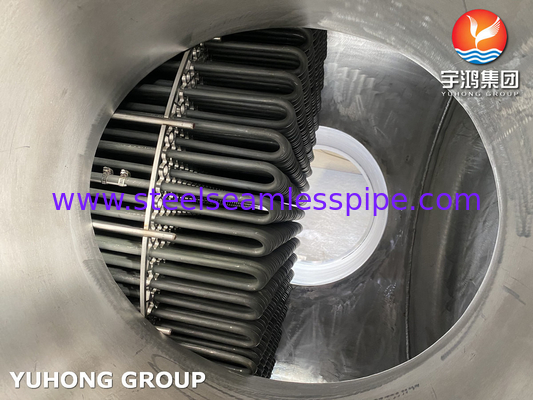

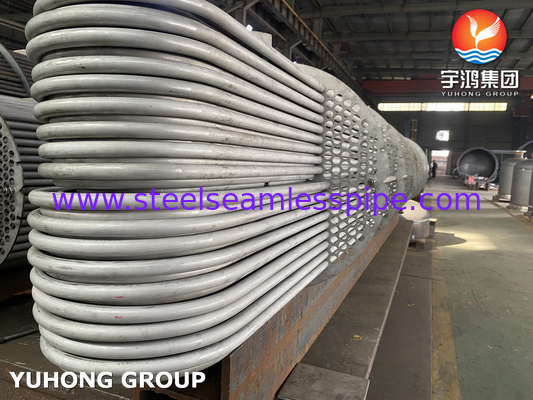

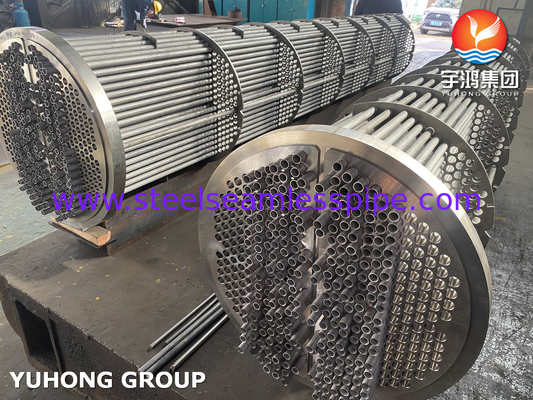

Types of Shell & Tube Heat Exchangers:
Including Fixed tubesheet type, U-tube type and Floating tubesheet type, in a variety of metals including Carbon Steel Q235B/Q345R, Stainless Steel 304/316, Nickel Alloy,titanium,graphite etc.
Application :
It is widely used in chemical industry ,construction ,water supply ,drainage ,petroleum ,light and heavy industry .Refrigeration ,sanitation ,water heating ,fire ,electric power ,aerospace ,ship building and other basic engineering .
