Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | China |
| Brand Name: | YUHONG |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015 |
| Model Number: | ASTM A179, ASME SA179 |
| Minimum Order Quantity: | 500 KGS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Ply-Wooden Case / Iron Case / Bundle with Plastic Cap |
| Delivery Time: | 5 - 90 Work Days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | According to Clients' Requirement |
| Standard: | ASTM A179, ASME SA179 | Tube Material: | Carbon Steel, Stainless Steel, Alloy Steel, Copper |
|---|---|---|---|
| Fin Material: | Aluminum, Copper | Fin Height: | 17 Mm Max |
| Fin Pitch: | 2.0mm - 5.0mm | Fin Thick: | 0 - 0.4mm |
| Tube Length: | 18 Meters Max | Applications: | Heater Parts,Refrigeration Parts,heat Exchanger,Cooler,Fluid Cooling |

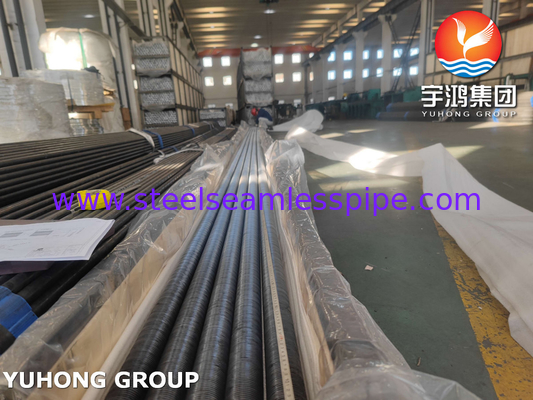

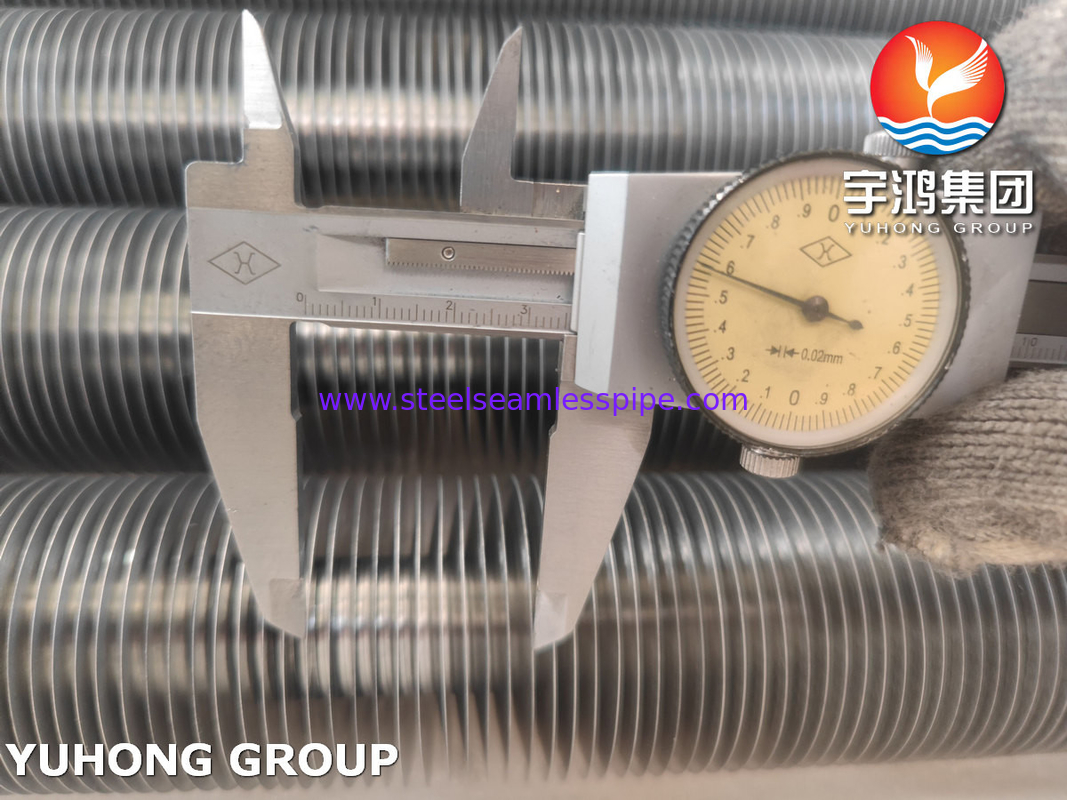

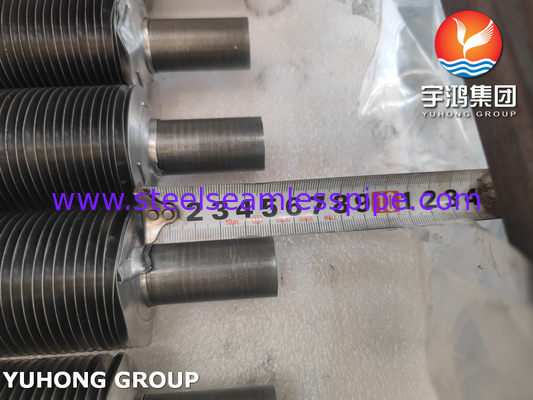

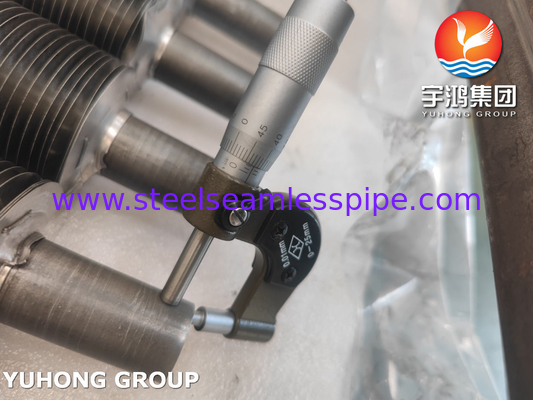

ASTM A179 Carbon Steel Wound L Type Fin Tube With Aluminum Fins For Oil Fire Furnace
ASTM A179 Carbon Steel L Type Fin Tube is a fin tube made of aluminum fin strip wounded into an L-shaped spiral under tension and wrapped tightly around the outer surface of the base tube. The tension in fin strips of the L Type Fin Tube wraps around the tube, causing the fin feet to press forcefully against the base tube, holding the fins firmly in place. L Type Fin Tube is usually used in air coolers in petrochemical, power generation, paper and pulp, building heating and other industries, and heat exchangers in power plants, like electricity, nuclear, thermal and geothermal power plants.
The key purpose of L-Type Fin Tubes is to enhance heat transfer efficiency. The L-shaped fins increase the surface area of the base tube, which improves heat dissipation or heat absorption in applications requiring high heat transfer rates.
Fin Tube Sizes:
| Type | Description | Base tube | Fin Sizes (mm) | ||
| O.D. (mm) | Fin Pitch | Fin Height | Fin Thick | ||
| Wound | L / KL / LL Type Fin Tube | 16-63 | 2.1-5 | 17 max | 0-0.4 |
Features:
1. Anti-corrosion
2. Anti-wear
3. Good Stability
4. Anti-fouling ability
“L” type Fin Tube:
Chemical Components(%):
| C | Mn | P | S |
| 0.06-0.18 | 0.27-0.63 | ≤0.035 | ≤0.035 |
Mechanical Properties:
| Tensile Strength (Mpa) |
Yield Strength (Mpa) |
Elongation (%) |
Hardness (HRB) |
| ≥325 | ≥180 | ≥35 | ≤72 |
Applications:
Condenser
Evaporator
Air Coolers
Seawater Desalination
Fertilization
Petrochemical Industry
Electric Power Plant
Paper and Pulp Plant
Food Industry
HVAC Systems
