Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | CHINA |
| Brand Name: | YUHONG |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008 |
| Model Number: | Stainless Steel, Carbon Steel, Nickel Ally Steel, Copper |
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | 1-150000 USD |
| Packaging Details: | Standard Export Package |
| Delivery Time: | 30-50 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 500 pcs/month |
| Product: | Heat Exchanger, Boiler Body Flange | Standard: | As Client's Requests |
|---|---|---|---|
| Grade: | As Client's Requests | Material: | Stainless Steel, Carbon Steel, Nickel Ally Steel, Copper |
| Size: | As Client's Drawing | Use: | Heater Parts,Heat Exchanger, Condenser, Boiler |
| Industries: | Chemical, Petroleum, Pharmaceutical, Energy,etc | Packing: | Standard Export Package |

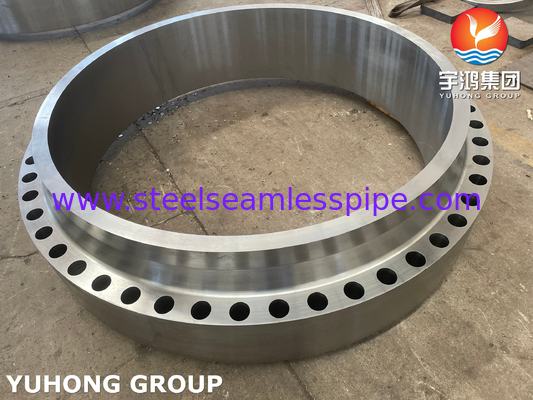

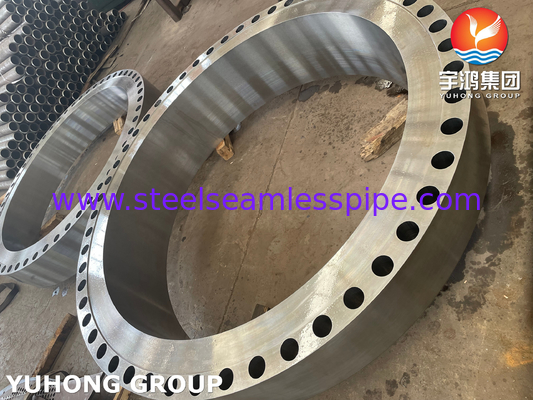

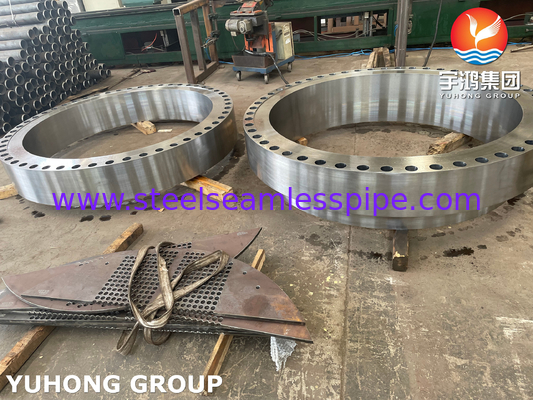

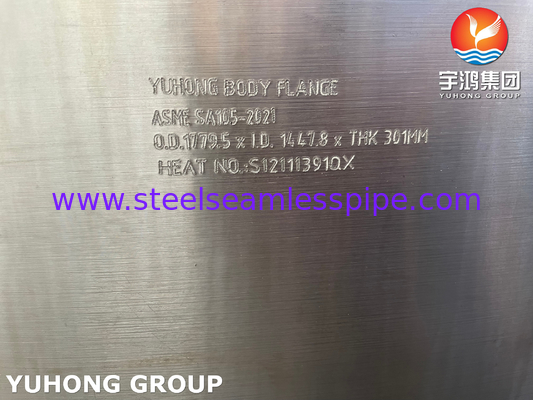

ASME SA105 Carbon Forged Steel Body Flange On Shell For Heat Exchanger
YuHong offers Heat Exchanger Parts, Tubesheet, Body Flange, Nozzle Neck, Baffle Plate, Heat Exchanger Tubes, Support Plate, etc. And we have many experiences in exporting. With high quality and good price, our products are deeply trusted by our customers
Body / Shell Flange
Shell flanges are made of pressure vessel plate or forged ring.
It's a critical connecting component in large shell and piping systems, and it's widely used in high-pressure applications, such as pressure vessels, heat exchanger shells, and pipeline, hydraulic systems. It can also be used in low-pressure applications, such as in HVAC systems.
Specification
| Product | Body Flange For Heat Exchanger Or Boiler, etc |
| Material Grade | ASTM A105 / ASME SA105 |
| Standard | A / SA 105 ASME B16.5 |
| Manufacture Method | Forged |
| Size | 1/2" to 48", sch5S to sch.XXS |
| Class | 150#, 300#, 400#, 600#, 900#, 1500#, 2500# |
| Surface Treatment | Galvanized/Anti-Corrosion Coating |
| Application | For Heat Exchanger / Boiler / Condenser, etc |
Grades We Can Do
Stainless Steel Flange: F304, F304L, F304H, F316, F316L, F316Ti, F310, F310S, F321, F321H, F317, F317L, F347, F347H, F904L, etc.
Duplex Steel (Super) Flange: UNS S31803, 2205, S31254 (254SMO) ;UNS S32750, UNS S32760, UNS S32304, S31500
Carbon Steel Flange: A105 / A105N, etc.
Alloy Steel Flange: F1, F11, F22, F5, F9, F91, etc.
Nickel Alloy Flange as below: Monel 400 & K500; Inconel 600, 601, 617, 625, 690, 718, X-750; Incolloy 800, 800H, 800HT, 825, 925:Hastelloy C22, C4, C276, S, C2000, G-30, G-35, X, N, B, B-2, B-3.
YUHONG can make it according to your drawing, welcome inquiry to YUHONG!
