Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | China |
| Brand Name: | YUHONG |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015 |
| Model Number: | EN10025-2 S235JR |
| Minimum Order Quantity: | 1 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Ply-wooden Case / Pallet |
| Delivery Time: | 5 - 60 Work Days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | According to Clients' Requirement |
| Standard: | EN10025-2 | Material Grade: | S235JR |
|---|---|---|---|
| Sizes: | As Per Client's Drawing | Product Name: | Carbon Steel Baffle Plate |
| NDT: | UT | Baffle Types: | Single Segmental Baffle; Double Segmental Baffle; Triple Segmental Baffle; Disk And Doughnut Baffles; Orifice Baffles; Rod Baffles |
| Baffle Material: | Stainless Stee, Carbon Steel , Alloy Steel , Copper Alloy , Nickel Alloy | Applications: | Heat Exchanger, Boiler, Petroleum, Condenser, Etc. |

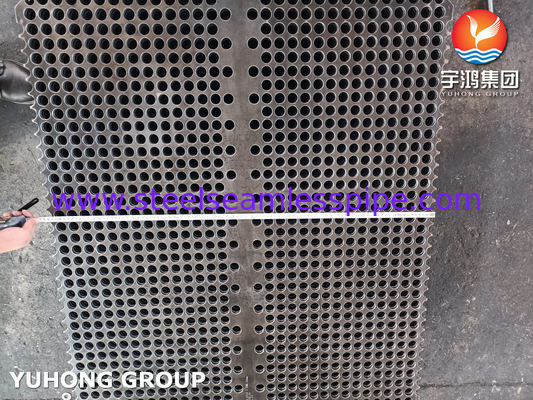

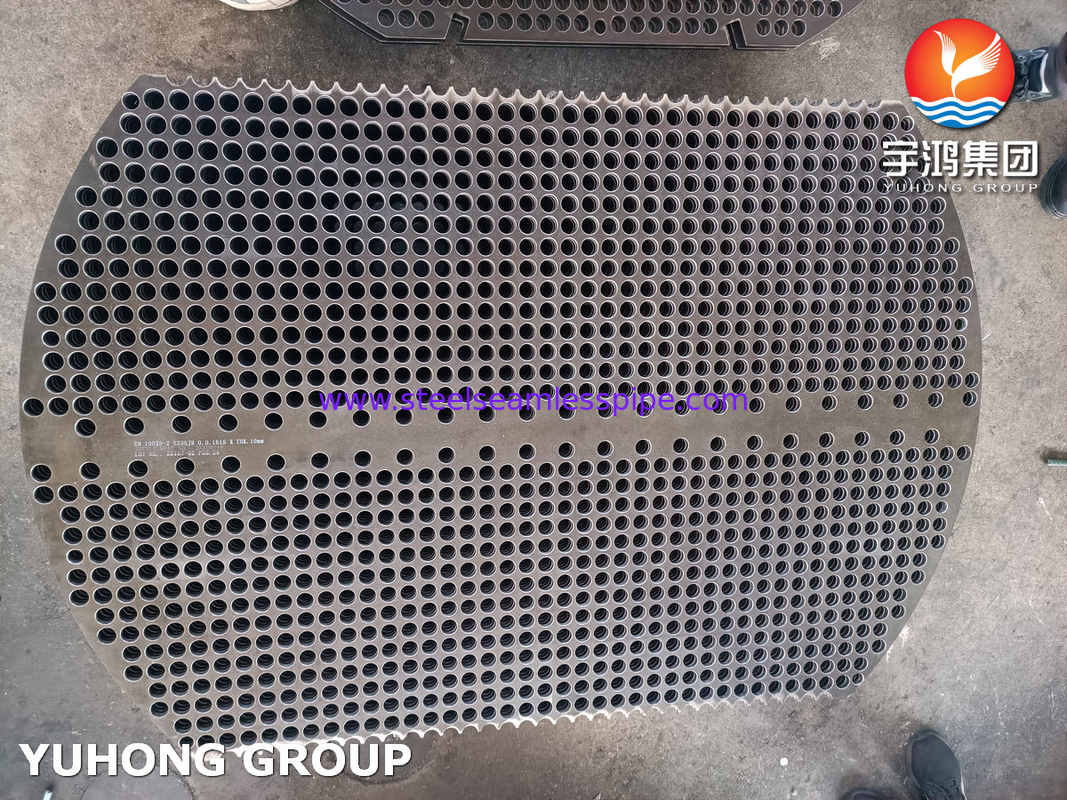

EN10025-2 S235JR Carbon Steel Baffle Plate For Shell And Tube Heat Exchangers
EN10025-2 steel is a high-strength structural grade. The EN10025-2 Steel Plate is designed with a superior composition of carbon, silicon, manganese, phosphorous, sulfur, and nitrogen. The content embedded in these plates gives them enhanced resistance to corrosive and oxidative media. The Standard En10025 grade exhibits outstanding strength and superior load-bearing capacity. These lightweight components provide good stability to different applications.
EN10025-2 S235JR steel is known as EN standard carbon steel, or called as mild steel. The minimum yield strength of EN 10025-2 S235JR steel shall be 235 Mpa for nominal thickness, and tensile strength of EN10025-2 S235JR steel shall be within 360-510Mpa. We, YUHONG GROUP, can supply EN10025-2 S235JR carbon steel baffle plates well with many years' experience.These baffles can be used in applications, such as Heat Exchangers, Boilers, Power Plants, Chemical Industry, and so on.
Features:
Anti-Corrosive
High Tensile Strength
Rugged Construction
Excellent Surface Finishes
Stress Corrosion Cracking Resistance
Oxidation and Pitting Resistance Ability
Withstanding Easily Heavy Loads and At High Temperature
Chemical Composition:
| C max | Mn max | P max | S max | N max | Cu max | CEV max |
| 0.2 | 1.4 | 0.04 | 0.04 | 0.012 | 0.55 | 0.38 |
Mechanical Properties:
| Grade | Yield strength ReH/(N/mm2) (t≤16mm) |
Tensile strength Rm/(N/mm2) (3mm≤t≤16mm) |
Elongation A/% (3mm≤t≤40mm) min |
| S235JR | 235 Mpa min | 360-510 Mpa | 26 |
Applications:
Heater Parts
Boilers
Condensers
Shell And Tube Heat Exchanger
Construction Equipment
Petrochemical Industry
Ship Building Equipment
Engineering Equipment
Offshore and Onshore Industry
