A baffle is a device used in various industries, such as chemical processing, oil and gas, and power generation, to control the flow of fluids or gases within a vessel or heat exchanger. It is typically a solid plate or barrier that is inserted into the vessel or heat exchanger to direct the flow of the fluid or gas in a specific pattern. The purpose of a baffle is to enhance heat transfer, improve mixing, or increase the efficiency of the process.

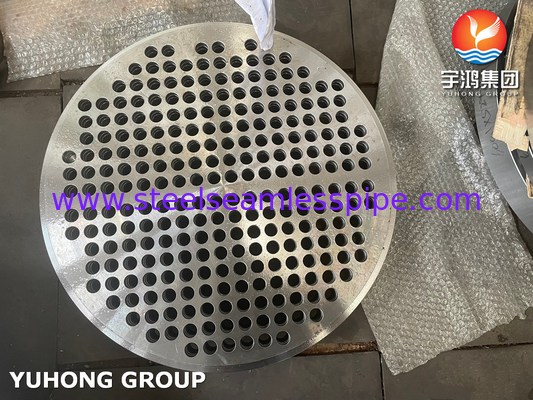

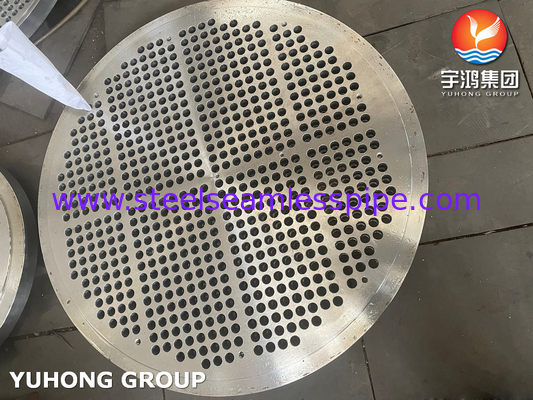

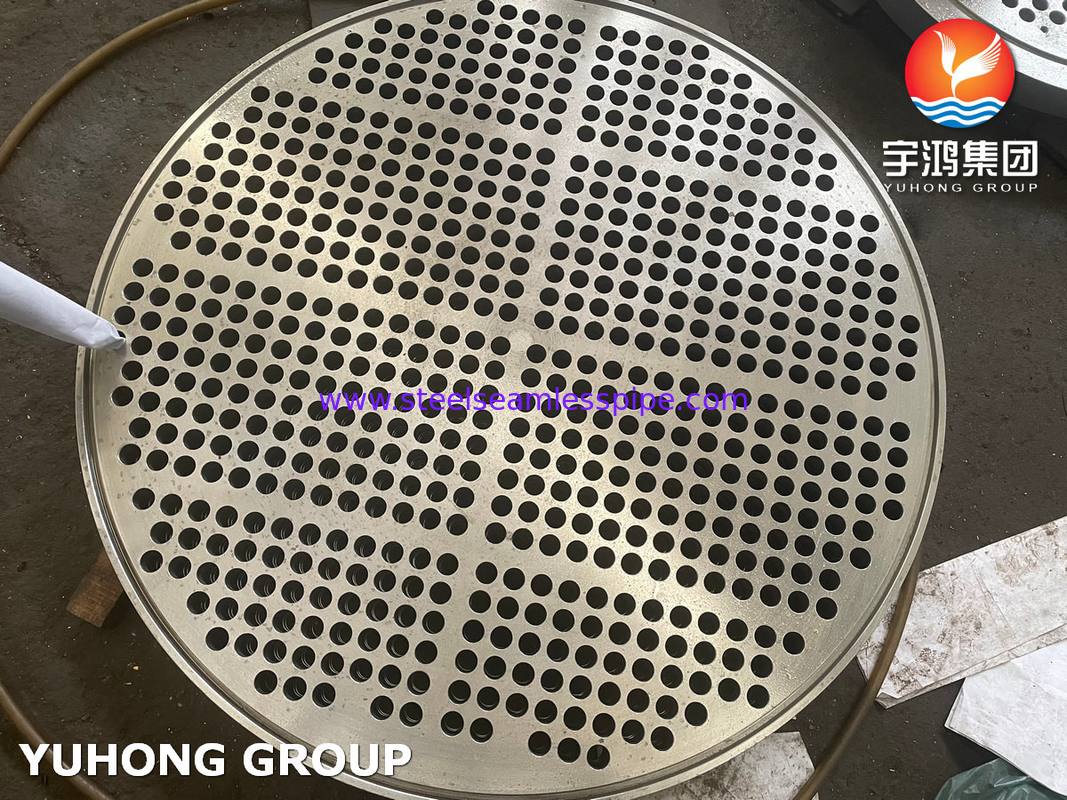

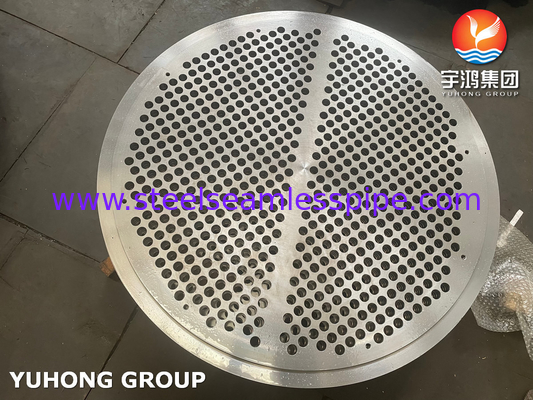

A tube sheet, on the other hand, is a plate that is used to support and secure the ends of tubes in a heat exchanger or boiler. It is typically a thick, flat sheet that has holes drilled into it to accommodate the tubes. The tubes are then expanded or welded into the holes of the tube sheet to create a secure and leak-proof connection. The tube sheet acts as a barrier between the fluid or gas inside the tubes and the surrounding environment.


In a heat exchanger, the baffles and tube sheets work together to optimize heat transfer. The baffles create turbulence in the fluid or gas flow, which enhances heat transfer by increasing the contact between the fluid or gas and the tubes. The tube sheets, on the other hand, provide structural support for the tubes and prevent leakage, ensuring efficient and safe operation of the heat exchanger.

Different types of baffles used in various industries and applications. Here are a few common types:

1. Acoustic Baffles: These baffles are designed to absorb sound and reduce noise levels in a space. They are often used in recording studios, theaters, and industrial settings to improve acoustics.

2. Flow Baffles: Flow baffles are used in tanks or vessels to control the flow of liquids or gases. They help to enhance mixing and prevent the formation of dead zones or stagnant areas.

3. Heat Transfer Baffles: These baffles are used in heat exchangers to enhance heat transfer between the fluid and the surrounding medium. They improve the efficiency of the heat exchange process.

4. Light Baffles: Light baffles are used in optical systems to control the direction and intensity of light. They prevent unwanted reflections, glare, or stray light from affecting the performance of the system.

5. Water Baffles: Water baffles are often used in water treatment systems or wastewater treatment plants to control the flow of water and separate different components or impurities.

Some key applications of baffles and heat exchangers include:

1. HVAC Systems: Baffles and heat exchangers are used in heating, ventilation, and air conditioning systems to transfer heat from one fluid to another. They help in maintaining the desired temperature and humidity levels in buildings.

2. Power Plants: Baffles and heat exchangers are extensively used in power generation plants to transfer heat from the combustion gases to the working fluid (steam or water) in order to generate electricity. They are commonly found in boilers, condensers, and cooling towers.

3. Chemical Processing: Baffles and heat exchangers play a crucial role in chemical processing plants by facilitating the transfer of heat between different process streams. They are used for tasks such as heating, cooling, condensing, and evaporating various chemicals and fluids.

4. Oil and Gas Industry: Baffles and heat exchangers are employed in the oil and gas industry for processes like crude oil refining, natural gas processing, and petrochemical production. They are used to recover heat from hot process streams and transfer it to other fluids or for preheating feedstock.

5. Food and Beverage Industry: Baffles and heat exchangers are utilized in the food and beverage industry for tasks such as pasteurization, sterilization, and cooling. They help in maintaining the desired temperature and quality of food and beverage products.

6. Refrigeration and Air Conditioning: Baffles and heat exchangers are integral components of refrigeration and air conditioning systems. They are used to transfer heat between the refrigerant and the surrounding air or water, thereby cooling the desired space.

7. Automotive Industry: Baffles and heat exchangers are employed in automotive applications, such as engine cooling systems, air conditioning systems, and transmission oil coolers. They help in dissipating excess heat generated by the engine and maintaining optimal operating temperatures.
