Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | China |
| Brand Name: | YUHONG |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015 |
| Model Number: | ASTM A234 WP9 CL1 CL3 |
| Minimum Order Quantity: | 100 KGS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Ply-wooden Case / Pallet |
| Delivery Time: | 5 - 60 Work Days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | According to Clients' Requirement |
| Standard: | ASTM A234, ASME SA234 | Material Grade: | WP9 CL1, CL3 |
|---|---|---|---|
| Product Name: | Alloy Steel Elbows | Sizes: | 1/8" - 48" |
| Wall Thickness: | SCH 5S - SCH XXS | Technics: | Butt Weld |
| Type: | Seamless, Welded | Applications: | Petroleum, Chemical, Connection, Beer, Etc. |
| High Light: | 180 Degree SR Elbow,Oil Refineries SR Elbow,WP9 Alloy Steel Buttweld Elbow |
||

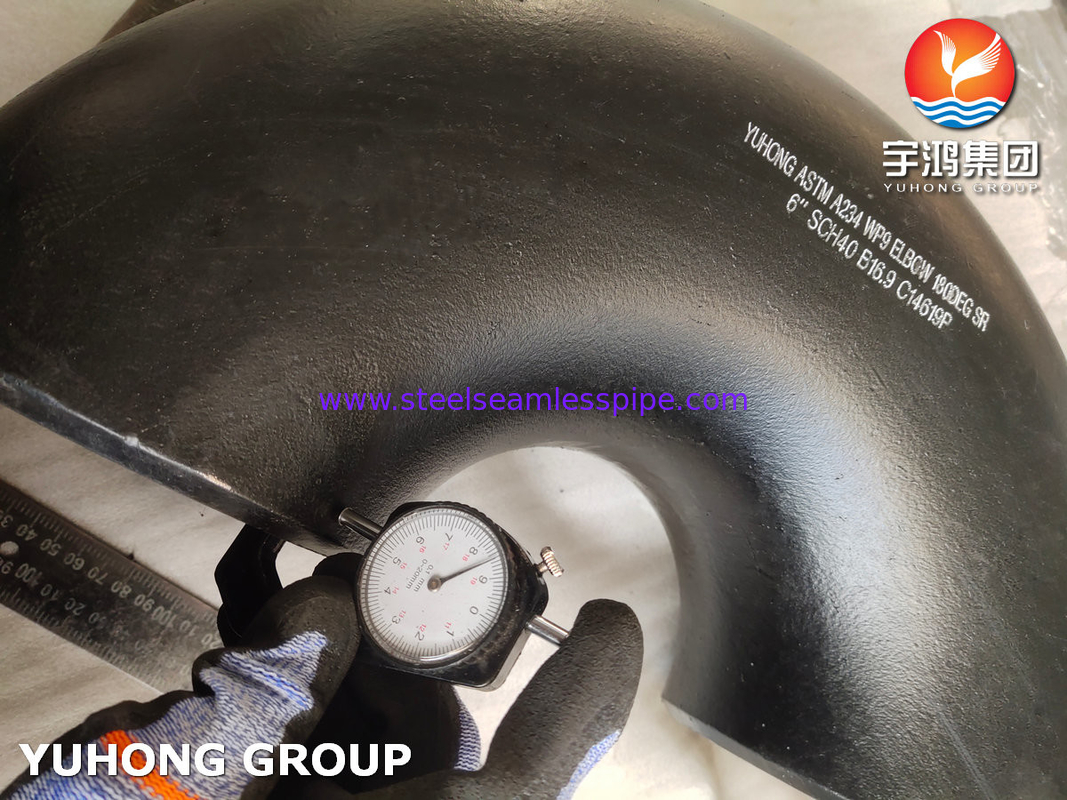

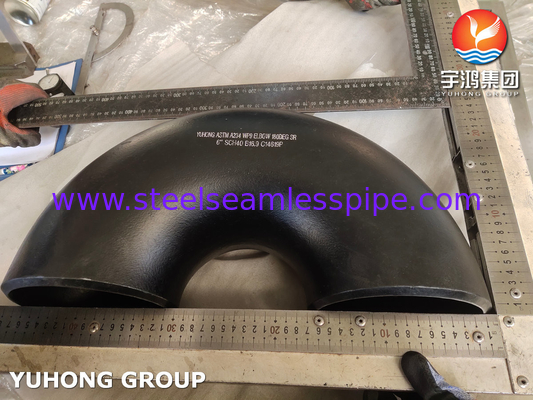

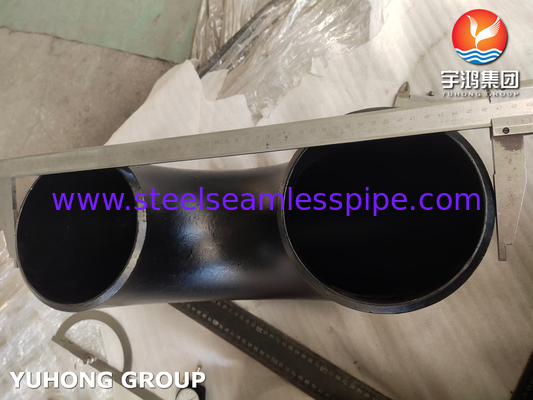

ASTM A234 WP9 CL1 CL3 Alloy Steel Buttweld 180Deg SR Elbow B16.9 For Oil Refineries
ASTM A234 WP9 Buttweld Elbows are pipe fittings made from alloy steel grade. These fittings are designed to connect or join two pieces of pipes of the same or different sizes and they are widely used in high-temperature and high-pressure applications. ASTM A234 WP9 Alloy Steel Buttweld Fittings have good resistance to corrosion, high temperature, high pressure and abrasion. They are also highly durable. They also provide tight and leak-proof joints, and have good weldability, making them ideal for being used in various industrial applications. ASTM A234 WP9 alloy steel pipe fittings can be used in industry fields, like Oil, Gas, Power plant, Water Treatment, Chemical Industry etc.
Specification:
| Specification | ASTM A234, ASME SA234 |
| Thickness | SCH 5S - SCH XXS |
| Grade | WP9 CL1 CL3 |
| Size Range | Seamless: 1/8″ - 10″ Welded: 1/2″ - 48″ |
| Bending Radius | Radius=1 D, 2D, 3 D, 5D, 6D, 8 D, 10D |
| Dimension | ASME/ ANSI B16.9 | ASME B16.28 | MSS-SP-43 | BS1560 | BS4504 | BS10 |
| Types | Welded | Seamless | Fabricated |
Chemical Composition:
| C | ≤0.15 |
| Mn | ≤0.6 |
| Si | 1.00 |
| S | ≤0.03 |
| P | ≤0.03 |
| Cr | 8-10 |
| Mo | 0.90-1.10 |
Mechanical Properties:
| Tensile Strength (Mpa) | Yield Strength (Mpa) | Elongation % |
| 380 min | 585 min | ≥30 |
Applications:
Pharmaceutical Industry
Chemical Industry
Sea Water Equipment
Heat Exchangers
Condensers
Pulp and Paper Industry
Power Generation
Petrochemicals
Gas Processing Plant
