Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | CHINA |
| Brand Name: | YUHONG |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008 |
| Model Number: | SUS430J1L,SS304,SS316L |
| Minimum Order Quantity: | 100KGS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Ply-wooden Case /Iron Case/ Bundle with plastic Cap etc. |
| Delivery Time: | 10 DAYS |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 800 Tons/ month |
| STANDARD: | ASTM A240 | BRAND: | YH,YHSS,YUHONG |
|---|---|---|---|
| MATERIAL: | SUS430J1L,321,301,304,347,309 | SURFACE: | BA,NO.1,2B |
| TYPE: | PLATE,COIL,STRIP | PACKAGE: | PLYWOOD CASE,PALLET |
| APPLICATION: | Car Decorations | Tolerance: | Thickness: +/-0.02mm Width:+/-2mm |
| High Light: | Car Decorations Precision Steel Strip,304 Stainless Steel Precision Steel Strip,ASTM A240 Precision Stainless Steel Strip |
||

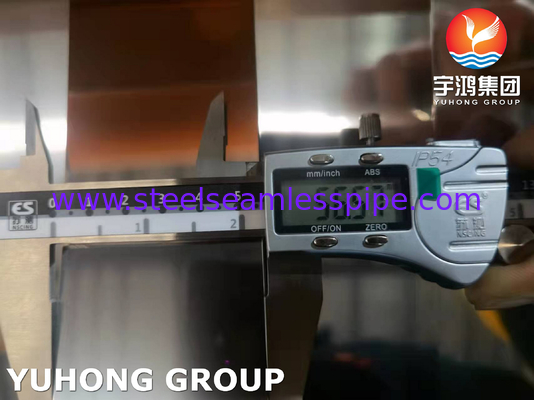

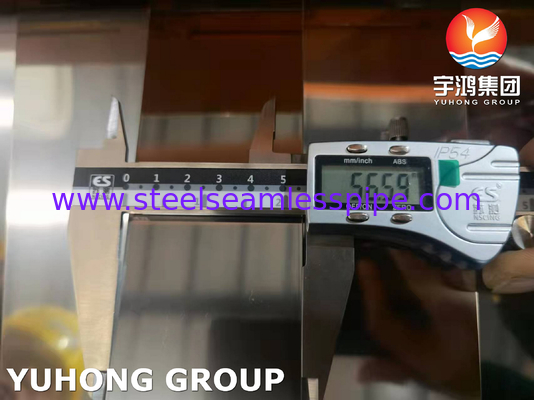

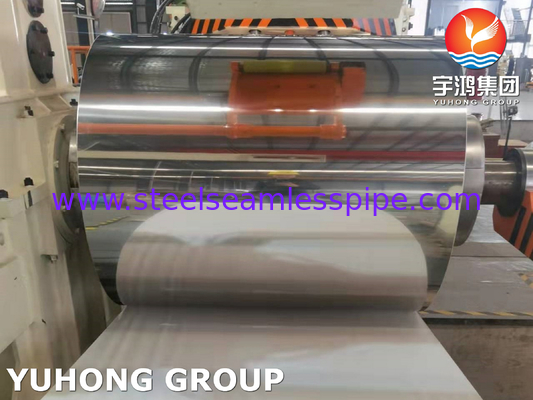

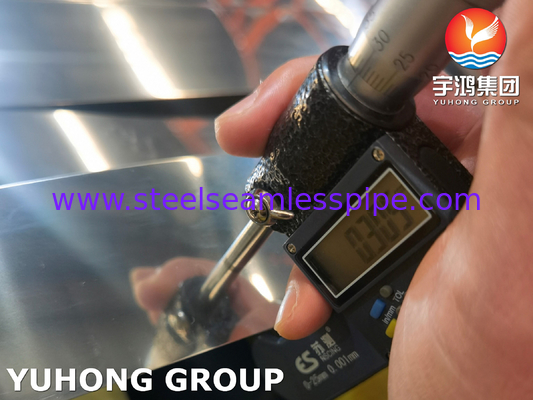

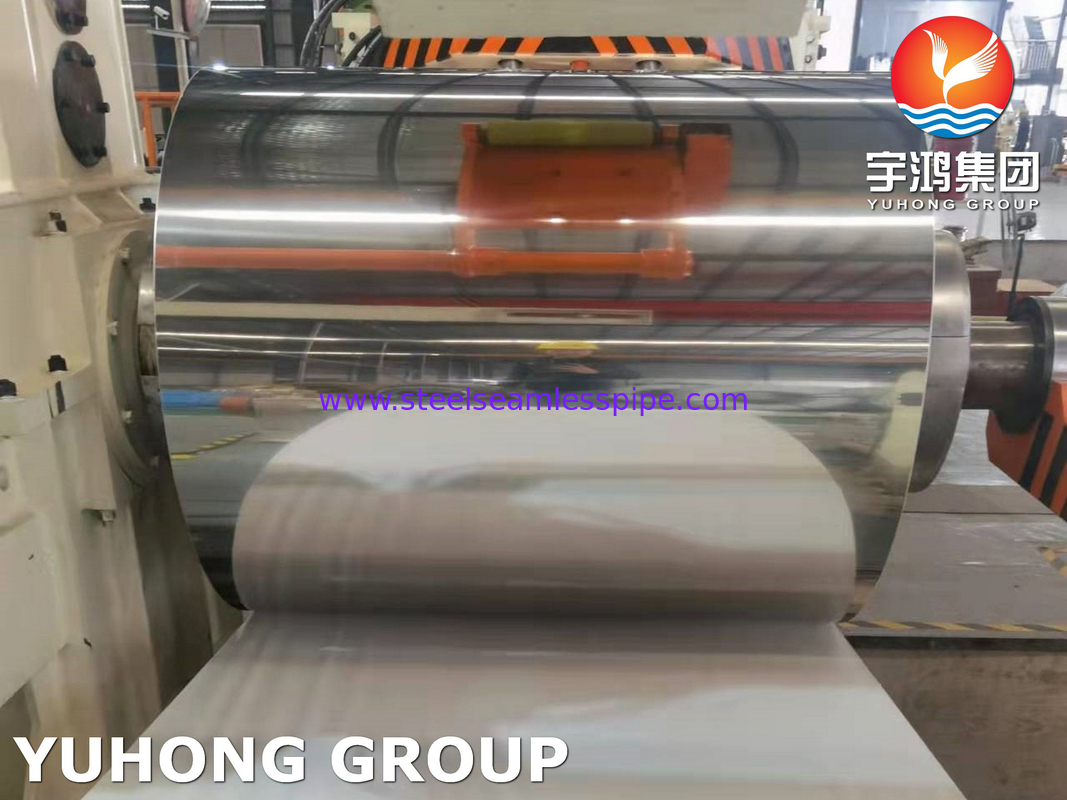

ASTM A240 SS304 STAINLESS STEEL PRECISION STEEL STRIP for Car Decorations
ASTM A240 SS304 stainless steel is the most widely used chromium-nickel stainless steel. As a widely used steel, it has good corrosion resistance, heat resistance, low-temperature strength and mechanical properties; it has good hot working properties such as stamping and bending.
Resistant to corrosion in the atmosphere, if it is an industrial atmosphere or a heavily polluted area, it needs to be cleaned in time to avoid corrosion. Suitable for food processing, storage and transportation. Good processing performance and weldability. Plate heat exchanger, bellows, household products (1 type, 2 types of tableware, cabinets, indoor plumbing, water heaters, boilers, bathtubs), automotive parts (windshield wipers, mufflers, molded products), medical equipment, building materials, chemical, food industry, agriculture, ship parts, agriculture, marine parts and so on.
Chemical composition
| C | Si | Mn | P | S | Cr | Cu | N |
| ≤0.025 | ≤1 | ≤1 | ≤0.04 | ≤0.03 | 16.0-20.0 | 0.3-0.8 | ≤0.025 |
Physical Properties
| Ya(Mpa) | Ts(Mpa) | El(%) | Hv |
| ≥205 | ≥390 | ≥22 | ≤200 |
Specifications
| SUS | THICKNESS | WIDTH | (MM) |
| 200 | CUTTING EDGE | ROLLING EDGE | |
| 300 | 0.03--1.5MM | 3--1230 | ≤1250 |
| 400 |
Application
| NO. | Application | Application Components | Thickness(mm) | Grade |
| 1 | Aerospace Industry | Heat insulation piece | 0.05--0.13 | 321 |
| Helicopter connector | 0.1--0.4 | 301 | ||
| Lining | 0.05--0.08 | 304 | ||
| Honeycomb structure | 0.05-0.13 | 347 | ||
| 2 | IT Industry | Spring | 0.05-0.13 |
304 |
| Decoder | 0.05-0.13 | 304 | ||
| Terminal Spring | 0.08-0.2 | 301 | ||
| Etching element | 0.05-0.25 | 304 | ||
| Button shrapnel | 0.05-0.13 | 301 | ||
| Batterty contact sheet | 0.05-0.13 | 304 | ||
| Hard disk switch | 0.05-0.2 | 301 | ||
| 3 | Mobile phone industry | Outside decorative componets | 0.4-2.0 | 304 |
| Internal structural components | 0.05-0.5 | 301,304.BN SERIES | ||
| 4 | Chemical etching industry | All kinds of precision component | 0.1-0.2 | All kinds of Stainless Steel |
| 5 | Heat exchanger | Exhaust gas recycle | / |
304,309,321 |
