Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | China |
| Brand Name: | YUHONG |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015 |
| Model Number: | ASTM A182 F60, UNS S32205 |
| Minimum Order Quantity: | 1 Piece |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Ply-wooden Case, Pallet |
| Delivery Time: | 5 - 50 Work Days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | According To Clients' Request |
| Specification: | ASTM A182, ASME SA182 | Material Grade: | F60, UNS S32205, 1.4462 |
|---|---|---|---|
| Product Name: | Duplex Stainless Steel Olets | Size: | Customized Size, 1/8"-48" |
| Class: | 2000LBS, 3000LBS, 6000LBS, 9000LBS | Technics: | Forged |
| Standard: | MSS SP-97 | Applications: | Petroleum, Chemical, Connection, Beer, Etc. |
| High Light: | MSS SP-97 Steel Fitting,UNS S32205 Duplex Stainless Steel Weldolets,Duplex Stainless Steel Sockolet |
||

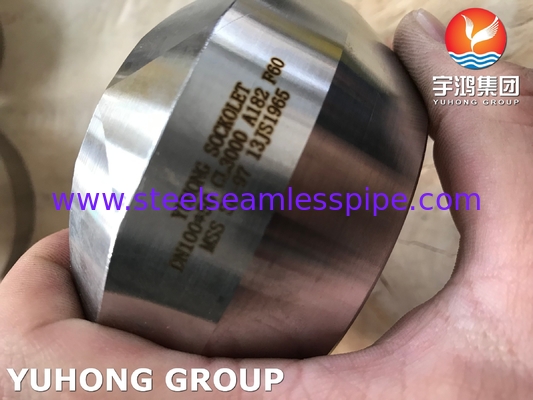

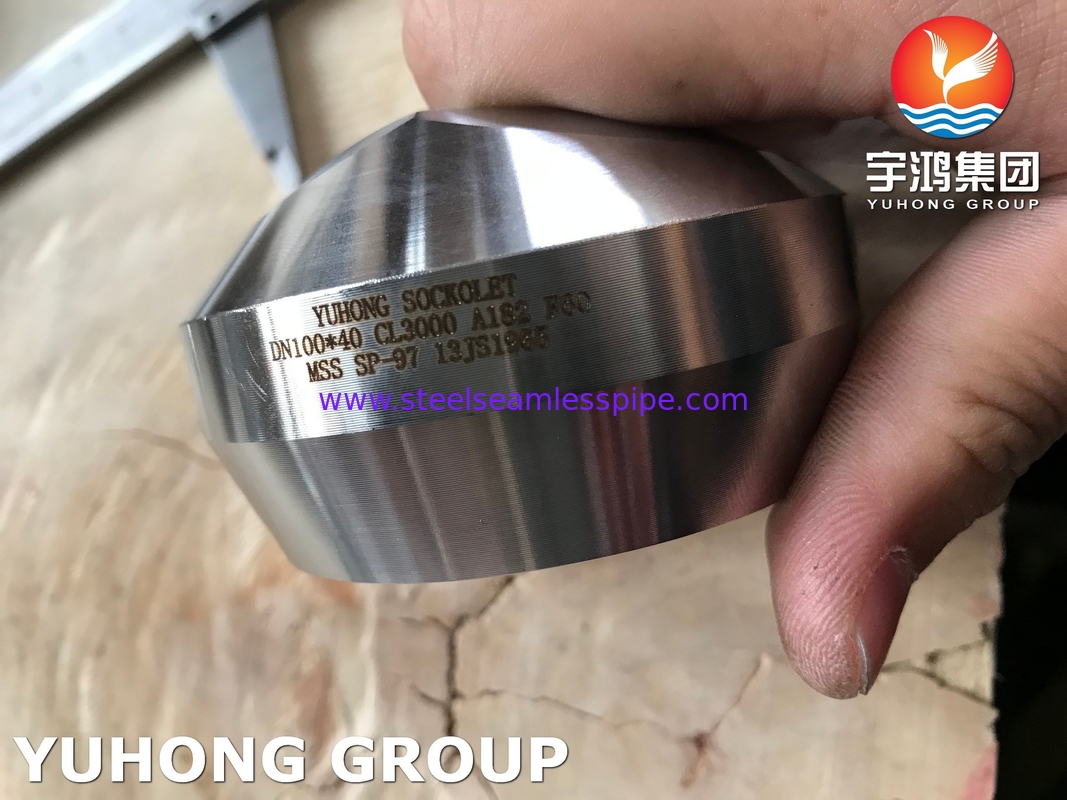

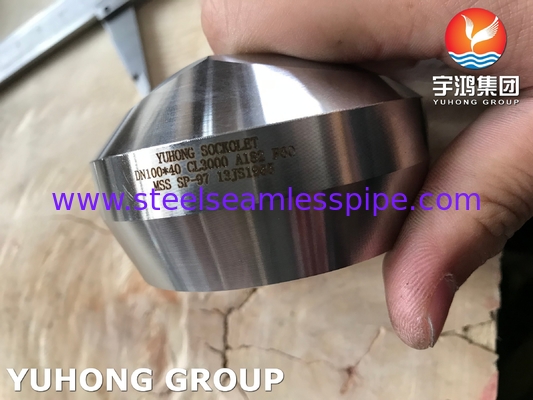

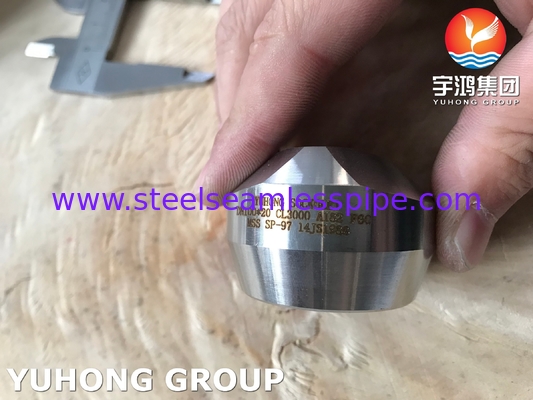

ASTM A182 F60, UNS S32205 Duplex Stainless Steel Sockolets Weldolets Class3000 MSS SP-97
UNS S32205 is a duplex , ferritic, austenitic alloyed stainless steel with 22% chromium, 3% molybdenum, and 5%-6% nickel. It is the most widely used grade of duplex stainless steel.
ASTM A182 F60 Duplex Stainless Steel Forged Olets are used in various industrial applications requiring high strength and corrosion resistance. These olets are particularly well-suited for use in chemical, petrochemical, oil and gas industries and applications involving seawater exposure. They can also be used to create strong and durable connections in pipeline systems.

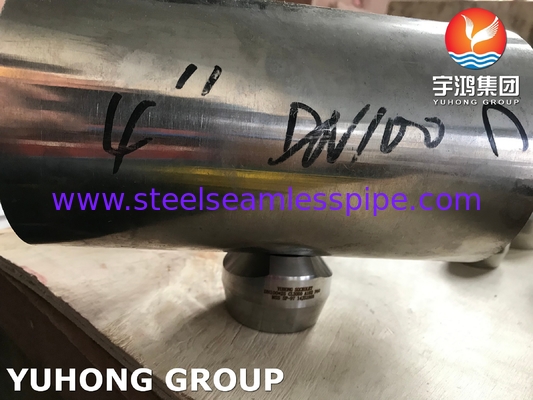

Olets are known as branch connection forged fittings which are used to provide an outlet from a larger pipe to a smaller pipe. Sockolet is an economical socket weld branch connection, which can reduce stress concentrations.
Available Materials for Weldolet:
Stainless Steel:
ASTM A182 F304/304L, F304H, F316/316L, F310, F317, F321
Caron Steel:
ASTM A105, A350 LF2, LF3, A694 F52, F60, F65, F70
Alloy Steel:
ASTM A182 F1, F5, F9, F11, F12, F22, F91
Duplex Steel:
ASTM A182 F51, F53, F55, S 31803, S 32205, S 32550, S 32750, S 32760
Equivalent Grades:
| Standard | F60 |
| UNS | S32205 |
| WERKSTOFF NR. | 1.4462 |
Specifications:
| Size | 1/2" To 24" |
| Class | 3000 LBS, 6000 LBS, 9000 LBS |
| Materials | Stainless Steel ASTM A182 F304, 304H, 309, 310, 316, 316L, 317L, 321, 347, 904L Duplex Steel ASTM A182 F44, F45, F51, F53, F55, F60, F61 Alloy Steel ASTM A182 F1, F5, F9, F11, F22, F91 Carbon Steel ASTMA 105, A694 F42, F46, F52, F56, F60, F65, F70 Low Temperature Carbon Steel ASTM A350 LF3, A350 LF2 |
| Value Added Service | Hot Dip Galvanizing Electro polish |
Chemical Composition, %:
| C | ≤0.030 |
| Mn | ≤2.00 |
| P | ≤0.030 |
| S | ≤0.020 |
| Si | ≤1.00 |
| Ni | 4.5–6.5 |
| Cr | 22.0–23.0 |
| Mo | 3.0–3.5 |
| N | 0.14–0.20 |
Mechanical Properties:
| Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | |
| Rockwell B (HR B) max | Brinell (HB) max | |||
| 621 | 448 | 25 | 31 | 293 |
Applications:
Pharmaceutical
Chemical Industries
Food & Dairy Plants
Nuclear Power Plants
Petrochemical Industries
Oil & Gas Exploration
Shipbuilding Processing
