Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | China |
| Brand Name: | YUHONG |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015 |
| Model Number: | GBT-15062 |
| Minimum Order Quantity: | 500KGS |
|---|---|
| Price: | NEGOTIABLE |
| Packaging Details: | Ply-wooden Case /Iron Case/ Bundle with plastic Cap |
| Delivery Time: | 10-90 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | According To Client's Request |
| Customized Support: | OEM | Grades: | GH3030 |
|---|---|---|---|
| Prodcut: | Steel Pipe Tube | Size: | 8"~32 |
| Standard: | Pipe According To ASTM A312,JIS G 3459 | Length: | 6000MM |
| High Light: | Nickel Alloy Steel Pipe ASTM A31,GH3030 Nickel Alloy Steel Pipe,Industrial Nickel Alloy Pipe |
||

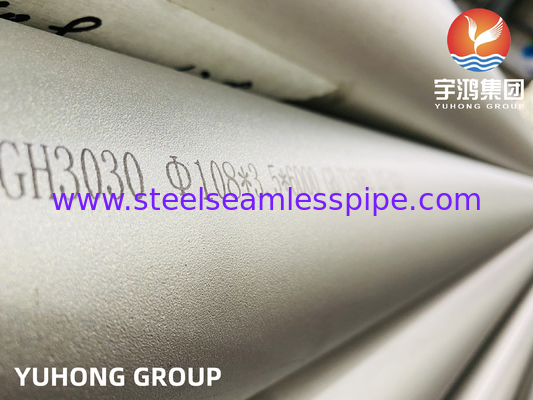

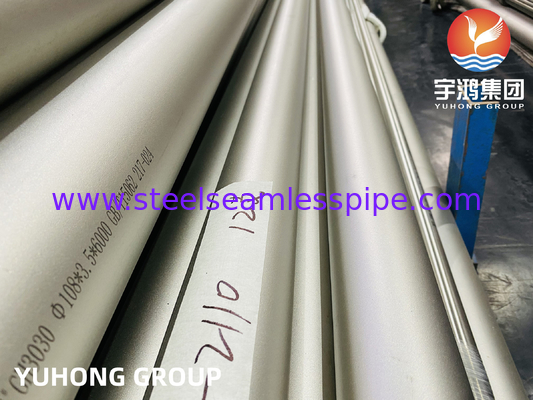

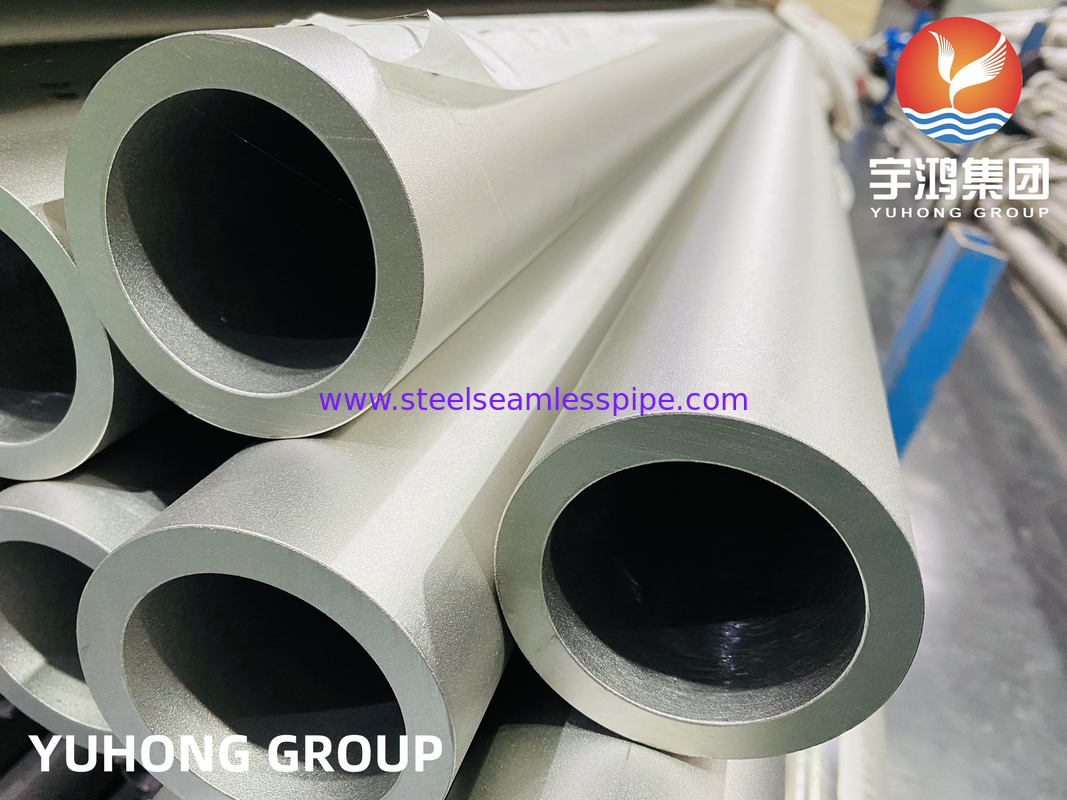

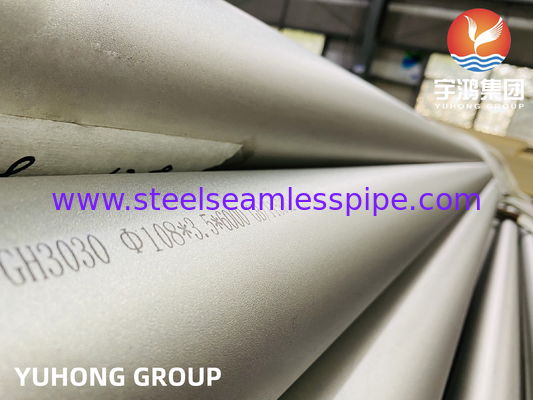

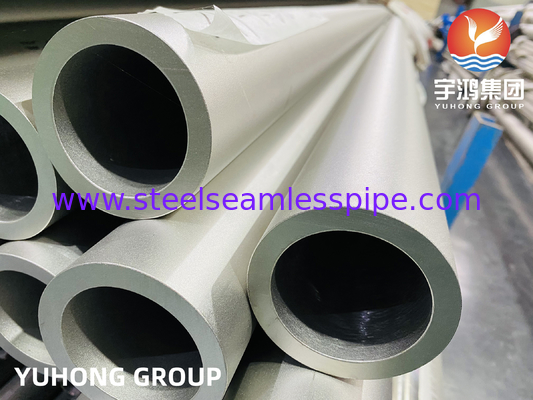

GH3030 alloy material
GH3030 alloy material is a Ni-Cr-based solid solution strengthened and deformed high-temperature alloy with a service temperature below 800°C. The alloy has good thermal strength, high plasticity, resistance to cold and thermal fatigue and oxidation properties, and has good cold stamping and welding process properties. The alloy becomes single-phase austenite after solid solution treatment, and its structure is stable during use. It is mainly used for turbine engine combustion chamber parts that work below 800°C, and for high-temperature parts below 1100°C that require oxidation resistance but bear small loads. The main products are cold-rolled plates, bars, rings, wires and pipes. GH3030 alloy materials have been used to manufacture aero-engine combustion chambers, afterburners and casing mounting edges. GH3030 alloy material has excellent welding performance and can be welded by argon arc welding, spot welding, seam welding or brazing. If the solid solution temperature is low during production, the old grain boundaries formed by residual carbides will be retained.
GH3030 is a high-temperature alloy and is a nickel-based high-temperature alloy. It is also known as Alloy 3030 or Inconel 3030. The alloy is primarily composed of nickel (approximately 55%), chromium (approximately 19%) and iron (approximately 18%), with smaller amounts of other elements such as cobalt, molybdenum and aluminum.
GH3030 has excellent high temperature strength, oxidation resistance and creep resistance, making it suitable for applications in extreme environments. It is particularly useful in industries such as aerospace, gas turbines, chemical processing and nuclear reactors. The alloy maintains its mechanical properties at high temperatures and shows good corrosion resistance in various corrosive media.
Chemical Composition:
| C | Cr | Ni | Ti | Al | Fe | Mn | Si | P | S |
| ≤0.12 | 19.0～22.0 | margin | 0.15～0.35 | ≤0.15 | ≤1.5 | ≤0.7 | ≤0.8 | ≤0.03 | ≤0.02 |
Thermal performance:
| θ/℃ | 100 | 200 | 300 | 400 | 500 | 600 | 700 | 800 | 900 |
| λ/(W/(m·C)) | 15.1 | 16.3 | 18 | 19.3 | 20.9 | 22.2 | 23.4 | 25.1 | 26.4 |
Specific Heat:
| θ/℃ | 150 | 200 | 300 | 400 | 500 | 600 |
| c/(J/(kg.K)) | 565.2 | 598.7 | 674.1 | 741.1 | 820.6 | 971.3 |
Process performance:
1. This alloy has good forgeability, with a forging heating temperature of 1180°C and a final forging temperature of 900°C.
2. The average grain size of the alloy is closely related to the deformation degree and final forging temperature of the forging.
3. After heat treatment, the oxide scale on the surface of the parts can be removed by sandblasting or pickling.
G3030 application:
G3030 alloy has been tested on aircraft engines for a long time and is mainly used for components such as combustion chambers and afterburners, as well as the mounting edges of the casing.
GH3030 product specifications and delivery status: Product form: GH3030 seamless pipe, GH3030 plate, GH3030 round steel, GH3030 forgings, G3030 flange, G3030 forged ring, etc.
