Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | CHINA |
| Brand Name: | YUHONG |
| Certification: | ISO 9001-2015, ABS, GL, DNV, NK, GOST9941-81, CCS |
| Model Number: | ASME SA210 |
| Minimum Order Quantity: | 100PC |
|---|---|
| Price: | 1-100000 USD |
| Packaging Details: | Ply-wooden + Iron Case |
| Delivery Time: | 45 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1000 tons/month |
| Product: | Fin Tube | Type: | Embedded G-Type |
|---|---|---|---|
| Standard / Material: | ASME SA210 / A1 | Tube Material: | Carbon Steel |
| Use: | Air Cooler, Fluid Cooling, Fire Furnace, Etc | Packing: | Ply-wooden Case /Iron Case |
| High Light: | Embedded Finned Tube,Embedded G-Type Fin Tube,A1 Carbon Steel Fin Tube |
||

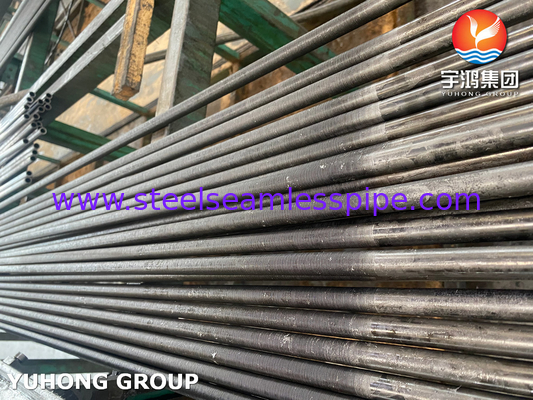

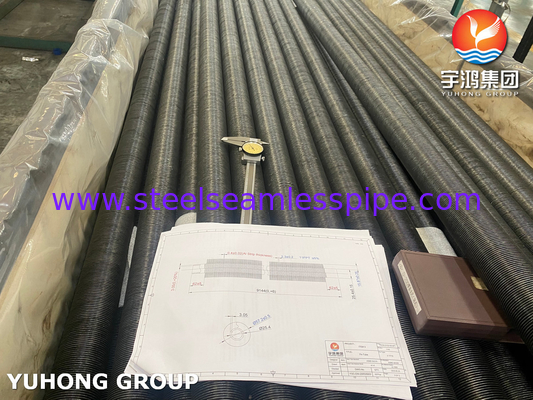

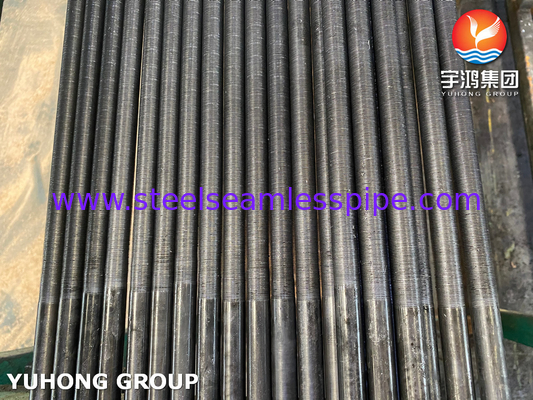

ASME SA210 Carbon Steel Embedded G-Type Fin Tube for Aire Acondicionado
Fin tubes are used in many different industries and we offer various types of fin tubes, we handle kinds of projects, such as heat exchanger / boiler projects, marine projects,air cooler projects, fire furnace / steam furnace, oil & gas projects etc.
Detailes Of ASME SA210
ASME SA210 This specification covers minimum-wall-thickness, seamless medium-carbon steel, boiler tubes and boiler flues, including safe ends, arch and stay tubes, and superheater tubes.
Chemical Composition (%)
| C | Mn | S | P | Si |
| 0.27 max | 0.93 max | 0.035 max | 0.035 max | 0.1 min |
Mechanical Properties
| Grade | Tensile Strength,min | Yield Strength (0.2%Offset,min) | Elongation | Rockwell Hardness |
| A1 | 60 ksi [415 MPa] | 37 ksi [255 MPa ] | 30% | / |
Features Of G-Type Finned Tube
Low maintenance
Compact design
Easy installation
High-performance
Less space required
Optimized surface
Increased reliability
Finest technology used
Less energy consumption
High mechanical resistance
Average corrosion protection
Application
Driers
Steam Coils / Steam Condensers
Finned Tube Heat Exchangers
Waste Heat Recovery
Heat Pipe Technology
Air Coolers / Oil Coolers / Hydrogen Coolers / Generator Coolers
1.Number of Pieces.
2.Base Tube: Diameter, thickness, length and material specification.
3.Fins: material specification, type (solid or serrated), height, thickness, spacing, finned length and unfinned sections. Weld prep details if required.
4.Delivery period required.
