Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | CHINA |
| Brand Name: | YUHONG |
| Certification: | ISO9001-2015, API 5L, API 5CT |
| Model Number: | ASTM B444 |
| Minimum Order Quantity: | 1TON |
|---|---|
| Price: | 1-130000 USD |
| Packaging Details: | Ply-wooden case |
| Delivery Time: | 45 -60 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1000tons/month |
| Materialrd: | Nickel Alloy Steel | Product: | Seamless Tube |
|---|---|---|---|
| Standard / Material: | ASTM B444 / NO6625 | Certificate: | ISO9001-2015, API 5L, API 5CT |
| Delivery Status: | Annealed, Normalized, Normalized+Tempered,etc. | Related Testes: | Chemical Composition Test, Mechanical Properties Test(tensie, Yield, Elongation), Process Properties Test(latting,faring.bending, Hardness, Impact, Etc.), Appearance And Size Test, Non-destructive Inspection Test, Hydrostastic Test. |
| Packing Details: | Ply-wooden Case | Use: | Heat Exchanger / Boiler / Furnase, Etc |
| High Light: | B444 Seamless U Bend Tubes,Calderas Seamless U Bend Tubes,NO6625 Seamless U Bend Tubes |
||

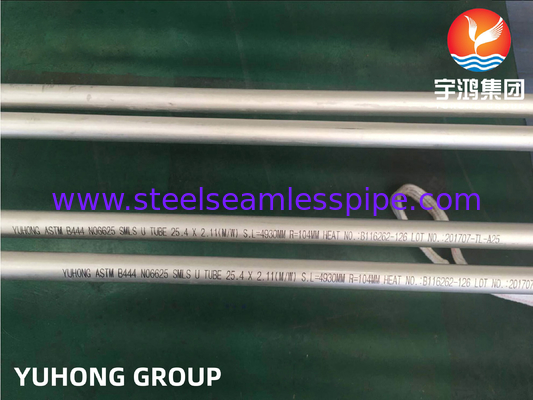

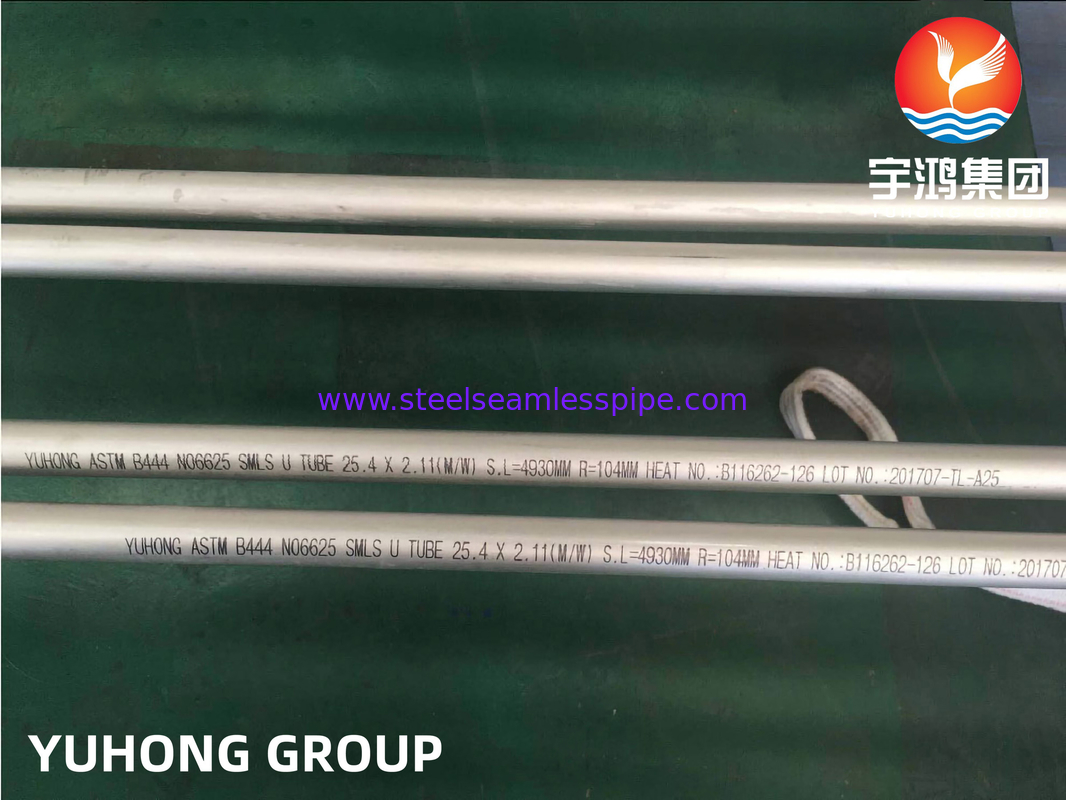

ASTM B444 UNS NO6625 Nickel Alloy Steel Seamless U Bend Tubes for Calderas
YuHong Group as one of the leading suppliers in China to supply B444 NO6625 seamless nickel alloy steel u bend tubes.And we have many experiences in exporting.

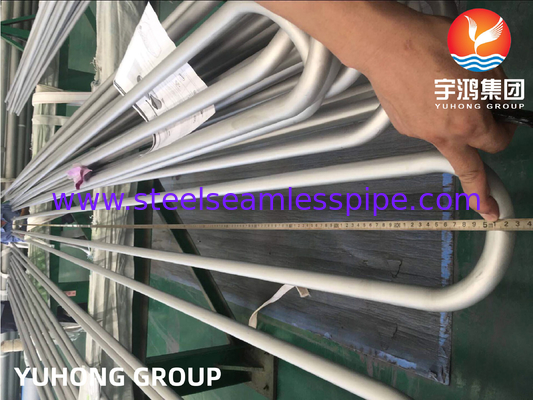

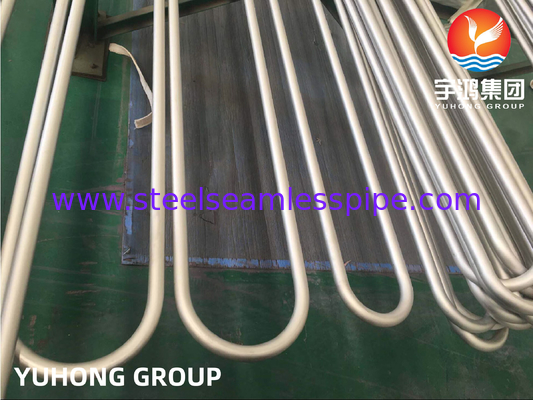

Each U bend tube of our range is rigorously quality checked by our team of professionals on every produce of production to provide customers with defect-free quality products. These U-shaped bends can be custom designed in various diameters according to customer requirements and drawings.
ASTM B444 This specification covers nickel-chromiummolybdenum-columbium alloys (UNS N06625 and UNS N06852) and nickel-chromium-molybdenum-silicon alloy (UNS N06219) in the form of cold-worked seamless pipe and tube.
Inconel 625 has excellent strength at temperatures up to 816C. At higher temperatures , its strength is generally lower than that of other solid solution strengthened alloys.
Inconel 625 has good oxidation resistance at temperatures up to 980℃C and showsgood resistance to aqueous corrosion, but is relatively moderate compared to other more capable corrosion resistant alloys.
UNS N06625 products are furnished in two grades of different heat-treated conditions:
Grade 1 (annealed)—Material is normally employed in service temperatures up to 1100°F (593°C).
Grade 2 (solution annealed)—Material is normally employed in service temperatures above 1100°F (593°C) when resistance to creep and rupture is required.
Application: Boilers, heat exchangers, super heaters, condensers, furnase, chemical process industry, sea water application, etc,
Chemical Composition
| C | Mn | P | SI | S | Cr | Cb+Ta |
| 0.1max | 0.5max | 0.015max | 0.5max | 0.015max | 20-23 | 3.15-4.15 |
| Co | Mo | Fe | Al | Ti | Ni | / |
| 1max | 8-10 | 5max | 0.4max | 0.4max | 58min | / |
Mechanical Property
| Grade | Tensile Strength(Mpa) min | Yield Strength (Mpa) min | Elongation (%) |
| Gr 1 (annealed)D | 827 | 414 | 30 min |
| Gr 2(solution annealed)E | 690 | 276 | 30 min |
D: Annealed at 1600°F (871°C) minimum.
E: Solution annealed at 2000°F (1093°C) minimum, with or without subsequent stabilization anneal at 1800°F (982°C) minimum to increase resistance to sensitization.
