Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | CHINA |
| Brand Name: | YUHONG |
| Certification: | ISO 9001-2015, ABS, GL, DNV, NK, PED, AD2000,CCS |
| Model Number: | EN1092-1 Type11 1.4404 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Ply-wooden Case / Pallets |
| Delivery Time: | 10-45 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 2000 pcs/month |
| Product: | Forged Welding Neck Flanges | Standard: | EN1092-1 Type11 |
|---|---|---|---|
| Material: | Stainless Steel | Grade: | 1.4404, F316L |
| Size: | 1/8"-24" | Pressure:: | #150 - #2500 (PN6-PN100) |
| Type Of Face: | Raised Face | Packing: | Ply-wooden Case / Pallets |
| High Light: | 1.4404 WN RF Flange,B16.5 WN RF Flange,Type11 WN RF Flange |
||

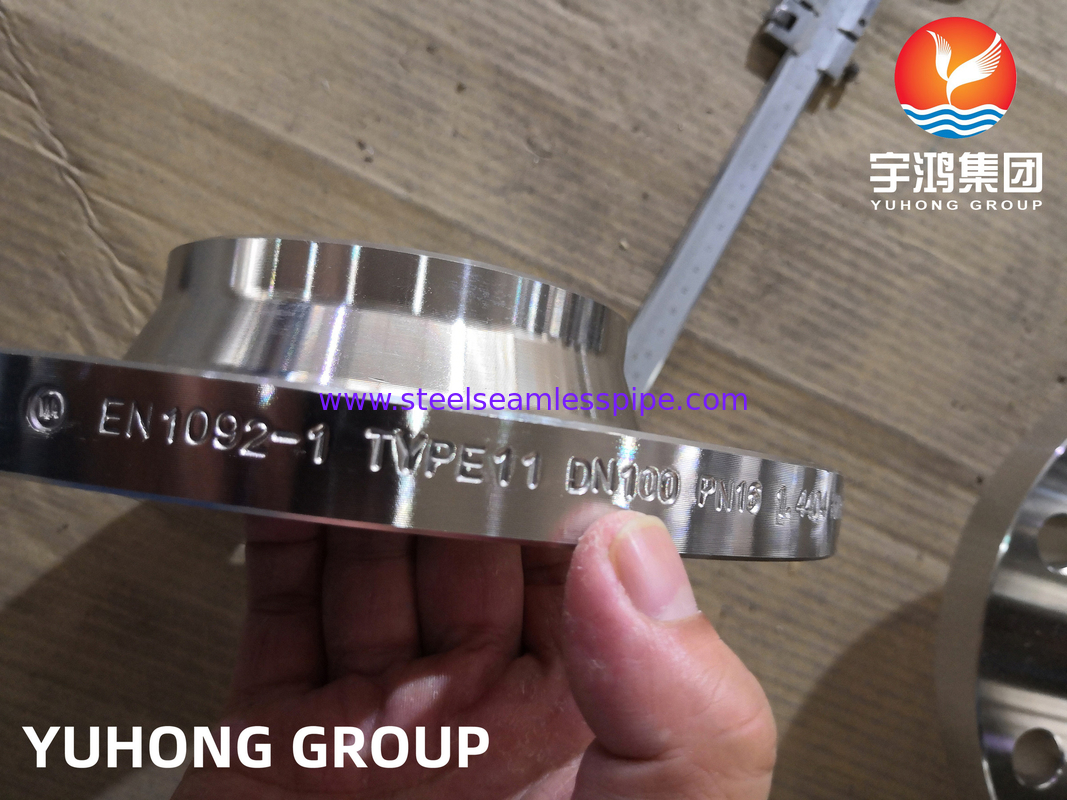

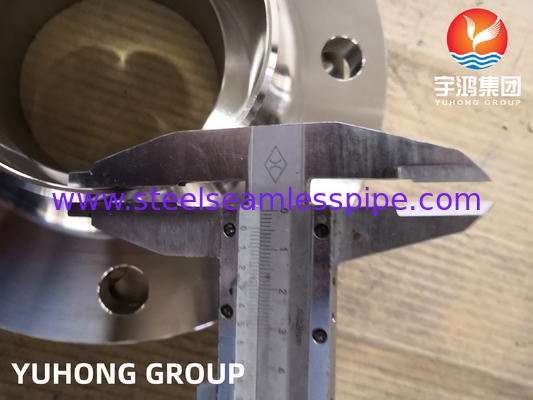

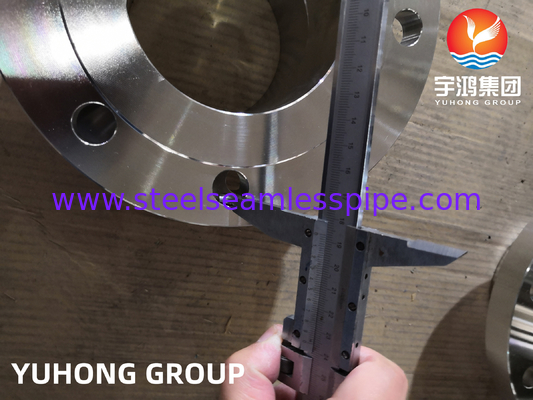

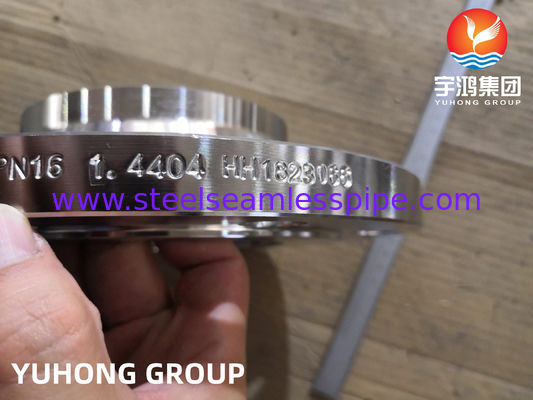

EN1092-1 Forged Stainless Steel WN RF Flange Type11 1.4404 B16.5
EN1092-1 Type11 1.4404 Stainless Steel is a European standard that is made from stainless steel grade 1.4404 (also known as stainless steel 316L). 1.4404/F316L stainless steel provides good corrosion resistance, making it suitable for applications where there may be exposure to corrosive substances.Yuhong Group offer EN1092-1 Type11 1.4404 flanges: Threaded Flange,Slip On Flange,Socket Weld Flange,Weld Neck Flange,LAP Joint Flange.
The Type11 refers to the flange design, which is a flat face flange with a full face gasket. This type of flange is commonly used in industries such as oil and gas, chemical, and petrochemical for joining pipes or other equipment together.
EN1092-1 Flange Types
| EN 1092-1: flange types | |
| TYPE | Full description |
| EN 1092-1 TYPE 01 | Plate flange for welding |
| EN 1092-1 TYPE 02 | Loose plate flange with weld-on plate collar TYPE 32 |
| EN 1092-1 TYPE 02 | Loose plate flange with weld-on plate collar TYPE 33 |
| EN 1092-1 TYPE 04 | Loose plate flange with weld-neck collar TYPE 34 |
| EN 1092-1 TYPE 05 | Blind flange or blank flange |
| EN 1092-1 TYPE 11 | Weld-neck flange |
| EN 1092-1 TYPE 12 | Hubbed slip-on flange for welding |
| EN 1092-1 TYPE 13 | Hubbed threaded flange |
| EN 1092-1 TYPE 21 | LWN – long welding-neck or integral flange |
Chemical Composition % Max
18 chromium, 8 nickel, modified with molybdenum, low carbon 316LG
| C | Mn | Si | P | S | Cr | Mo | Ni |
| 0.03 | 2 | 1 | 0.045 | 0.03 | 16-18 | 2-3 | 11-14 |
Mechanical Properties
| Tensile Strength Min | Yield Strength (0.2%Offset) Min | Elongation Min | Reduction of Area Min |
| 70ksi (485MPa) | 25ksi (170MPa) | 30 % | 50 % |
Heat Treating Requirements
| Grade | Heat Treat Type | Temperature | Quenching Cool Below | Quenching Cool Below |
| F316L | Solution Treat and Quench | 1900℃ min | Liquid | 260℃ |
