Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | China |
| Brand Name: | YUHONG |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015 |
| Model Number: | ASTM A234 WP22 CL1, CL3 |
| Minimum Order Quantity: | 1 Piece |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Ply-wooden Case, Pallet |
| Delivery Time: | 15-35 Days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | According To Customers' Request |
| Standard: | ASTM A234, ASME SA234 | Material Grades: | WP22 |
|---|---|---|---|
| Class: | CL1, CL3 | Technics: | Butt Weld |
| Type: | Seamless, Welded | Radius: | Long Radius, Short Radius |
| Degree: | 45Deg, 90Deg, 180Deg | Sizes: | 1/8" - 48" |
| Wall Thickness: | SCH 5S - SCH XXS | Color: | Customized |
| Other Forming Types: | 45/90/180 Elbows, Caps, Concentric Reducers, Eccentric Reducers, Equal Tees, Reducing Tees | Applications: | Chemical,Food Processing,Oil And Gas, Petrochemical,Etc. |
| High Light: | Steel Elbow B16.9,90 Degree LR Steel Elbow B16.9,Fired Heater Steel Elbow B16.9 |
||

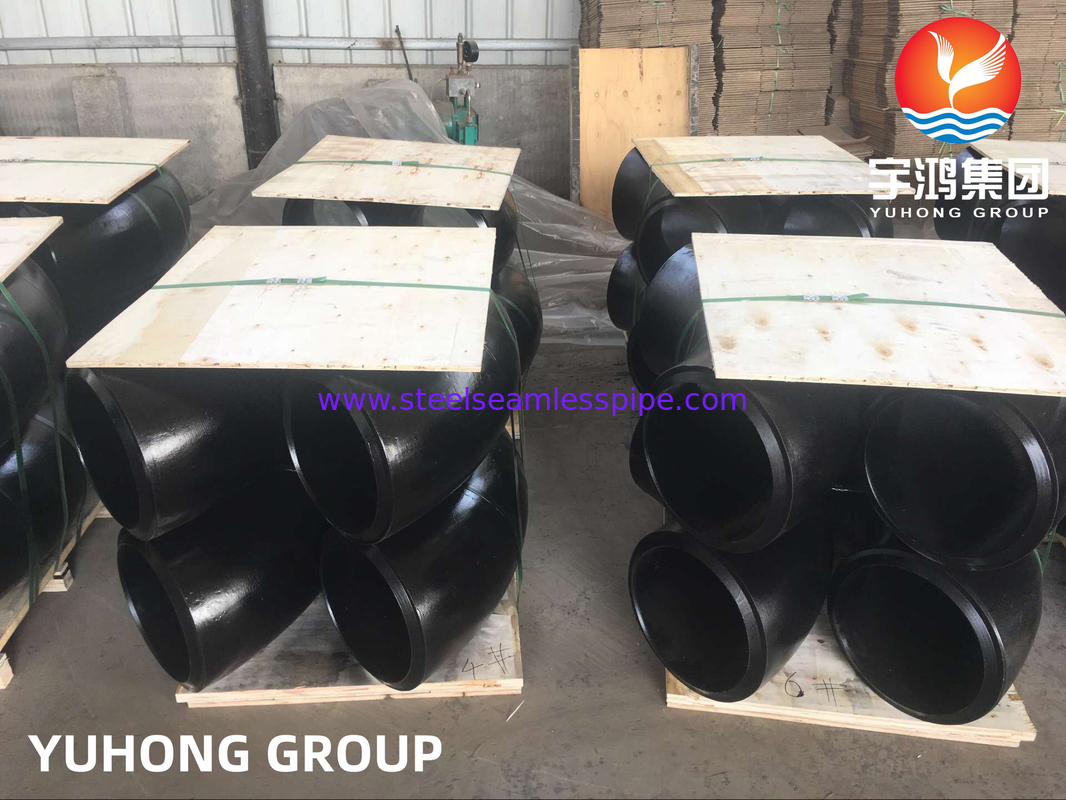

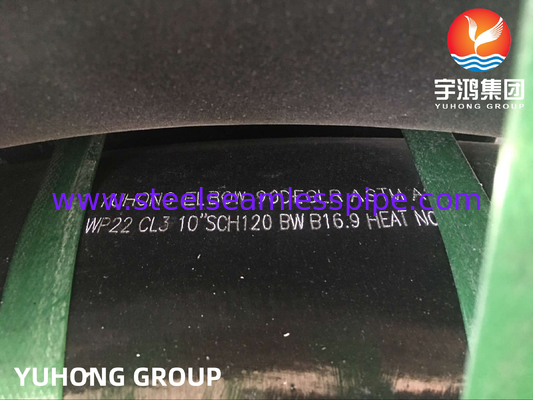

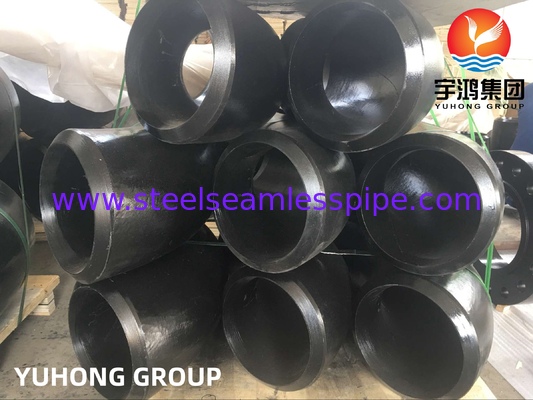

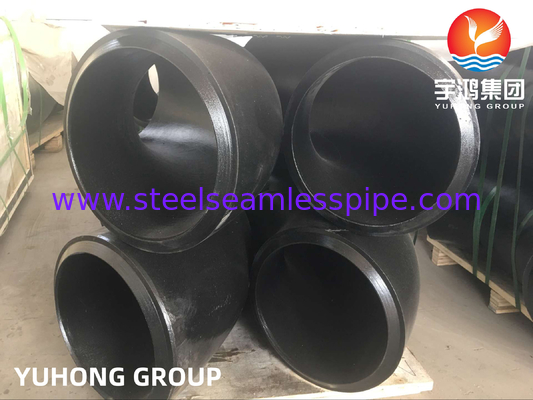

ASTM A234 WP22 CL3 Buttweld 90 Degree LR Alloy Steel Elbow B16.9 For Fired Heater
ASTM A234 WP22 Alloy Steel Elbows are commonly used in piping systems for high-temperature and high-pressure applications, particularly in the oil and gas, chemical processing, petroleum and power generation industries. ASTM A234 WP22 CL1 / CL3 Buttweld Alloy Steel Elbows consist of low-alloy steel with the inclusion of chromium and molybdenum. This combination of elements provide excellent resistance to corrosion, high-temperature and high-pressure environments. ASTM A234 WP22 Alloy Steel Elbows have high tensile strength, good impact resistance, and excellent ductility, which make them suitable for being used in applications where high reliability is required. Our Group supplies alloy steel buttweld fittings for many years, including 45/90/180 degree elbows, equal tees, reducing tees, concentric reducers, eccentric reducers and so on.
Characteristics:
1. High strength: ASTM A234 WP22 alloy steel has a high tensile strength and yield strength, making it ideal for use in high pressure and high temperature applications.
2. Corrosion resistance: Alloy steel fittings made from ASTM A234 WP22 have excellent corrosion resistance, making them suitable for use in harsh environments.
3. Heat resistance: ASTM A234 WP22 alloy steel fittings have excellent heat resistance, allowing them to withstand high temperatures without losing their mechanical properties.
4. Excellent weldability: ASTM A234 WP22 alloy steel fittings can be easily welded using conventional welding techniques, ensuring a strong and durable bond.
5. Durability: Alloy steel fittings made from ASTM A234 WP22 are highly durable and can withstand heavy loads and extreme conditions without deforming or failing.
6. Versatility: ASTM A234 WP22 alloy steel fittings are available in a wide range of sizes, shapes, and configurations, making them suitable for a variety of applications in different industries.
7. Cost-effective: Despite their high strength and durability, ASTM A234 WP22 alloy steel fittings are relatively affordable compared to other materials, making them a cost-effective choice for many applications.
Material Types of Elbows:
Stainless Steel Elbow: ASTM A403 WP304, 304H, 309, 310, 316, 316L, 317L, 321, 347, 904L
Carbon Steel Elbow: ASTM A 234 WPB, WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70.
Low Temperature Carbon Steel Elbow: ASTM A420 WPL3, A420 WPL6
Alloy Steel Elbow: ASTM A234 WP1, WP5, WP9, WP11, WP12, WP22, WP91
Duplex Steel Elbow: ASTM A815, WPS31803, S32205, S32750
Nickel Alloy Elbow: ASTM B336 UNS N02200 (NICKEL 200), UNS N02201 (NICKEL 201), UNS N04400 (MONEL 400), UNS N08020 (ALLOY 20), UNS N08825 (INCONEL 825), UNS N06600 (INCONEL 600 ), UNS N06601 (INCONEL 601), UNS N06625 (INCONEL 625), UNS N10276 (HASTELLOY C276)
Chemical Composition:
| C | Mn | Si | S | P | Cr | Mo |
| 0.05-0.15 | 0.3-0.5 | 0.5 | ≤0.04 | ≤0.04 | 2-2.5 | 0.87-1.13 |
WP22 Mechanical Properties:
| Grade | Tensile Strength, (min.) ksi[MPa] | Yield Strength, (min.) ksi[MPa] | Elongation, (min.) % | |
| Longitudinal | Transverse | |||
| WP22 CL1 | 60[415] | 30[205] | 22 | 14 |
| WP22 CL3 | 75[520] | 45[310] | 22 | 14 |
Applications:
Chemical Equipment
Gas Processing
Pharmaceuticals
Petrochemicals
Seawater Equipment
Heat Exchangers
Offshore Oil Drilling Procedures
Condensers
Food Processing Industries
