Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | CHINA |
| Brand Name: | YUHONG |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015 |
| Model Number: | ASTM A182 F304 |
| Minimum Order Quantity: | 10PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | According to Client Requirements/ Ply-wooden Case/ Iron Case/ Bundle with plastic Cap |
| Delivery Time: | 10-35 DAYS |
| Payment Terms: | T/T, L/C |
| Supply Ability: | According to Client Requirements |
| Standard: | ASTM A182 | Material: | F304 |
|---|---|---|---|
| Name: | Forged Swage | OD: | 1/8'' To 4'' |
| Pressure: | 1500# To 9000# | Connection Type: | Threaded |
| High Light: | SP-95 Forged Swage Nipple,Pipe Diameter Increase Forged Swage Nipple,ASTM A182 F304 Forged Swage Nipple |
||

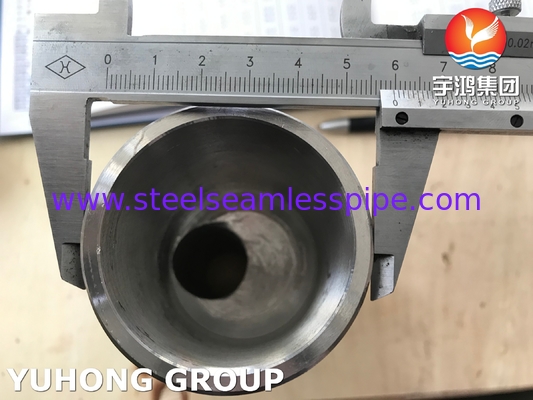

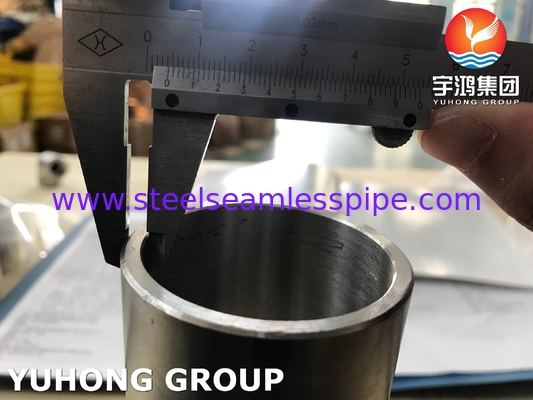

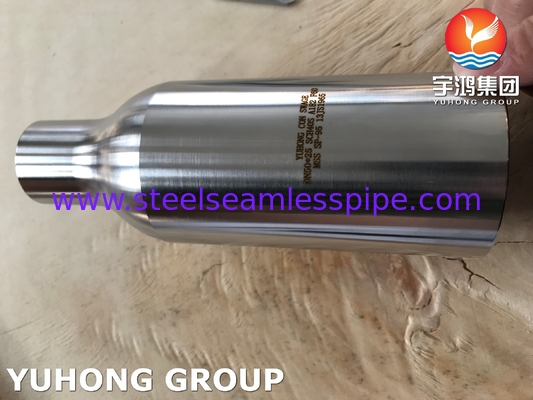

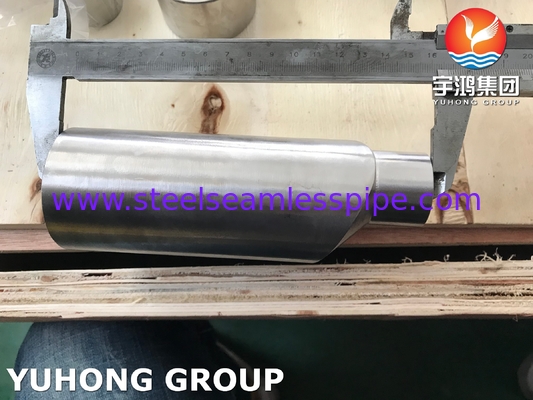

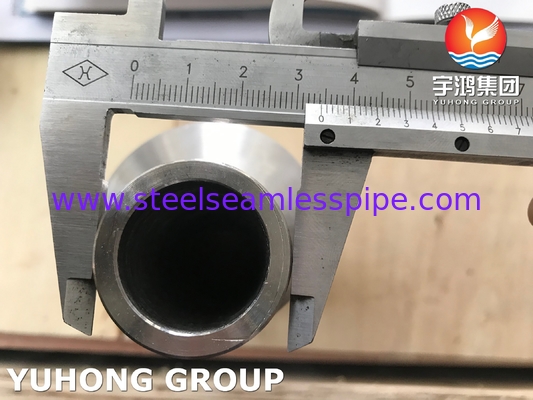

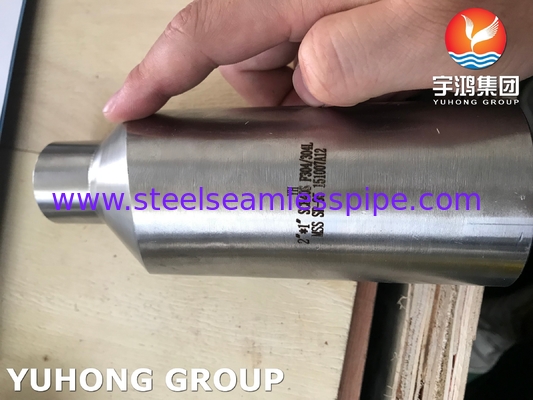

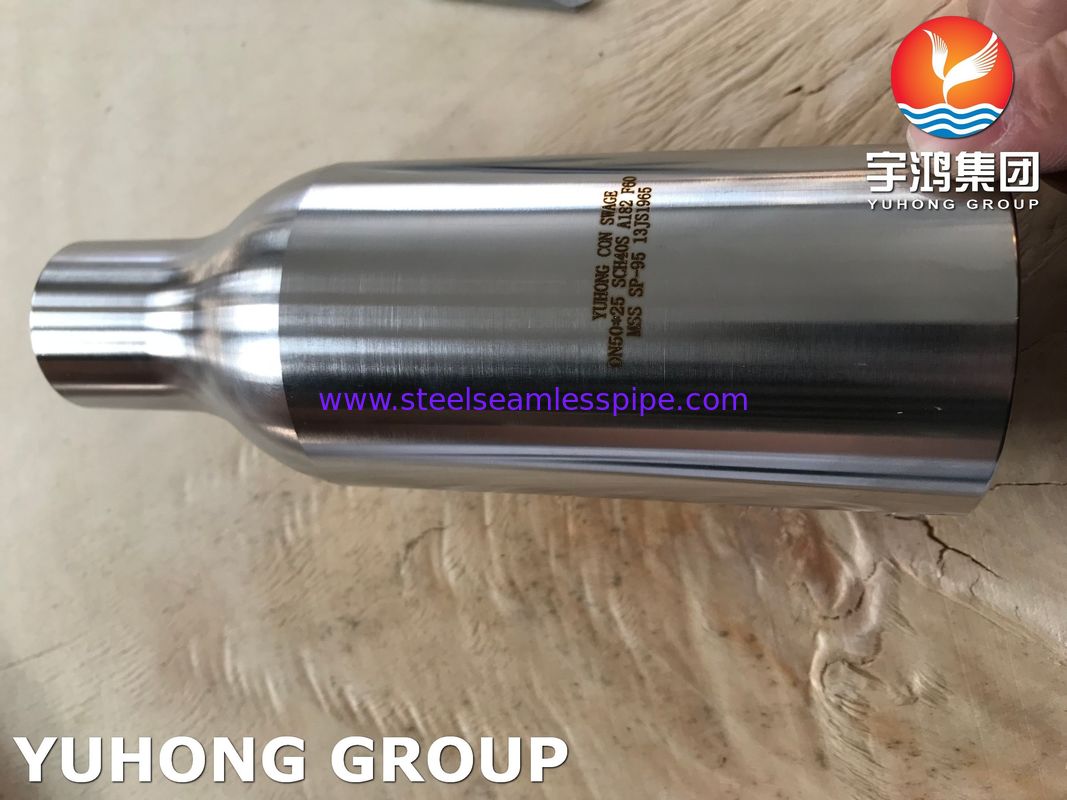

ASTM A182 F304 Forged Swage MSS SP-95
ASTM A182 F304 specification covers forged or rolled alloy and stainless steel pipe flanges, forged fittings, and valves and parts for high-temperature service. After hot working, forgings shall be cooled to a specific temperature prior to heat treatment, which shall be performed in accordance with certain requirements such as heat treatment type, austenitizing/solution temperature, cooling media, and quenching. The materials shall conform to the required chemical composition for carbon, manganese, phosphorus, silicon, nickel, chromium, molybdenum, columbium, titanium. The material shall conform to the requirements as to mechanical properties for the grade ordered such as tensile strength, yield strength, elongation, Brinell hardness. All H grades and grade F 63 shall be tested for average grain size.
ASTM A182 F304 is a standard specification for forged or rolled alloy and stainless steel pipe flanges, forged fittings, and valves. A forged swage is a type of fitting used to connect two pipes of different sizes. MSS SP-95 is a standard specification for swage nipples and bull plugs.
Therefore, an ASTM A182 F304 Forged Swage MSS SP-95 refers to a swage fitting made of stainless steel grade F304 that meets the specifications outlined in MSS SP-95. This type of fitting is commonly used in piping systems to reduce or increase the size of the pipe diameter.
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| SS 304 | 1.4301 | S30400 | SUS 304 | 304S31 | 08Х18Н10 | Z7CN18‐09 | X5CrNi18-10 |
| SS 304L | 1.4306 / 1.4307 | S30403 | SUS 304L | 3304S11 | 03Х18Н11 | Z3CN18‐10 | X2CrNi18-9 / X2CrNi19-11 |
| SS 304H | 1.4301 | S30409 | – | – | – | – | – |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | |
| 304 | min. max. | - 0.08 | - 2.0 | - 0.75 | - 0.045 | - 0.030 | 18.0 20.0 | - | 8.0 10.5 | - 0.10 |
| 304L | min. max. | - 0.030 | - 2.0 | - 0.75 | - 0.045 | - 0.030 | 18.0 20.0 | - | 8.0 12.0 | - 0.10 |
| 304H | min. max. | 0.04 0.10 | - 2.0 | - 0.75 | -0.045 | - 0.030 | 18.0 20.0 | - | 8.0 10.5 | - |
| Grade | UNS No | Old British | Euronorm | Swedish SS | Japanese JIS | ||
|---|---|---|---|---|---|---|---|
| BS | En | No | Name | ||||
| 304 | S30400 | 304S31 | 58E | 1.4301 | X5CrNi18-10 | 2332 | SUS 304 |
| 304L | S30403 | 304S11 | - | 1.4306 | X2CrNi19-11 | 2352 | SUS 304L |
| 304H | S30409 | 304S51 | - | 1.4948 | X6CrNi18-11 | - | - |
| These comparisons are approximate only. The list is intended as a comparison of functionally similar materials not as a schedule of contractual equivalents. If exact equivalents are needed original specifications must be consulted. | |||||||
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | |
| Rockwell B (HR B) max | Brinell (HB) max | ||||
| 304 | 515 | 205 | 40 | 92 | 201 |
| 304L | 485 | 170 | 40 | 92 | 201 |
| 304H | 515 | 205 | 40 | 92 | 201 |
| 304H also has a requirement for a grain size of ASTM No 7 or coarser. | |||||
| Grade | Density (kg/m3) | Elastic Modulus (GPa) | Mean Coefficient of Thermal Expansion (μm/m/°C) | Thermal Conductivity (W/m.K) | Specific Heat 0-100°C (J/kg.K) | Electrical Resistivity (nΩ.m) | |||
| 0-100°C | 0-315°C | 0-538°C | at 100°C | at 500°C | |||||
| 304/L/H | 8000 | 193 | 17.2 | 17.8 | 18.4 | 16.2 | 21.5 | 500 | 720 |
Application
We strictly inspect all accessories and Olets at every stage of the production process. We conduct quality inspection and testing on Olet from material procurement to product shipment. By testing Olets we ensure maximum functionality for our customers. Our Olet offers numerous features including longer service life, rust-resistant workability, rugged construction, dimensional accuracy, corrosion resistance, and more.
In addition to testing and maintaining the quality of ASTM A182 F304/304L thread outlets, we are also responsible for Olet's labeling, packaging and shipping. After our experts confirm the dimensional accuracy and superiority of the product, we send it for packaging. We use appropriate packaging materials to ensure no damage during shipping. With door-to-door service, we provide on-time delivery of orders.
We have a well-equipped manufacturing plant with modern machinery and are constantly updated with the latest technology. Apart from this advanced setup, our skilled professionals are working hard to cater to all the demands raised by the clients. We satisfy our clients' requirements by delivering exceptional quality within stipulated deadlines. We consider the needs of different industries and prepare quality product inventories. We can complete customers' urgent deliveries. With our experienced team, we are always happy to meet the diverse needs of our clients.
