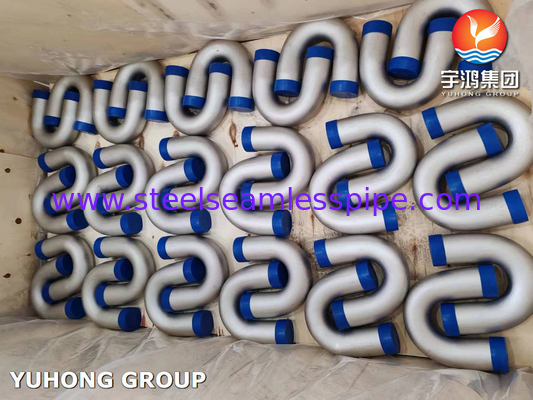

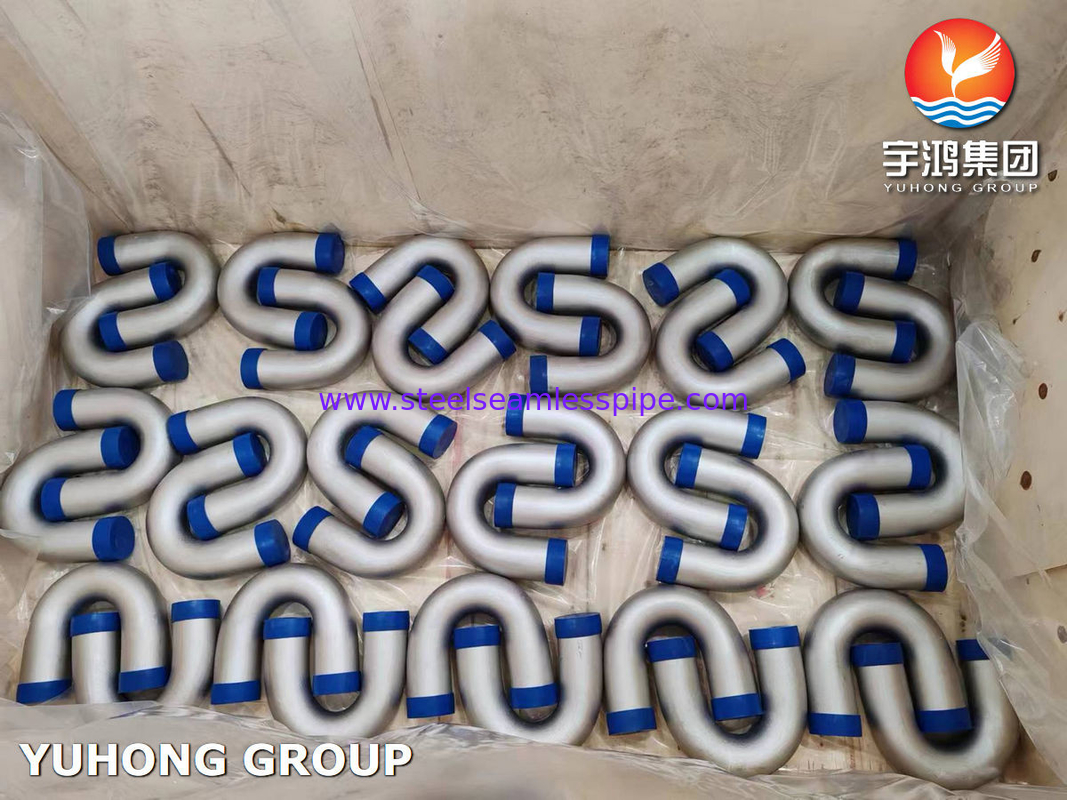

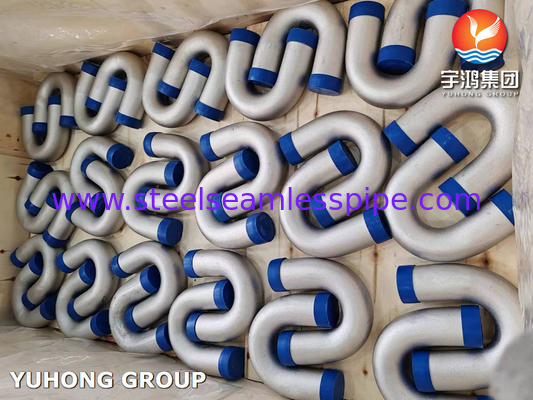

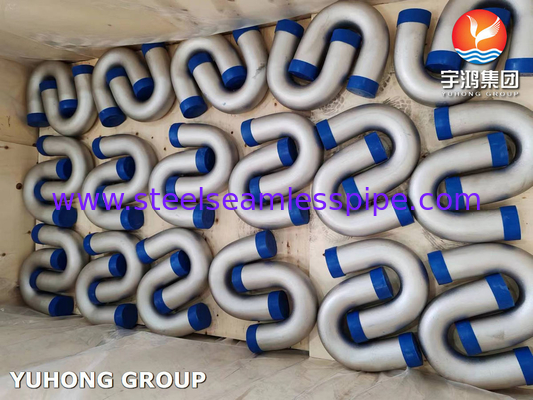

ASME SA213 TP316L S31603 Stainless Steel Seamless U Bend Heat Exchanger Tubes
YuHong Group as one of the leading suppliers in China to supply U bend tubes and has many experiences in exporting to 35 countries. U-shaped bends can be custom designed in various diameters according to customer requirements and drawings.
Each U bend tube of our range is rigorously quality checked by our team of professionals on every produce of production to provide customers with defect-free quality products.
ASME SA213 This specification covers seamless ferritic and austenitic steel boiler, superheater, and heat-exchanger tubes, designated Grades T5, TP304, TP316L, etc.
ASTM A213 TP316L is a low carbon variant of grade 316 stainless steel. TP316L stainless steel has a low carbon content and therefore has excellent corrosion resistance. It resists corrosion in a variety of environments, including harsh chemicals and chlorine-containing solutions.
In addition, TP316L can withstand high temperatures and is suitable for applications involving high temperatures such as heat exchangers, boilers and refineries. Besides, it has excellent durability and service life, enabling the pipe to withstand harsh conditions and be less susceptible to degradation over time. This ensures extended service life and reduced costs.
In short, ASTM A213 TP316L stainless steel seamless tubing is widely used in oil and gas, chemical processing, pharmaceutical, food processing and power generation industries. Its versatility makes it ideal for a variety of applications.
Applications
Heavy Industries
Furnaces Projects
Oil & Gas Industries
Petrochemicals Industries
Nuclear Power Generation
Heat transmission and pressure service
Heat Exchangers/Boilers/Condensers,etc
Chemical Composition % Max
Gr. | C | Mn | P | S | Si | Cr | Ni | Mo |
TP316L | 0.035 | 2 | 0.045 | 0.03 | 1 | 16-18 | 10-14 | 2-3 |
For small diameter or thin walls, or both, where many drawing passes are required, a carbon maximum of 0.040% is necessary in Grades TP304L, TP304LN, TP316L, and TP316LN.
Mechanical Property
Gr. | Tensile Strength min | Yield Strength min | Elongation (%) | Brinell/Vickers | Rockwell |
TP316L | 70ksi / 485MPa | 25ksi / 170MPa | 35 MIN | 192HBW/200HV | 90HRB |
Heat Treat Type | Austenitizing/Solutioning Temperature,min or range | Cooling Media |
Solution treatment | 1900°F[1040°C] | water or other rapid cool |
Tests
Corrosion Test
Chemical Analysis
Eddy Current Testing
Hydrostatic Testing
Air Under Pressure Test
Visual Inspection
Reverse-bend and Re. flat tests
Destructive / Mechanical Testing:Tensile | Hardness | Flattening | Flare | Flange, etc
Welcome to your inquiry to YUHONG Group!
We are glad to supply your needs whatever the sizes, shapes, dimensions you want for U tubes.
