Yuhong Holding Group Co.,LTD
Place of Origin: | China |
Brand Name: | YUHONG |
Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008 |
Model Number: | A179 , A192, A210 Gr.A1, C , ASTM A213 T11, T22, T5, T9 |
Minimum Order Quantity: | 1PC |
---|---|
Price: | negotiable |

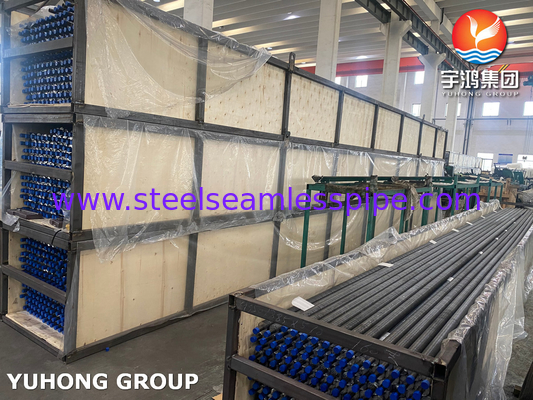

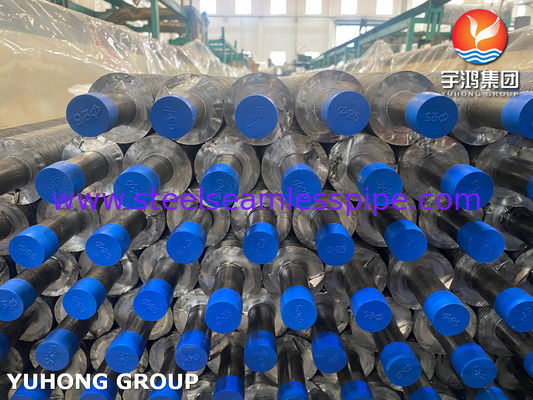

Packaging Details: | Ply-wooden Case /Iron Case/ Bundle with plastic Cap |
Delivery Time: | 10days-> |
Payment Terms: | T/T, L/C |
Supply Ability: | 1500 tons per month |
Standard: | ASTM A179, ASTM A192, ASTM A210, ASTM A213 | Grade: | GR.A , GR.C , A1, T11, T12, T22, T23, T5, T9, T91 |
---|---|---|---|
Fin Type: | Extruded, Embedded G, L, LL, KL | Packing: | Iron Case |
Fin Material: | Carbon Steel , Aluminum 1060 , 1100, 6061, 6063 | ||
High Light: | G Steel Seamless Tube,Air Cooler Steel Seamless Tube,Carbon Steel Seamless Tube |

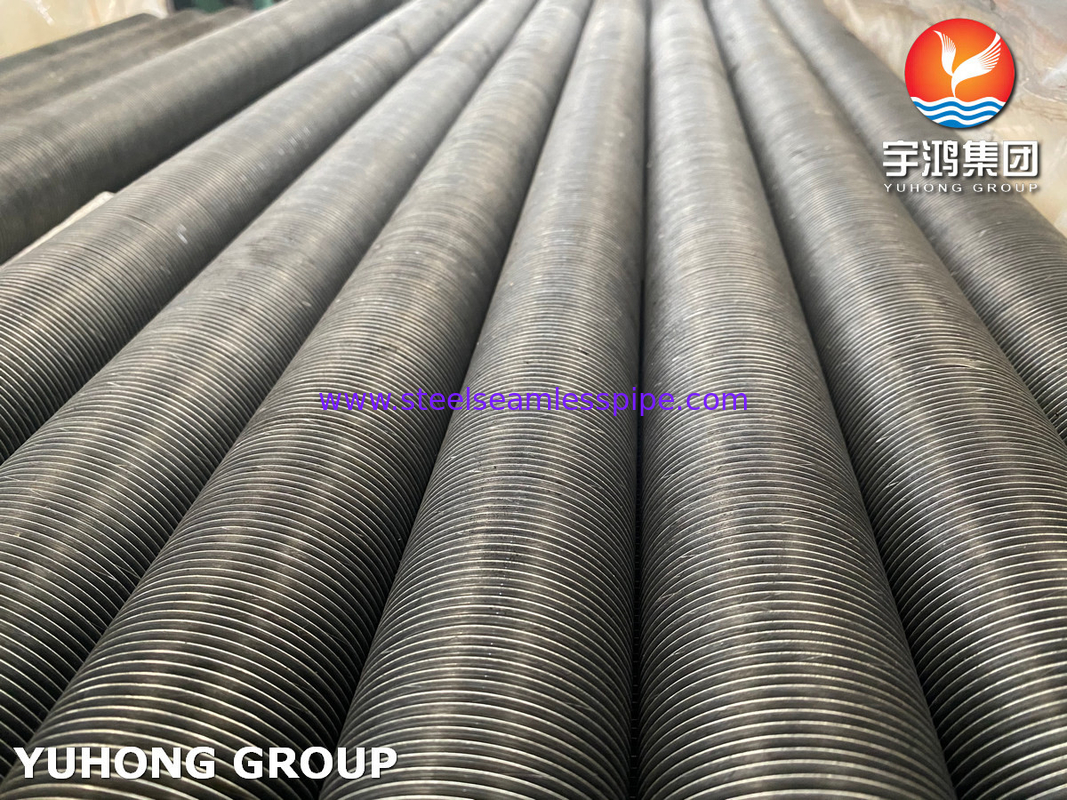

ASTM A179/ ASME SA179 Carbon Steel Seamless Tube with Aluminum 1060, Air Cooler, Extruded Fin Tube ,Embedded G Fin Tube
Fin tubes, like the A179 type, are commonly used in heat exchangers to improve heat transfer efficiency. When you mention the term "embedded," it typically refers to how the fin is attached to the base tube. This method helps enhance heat transfer between the fluids flowing inside the tube and the surrounding environment.
ASTM A192 / A192M : Seamless Carbon Steel Boiler Tubes for High-Pressure Service
ASTM A210 / A210M : Seamless Medium-Carbon Steel Boiler and Superheater Tubes
ASTM A179 / A179M : Seamless Cold-Drawn Low-Carbon Steel Heat-Exchanger and Condenser Tubes
Tube Type:Seamless (Cold Drawn)
Ends:Plain ends or bevel ends.
Surface protection:black painting,anti-rust oil or varnish.
Detail:
General extrusion production capacity | General specifications of Extruded Fin Tubes/Embedded |
Facility: 20 finning machines. |
Tube OD: 12mm min.~50.8mm(2'') max. |
Description:
Manufacturing Process
A smooth core tube is inserted into an aluminum sleeve and then the fins are extruded out of the aluminum sleeve.
Fins Type:
The fins are solid plain or serrated into 12,16 or 24 segments or as your design.
Unfinned Section
Both plain ends with appr. 10mm~50mm and gaps (Unfinned Section) in the middle.
Surface Coating
Both bare ends of Bimetallic Finned Tubes shall be Zinc or Aluminum that metallized applied by an electro spray arc system coating.
Accessories
Tube Support Box, Clamp or Spacer Box(Materials: Aluminum, Zinc or Stainless Steel).
Applications:
The common application fileds are:
1. Heat exchangers: Fin tubes are commonly used in heat exchangers, where they transfer heat between two fluids. They are used in a wide range of industries, including HVAC, refrigeration, power generation, and chemical processing.
2. Air conditioning systems: Fin tubes are used in air conditioning systems to transfer heat between the refrigerant and the air. They are commonly used in evaporator and condenser coils.
3. Boilers: Fin tubes are used in boilers to transfer heat from the combustion chamber to the water or steam in the tubes.
4. Oil coolers: Fin tubes are used in oil coolers to transfer heat from the oil to the surrounding air or water.
5. Radiators: Fin tubes are commonly used in automotive and industrial radiators to transfer heat from the engine coolant to the air.
Specifications:
Extruded Bimetallic Finned Tube is combined with two different materials.
Items | General Materials | Popular ASTM Materials |
Core Tube Material |
Any metallic materials, as carbon steel, low-alloy steel, |
1. Carbon Steel: A179, A192,SA210 Gr A1/C,A106 Gr B |
Fins Material |
1. Aluminum Alloy |
1. Aluminum(Alu.1100,Alu.1060,Alu.6063) |
All dimensions are in Inches and specification upon your requests. |
|||
Tube OD |
Fin Height |
Fin Thickness |
Fins per Pitch(Density) |
5/8 |
3/8,1/2 |
.015/.016/ .020 |
4, 5, 6, 7, 8, 9, 10, 11, 12 |
3/4 |
3/8,1/2,5/8 |
.015/.016/ .020 |
4, 5, 6, 7, 8, 9, 10, 11, 12 |
1 |
3/8,1/2,5/8 |
.015/.016/ .020 |
4, 5, 6, 7, 8, 9, 10, 11 |
1 1/4 |
3/8,1/2,5/8 |
.015/.016/ .020 |
4, 5, 6, 7, 8, 9, 10, |
1 1/2 |
3/8,1/2,5/8 |
.015/.016/ .020 |
4, 5, 6, 7, 8, 9, 10, 11 |
1 3/4 |
3/8,1/2,5/8 |
.015/.016/ .020 |
4, 5, 6, 7, 8, 9, 10 |
2 |
3/8,1/2,5/8 |
.015/.016/ .020 |
4, 5, 6, 7, 8, 9, 10 |
Please email us for more information. |
Advantage of fin tube:
1. Increased heat transfer area: Fin tubes have fins attached to the tube, which increases the surface area available for heat transfer. This increases the rate of heat transfer between the fluid in the tube and the surrounding environment.
2. Improved heat transfer efficiency: The increased surface area provided by the fins also improves the heat transfer efficiency of the tube. This means that heat can be exchanged more quickly and with greater efficiency than with a plain tube.
3. Reduced material cost: Fin tubes are a cost-effective solution for heat exchange applications because they require less material than other types of heat exchanger tubes. This can result in significant cost savings for large-scale applications.
4. Improved mechanical strength: The fins on the tube provide additional mechanical strength to the tube, making it more resistant to damage from external forces such as pressure and impact.
5. Customizable design: Fin tubes can be designed to fit specific requirements, such as optimal heat transfer coefficients, material compatibility, and structural durability. This allows for customization of the heat exchanger for specific applications.
Competitive Advantage:
