Yuhong Holding Group Co.,LTD
Place of Origin: | China |
Brand Name: | YUHONG |
Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015 |
Model Number: | ASME SA213 TP316L, 1.4404, UNS S31603 |
Minimum Order Quantity: | 100 KGS |
---|---|
Price: | Negotiable |
Packaging Details: | Ply-Wooden Case /Iron Case/ Bundle with Plastic Cap |
Delivery Time: | 5 - 60 Work Days |
Payment Terms: | T/T, L/C |
Supply Ability: | According to Clients' Requirement |
Standard: | ASTM A213, ASME SA213 | Material Grade: | TP316L, 1.4404, UNS S31603 |
---|---|---|---|
Type: | Seamless | Outer Diameter: | 12.7-38.1mm |
Wall Thickness: | 1.65-2.77mm | Length: | As Required |
Radius: | Customized | Ends: | Bevled End, Plain End, Thread End |
NDT: | ET,UT,PT,HT | Applications: | Heat Exchanger, Boiler, Petroleum, Condenser, Etc. |
High Light: | 1.4404 Stainless Steel Heat Exchanger Tubes,SA213 TP316L Heat Exchanger Tubes,SA213 TP316L Heat Exchanger Tubes |

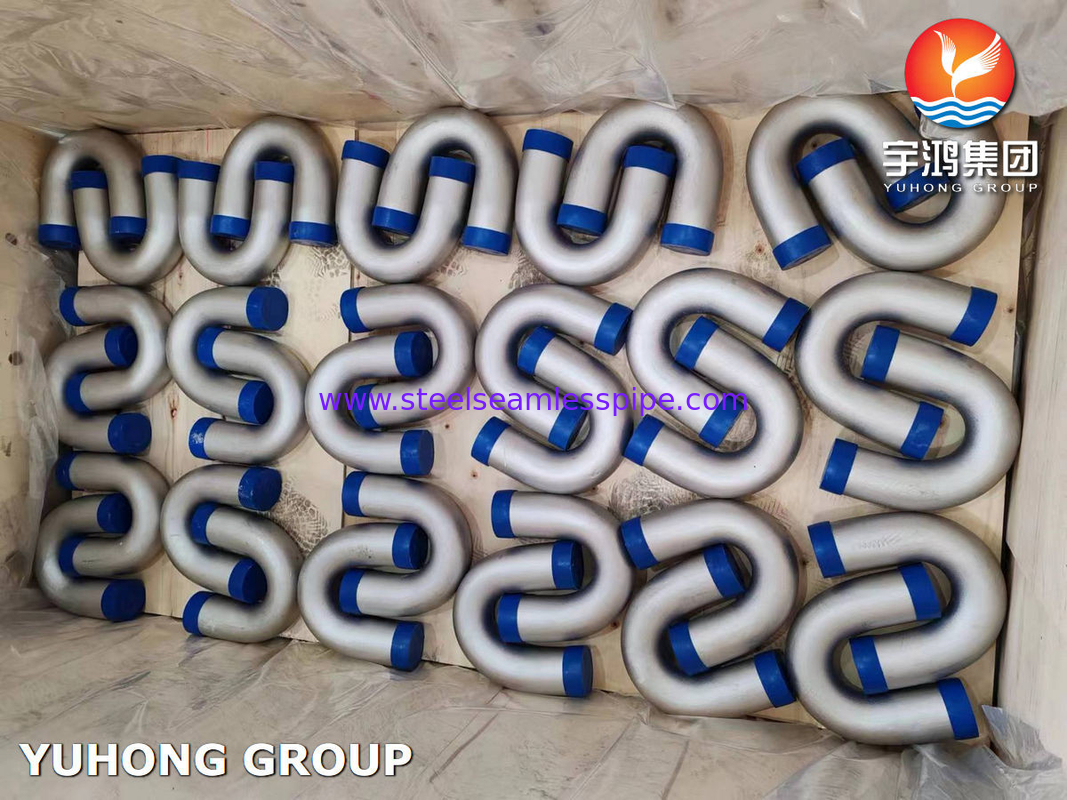

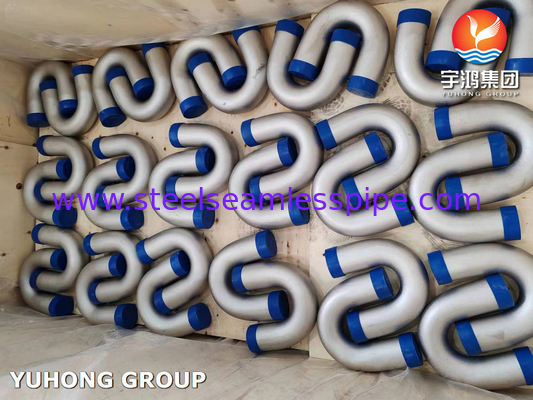

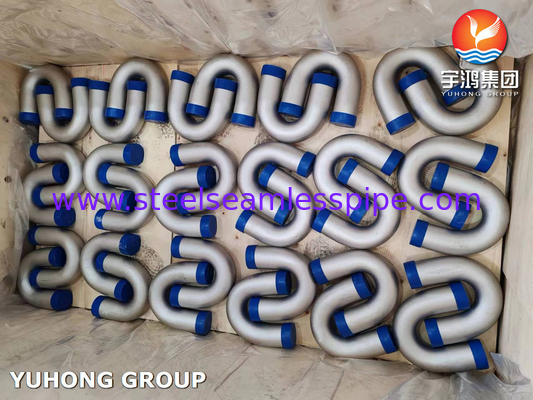

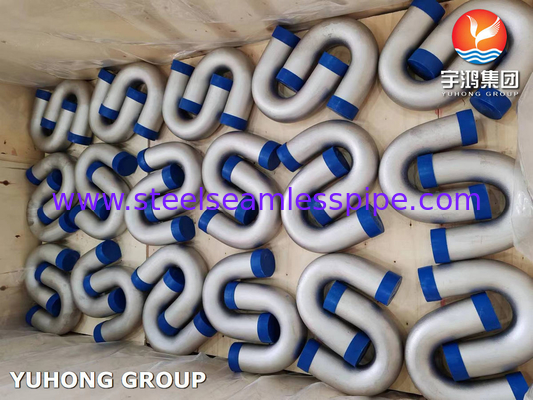

ASME SA213 TP316L, 1.4404 Stainless Steel U Bend Heat Exchanger Tubes For Fired Heaters
ASME SA213 TP316L is a specification for seamless ferritic and austenitic stainless steel boiler, superheater, and heat-exchanger tubes. TP316L is a low carbon version of TP316 stainless steel, which offers improved corrosion resistance and weldability. A U bend tube is a type of tube that is bent into a U shape, typically used in heat exchangers and condensers to allow for the efficient transfer of heat between two fluids. The U bend tube is designed to withstand high temperatures and pressures, making it suitable for use in a variety of industrial applications. ASME SA213 TP316L stainless steel U bend tubes are manufactured to meet the requirements of the ASME SA213 specification, ensuring high quality and reliability. These tubes are commonly used in applications where corrosion resistance and high temperature performance are critical, such as in the chemical, petrochemical, and power generation industries. ASME SA213 TP316L stainless steel U bend heat exchanger tubes are a versatile and durable solution for a wide range of heat transfer applications, offering excellent performance and reliability in demanding operating conditions.
Characteristics:
1. Corrosion resistance: The high-quality stainless steel material used in ASME SA213 TP316L U bend heat exchanger tubes provides excellent corrosion resistance, making them ideal for use in a wide range of industrial applications.
2. High temperature resistance: ASME SA213 TP316L U bend heat exchanger tubes can withstand high temperatures, making them suitable for use in high-temperature applications such as heat exchangers.
3. High strength: The stainless steel material used in ASME SA213 TP316L U bend heat exchanger tubes offers high strength, providing durability and longevity in various industrial environments.
4. Easy to clean and maintain: Stainless steel is easy to clean and maintain, making ASME SA213 TP316L U bend heat exchanger tubes a cost-effective and low-maintenance option for heat exchangers.
5. Versatility: ASME SA213 TP316L U bend heat exchanger tubes can be used in a wide range of applications, including chemical processing, oil and gas, power generation, and more, making them a versatile option for various industries.
Equivalent Grades:
Grade | UNS | AFNOR | W.N. | JIS | GOST | EN | UNI | AISI |
SS316L | S31603 | 2 CND 17-12 | 1.4404 | SUS 316L | 03Ch17N14M2 | X2CrNiMo17-12-2 | CrNiMo 1712 | AISI 316L |
Chemical Composition:
Grade | TP316 | TP 316L |
UNS | S31600 | S31603 |
Carbon (C) Max. | 0.08 | 0.035 |
Manganese (Mn) Max. | 2.00 | 2.00 |
Phosphorous (P) Max. | 0.045 | 0.045 |
Sulphur (S) Max. | 0.030 | 0.030 |
Silicon (Si) Max. | 1.00 | 1.00 |
Chromium (Cr) | 16.0 – 18.0 | 16.0 – 18.0 |
Nickel (Ni) | 10.0 – 14.0 | 10.0 – 14.0 |
Molybdenum (Mo) | 2.0 – 3.0 | 2.0 – 3.0 |
Iron (Fe) | Remainder | Remainder |
Mechanical Properties:
Grades | UNS | Tensile Strength | Yield Strength | Elongation in 2 inch (min.) | Max. Hardness Rockwell | ||
Ksi | MPa | Ksi | MPa | % | HRB | ||
TP316 | S31600 | 75 | 515 | 30 | 205 | 35 | 90 |
TP316L | S31603 | 70 | 485 | 25 | 170 | 35 | - |
Applications:
Fertilizer Plants
Sugar Industry
Steel Plants
Oil And Gas Plants
Chemical Industries
Petrochemical Plants
Refineries
Power Plants
Renewable Energy Plants
Fired Furnaces
Fired Heaters
Petroleum Industries
Cemet Plants
Food Processing Plants
