Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | China |
| Brand Name: | YUHONG |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015 |
| Model Number: | ASME SA516 Gr.70 |
| Minimum Order Quantity: | 1 Piece |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Ply-wooden Case / Pallet |
| Delivery Time: | 15 - 60 Work Days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 500pcs Per Month |
| Standard: | ASTM A516, ASME SA516 | Garde: | Gr.70 |
|---|---|---|---|
| Materials: | Carbon Steel, Stainless Steel, Duplex Steel, Nickel Alloy, Etc. | Technology: | Hot Pressing, Cold Pressing |
| Diameter: | 89mm-10000mm | Thickness: | 2mm-300mm |
| Surface: | Sand Blasing, Pickling | Applications: | Heat Exchangers, Pressure Vessels, Boilers, Petroleum, Condensers, Etc. |
| High Light: | ASME SA516 Carbon Steel Elliptical Head,Pressure Vessel Carbon Steel Elliptical Head,Pressure Vessel Carbon Steel Dished Head |
||

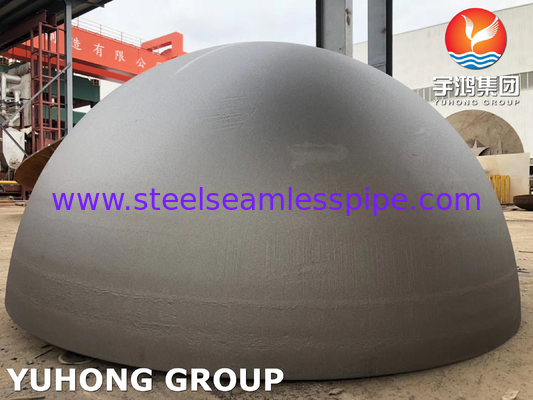

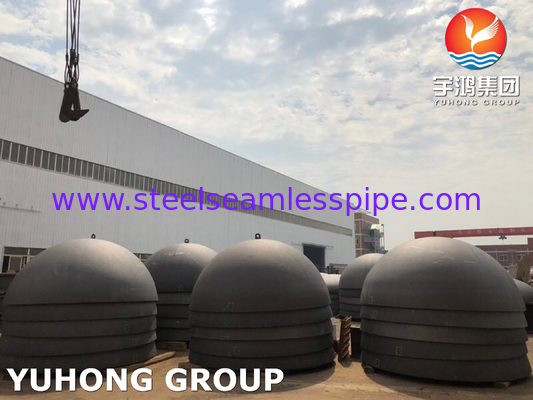

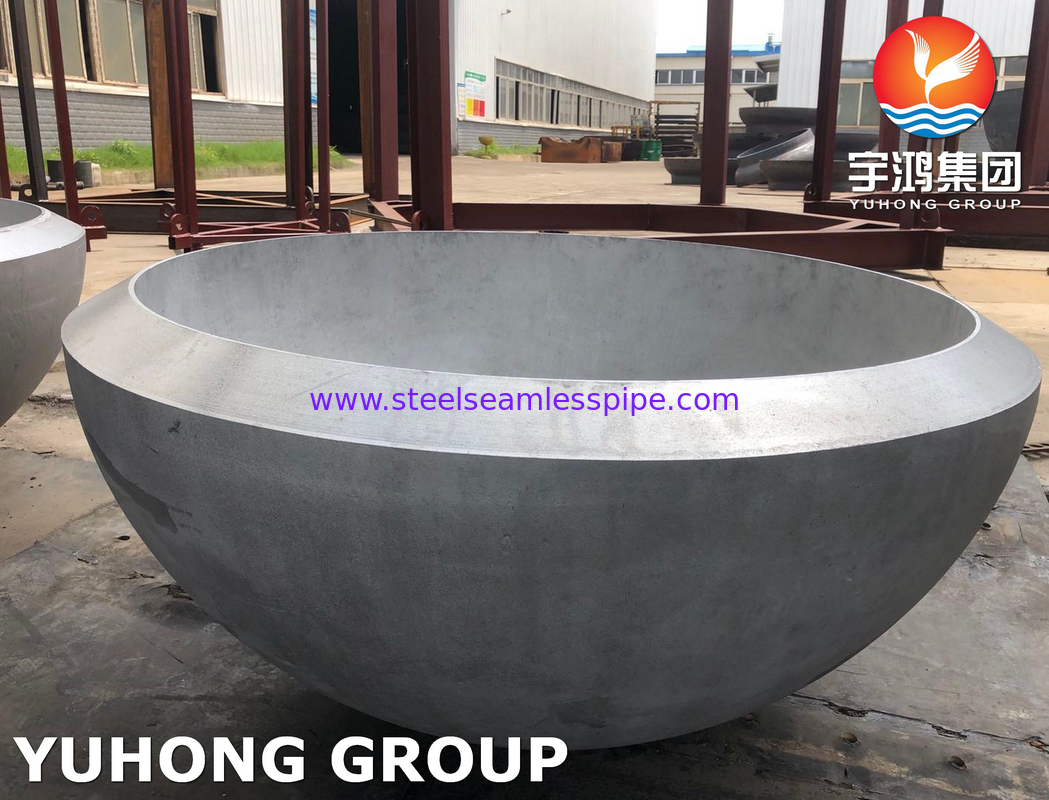

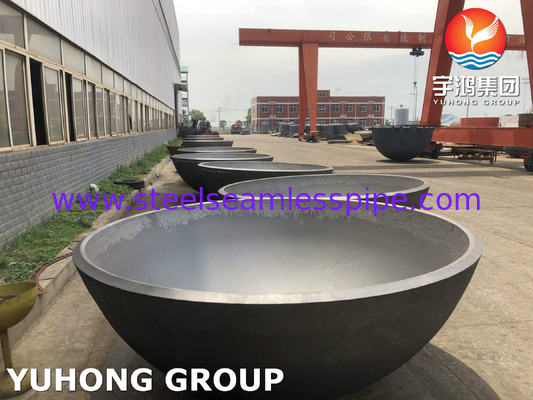

ASME SA516 Gr.70 Carbon Steel Elliptical Head, Dished Head, Shell Cover For Pressure Vessel
Elliptical head, also called ellipsoidal head, is a kind of head with elliptical shape. The ellipsoidal head is a head consisting of two parts: a rotating ellipsoidal sphere and a cylindrical straight section. Elliptical heads have widespread use in various industries, including petrochemical, oil and gas, and power generation. They are also suitable for pressure vessels such as boilers, storage tanks, and heat exchangers. ASTM A516 Gr70 Carbon Steel Elliptical head has high strength and good toughness, wear resistance, excellent fatigue resistance, good impact resistance, welding ease of processing and cold forming properties.
A dished head is a component of a vessel which is welded to a cylinder. According to different geometrical shapes, they can be divided into several kinds, such as spherical, ellipsoidal, disc, spherical crown, conical shell and flat cover, among which spherical, ellipsoidal, disc. In terms of welding, it is divided into butt weld vessel head and socket weld vessel head. They are used for various kinds of vessels and equipments, such as storage tanks, heat exchangers, towers, reactors, boilers and separation equipment. Elliptical heads (also known as ellipsoidal heads or elliptical dish ends) are typically made of carbon steel, stainless steel, alloy steel, copper, nickel alloy, etc.
| Product name | Elliptical Heads |
| Diameter | 90-5000 mm, Customized |
| Thickness | 2-200 mm |
| Reduction R | About 10% |
| Material | Carbon steel, stainless steel, copper, nickel alloy steel. |
| Application | Pressure vessel , heat exchanger, tanks |
| Technology | Cold pressing, Hot pressing |
| Packing | Wooden box and iron shelf or as per customer’s requirement |
| Surface treatment | Pickling, Sand blasting or as request |
Types Of Heads:
Hemispherical heads
Elliptical heads
Torispherical heads
Flat heads
Conical Heads
Spherical Head
Chemical Composition:
| C | Si | Mn | P | S | Al | Cr | Cu | Ni | Mo | Nb | Ti | V |
| 0.18 | 0.4 | 0.95-1.50 | 0.015 | 0.008 | 0.02 Min | 0.3 | 0.3 | 0.3 | 0.08 | 0.01 | 0.03 | 0.02 |
Mechanical Properties:
| Tensile strength(Ksi) | 70 -90 |
| Tensile strenghth(MPa) | 485 - 620 |
| Yield strength(Ksi) | 38 |
| Tensile strenghth(MPa) | 260 |
| Elongation in 200mm(min)% | 17 |
| Elongation in 50mm(min)% | 21 |
| Tickness(max)(mm) | 205 |
Applications:
Pressure Vessel Industry
Petroleum Industry
Chemical Industry
Pharmaceutical Industry
Sewage Treatment Industry
Food Industry
Nuclear Power Industry
Gas Processing Industry
Aerospace Industry
Construction Industry
Shipbuilding Industry
Steam Boiler Industry
